Commercial UPSs

Commercial and Industrial UPS Systems
Part Number: RPS-UPS-Razor

Razor Series 1000VA - 10kVA Parallel Redundant Tower/Rack Convertible UPS

The Razor Uninterrupted Power Supply is a rack/tower convertible UPS with a double conversion topology that provides pure sinewave output and surge protection for industrial, IT, data center, communication, and other mission-critical equipment. The Razor UPS boasts one of the highest output factors of 1.0 and the lowest Total Harmonics Distortion (THD), making it ideal for sensitive devices. The system also comes with hot-swappable batteries to produce a constant power supply and eliminate costly downtimes. Additionally, the Diagram LCD panel displays immediate and accurate data on the UPS battery and power conditions, which helps users detect potential problems. To extend total runtime, an external battery pack can be provided.

Main benefits:
  • Huge cost savings due to high efficiency and 1.0 power factor output.
  • Guaranteed zero downtime with hot-swappable batteries for constant operation and easy maintenance.
  • Ideal for sensitive equipment and devices due to low Total Harmonics Distortion (THD).
  • Early problem detection with user-friendly and multi-function Diagram LCD.
  • Maximum protection of valuable equipment with overload, surge, and short circuit protection.
Rack Mount Specifications

UPS
Model
PSR
1000
PSR
1500
PSR
2000
PSR
3000
PSR
2000
(2U+2U)
PSR
3000
(2U+2U)
PSR
6000
PSR
10000
Capacity (VA)
1000
1500
2000
3000
2000
3000
6000
10K
Capacity (Watts)
900
1350
1800
2700
1800
2700
5400
9K
Form
Tower or Rack
Phase
Single Phase
Energy Saving
Yes - ECO mode Efficiency > 94%

 INPUT
Voltage
100 / 110 / 115 / 120 / 127 / 208 / 220 / 230 / 240 Vac
208 / 220 / 230 / 240 Vac
Voltage Range 110 Vac
60 ~ 144 Vac < 25% Load
70 ~ 144 Vac < 50% Load
80 ~ 144 Vac < 75% Load
90 ~ 144 Vac < 100% Load
120 ~ 276 Vac < 25% Load
140 ~ 276 Vac < 50% Load
160 ~ 276 Vac < 75% Load
180 ~ 276 Vac < 100% Load
220 Vac
120 ~ 276 Vac < 25% Load
140 ~ 276 Vac < 50% Load
160 ~ 276 Vac < 75% Load
180 ~ 276 Vac < 100% Load
Frequency Range
50 / 60 Hz (Auto Sensing)
Power Factor
> 0.97
Cold Start
Yes

 OUTPUT
Rated Power Factor
0.9
Waveform
Pure Sine Wave
Voltage
100 / 110 / 115 / 120 / 127 / 208 / 220 / 230 / 240 Vac ± 2%
208 / 220 / 230 / 240 Vac ± 2%
Frequency
50 / 60 Hz ± 0.25 Hz
Transfer Time
0 ms
Harmonic Distortion
≦ 2.5% THD at Linear Load
≦ 3% THD at Linear Load
Crest Factor
3 : 1
EPO Function
Option

 PROTECTION
Overload Line Mode
105% - 120% for 30 seconds
121% - 150% for 10 seconds
Battery Mode
101% - 109% for 10 seconds
110% - 120% for 3 seconds
Surge Protection
IEC 61000-4-5 Level 3
Bypass
Internal Bypass(Automatic and Manual)
Short Circuit Protection
UPS Output Cut Off Immediately

 BATTERY
Model
PSB-1000
PSB-1500
PSB
2000
PSB
3000
PSB
2000
(2U+2U)
PSB
3000
(2U+2U)
PSB-6000
PSB-10000
Type
12V 7Ah
12V 7Ah
12V 7Ah
12V 9Ah
12V 7Ah
12V 7Ah
12V 7Ah
12V 9Ah
Quantity
3
4
6
6
6
8
20
20
Sealed, Maintenance Free
YES
Typical Recharge Time
4 Hr to 90%
External Battery Module
Option
External Battery Connector
Option

 MANAGEMENT
Indicator
LCD Control Panel
Communication Port
RS232, USB(B-type)
SNMP Slot
Option
Audible Alarms
YES

 PHYSICAL
Power Module
Dimensions
(WxDxH) (In)
16.9 x 16.8 x 3.3
16.9 x 19.9 x 3.3
16.9 x 25 x 3.3
16.9 x 16.8 x 3.3
16.9 x 23.5 x 5.2 (3U)
16.9 x 25.9 x 5.2
Weights
(Lbs)
36
39.5
65.7
72
22.3
44.1
55.1
Shipping Dimensions
(WxDxH)(In)
21.5 x 21.7 x 8.1
21.7 x 24.5 x 8.7
21.7 x 29.5 x 8.7
21.5 x 21.7 x 8.1
22.1 x 29.2 x 10.8
22.3 x 31.7 x 8.2
Weights
(Kgs)
42.8
46.3
75
80.7
29.1
53
69
* While 208V output, capacity will derated to 90%
* Specifications are subject to change without further notice
* Specifications are for reference, actual information should be based on real product


Tower Specifications

 UPS
Model
PST-1000
PST-1500
PST-2000
PST-3000
PST-6000
PST-10000
Capacity (VA)
1000
1500
2000
3000
6000
10000
Capacity (Watts)
900
1350
1800
2700
5400
9000
Form
Tower
Phase
Single Phase
Energy Saving
Yes - ECO mode Efficiency > 94%

 INPUT
Voltage
100 / 110 / 115 / 120 / 127 or 208 / 220 / 230 / 240 Vac
208 / 220 / 230 / 240 Vac
Voltage Range 110 Vac
60 ~ 144 Vac < 25% Load
70 ~ 144 Vac < 50% Load
80 ~ 144 Vac < 75% Load
90 ~ 144 Vac < 100% Load
120 ~ 276 Vac < 25% Load
140 ~ 276 Vac < 50% Load
160 ~ 276 Vac < 75% Load
180 ~ 276 Vac < 100% Load
220 Vac
120 ~ 276 Vac < 25% Load
140 ~ 276 Vac < 50% Load
160 ~ 276 Vac < 75% Load
180 ~ 276 Vac < 100% Load
Frequency Range
50 / 60 Hz (Auto Sensing)
Power Factor
> 0.97
Cold Start
Yes

 OUTPUT
Rated Power Factor
0.9
Waveform
Pure Sine Wave
Voltage
100 / 110 / 115 / 120 / 127 or 208 / 220 / 230 / 240 Vac ± 2%
208 / 220 / 230 / 240 Vac ± 2%
Frequency
50 / 60 Hz ± 0.25 Hz
Transfer Time
0 ms
Harmonic Distortion
≦ 2.5% THD at Linear Load
≦ 3% THD at Linear Load
Crest Factor
3 : 1
EPO Function
Yes

 PROTECTION
Overload Line Mode
105% - 120% for 30 seconds
121% - 150% for 10 seconds
Battery Mode
101% - 109% for 10 seconds
110% - 120% for 3 seconds
Surge Protection
IEC 61000-4-5 Level 3
Bypass
Internal Bypass(Automatic and Manual)
Short Circuit Protection
UPS Output Cut Off Immediately

 BATTERY
Model
PSB-1000
PSB-1500
PSB-2000
PSB-3000
PSB-6000
PSB-10K
Type
12V 7Ah
12V 7Ah
12V 7Ah
12V 7Ah
12V 7Ah
12V 9Ah
Quantity
3
4
6
8
20
20
Sealed, Maintenance Free
YES
Typical Recharge Time
4 Hr to 90%
External Battery Module
Option
External Battery Connector
Option

 MANAGEMENT
Indicator
LCD Control Panel
Communication Port
RS232, USB(B-type)
SNMP Slot
Option
Audible Alarms
YES

 PHYSICAL
Power Module
Dimensions
(WxDxH) (In)
6 x 16.6 x 9.3
6 x 19.7 x 9.5
7.9 x 16.6 x 14.1
10.2 x 23.3 x 22.5
10.2 x 27.2 x 23.1
Weights
(Lbs)
33.5
43
64
66.4
190
213
Shipping Dimensions
(WxDxH)(In)
11.1 x 21.5 x 14
11.1 x 24.7 x 14
13.4 x 20.7 x 19.1
16.4 x 30 x 31.5
16.1 x 34 x 31.5
Weights
(Lbs)
38.4
47
70
72.5
206
247
* While 208V output, capacity will derated to 90%
* Specifications are subject to change without further notice
* Specifications are for reference, actual information should be based on real product
All UPSs, standard or custom, come with a full 2-year warranty on parts and labor.  Raptor Power will, at its discretion, repair or replace any product found to be defective.  Phone support is included during the 2-year warranty period.
Part Number: RPS-UPS-Vanpow

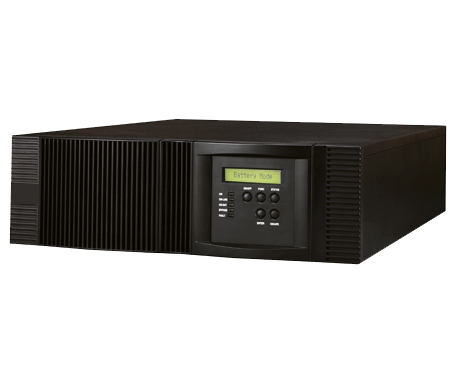

Vanpow Series 1kVA - 10kVA Rack & Tower On-Line Uninterrupted Power Supply (UPS)

The Vanpow Series is a one-phase, double-conversion, On-Line Uninterrupted Power Supply (UPs) designed to address unplanned downtime and high costs in the back office, server rooms, and data center environments. With a power factor rating of 0.9, an attached power factor correction (PFC) system, and a double-conversion topology, the Vanpow series UPS provides a pure, efficient, and continuous sinewave output voltage without any fluctuations. The system is available in rack-tower design and capacities up to 10K VA to meet most business, IT, and telecommunication equipment needs. For additional runtime, external battery packs can be supplied.

Main benefits:
  • Cost savings with Vanpow's high efficiency and power factor rating.
  • Proper equipment operation with pure sinewave output with double conversion topology.
  • Zero downtime with hot-swappable batteries for maintenance.
  • Maximum runtime with internal batteries combined with an external battery pack.
Rack Mount Specifications

UPS
Model
PSR
1000
PSR
1500
PSR
2000
PSR
3000
PSR
2000
(2U+2U)
PSR
3000
(2U+2U)
PSR
6000
PSR
10000
Capacity (VA)
1000
1500
2000
3000
2000
3000
6000
10K
Capacity (Watts)
900
1350
1800
2700
1800
2700
5400
9K
Form
Tower or Rack
Phase
Single Phase
Energy Saving
Yes - ECO mode Efficiency > 94%

 INPUT
Voltage
100 / 110 / 115 / 120 / 127 / 208 / 220 / 230 / 240 Vac
208 / 220 / 230 / 240 Vac
Voltage Range 110 Vac
60 ~ 144 Vac < 25% Load
70 ~ 144 Vac < 50% Load
80 ~ 144 Vac < 75% Load
90 ~ 144 Vac < 100% Load
120 ~ 276 Vac < 25% Load
140 ~ 276 Vac < 50% Load
160 ~ 276 Vac < 75% Load
180 ~ 276 Vac < 100% Load
220 Vac
120 ~ 276 Vac < 25% Load
140 ~ 276 Vac < 50% Load
160 ~ 276 Vac < 75% Load
180 ~ 276 Vac < 100% Load
Frequency Range
50 / 60 Hz (Auto Sensing)
Power Factor
> 0.97
Cold Start
Yes

 OUTPUT
Rated Power Factor
0.9
Waveform
Pure Sine Wave
Voltage
100 / 110 / 115 / 120 / 127 / 208 / 220 / 230 / 240 Vac ± 2%
208 / 220 / 230 / 240 Vac ± 2%
Frequency
50 / 60 Hz ± 0.25 Hz
Transfer Time
0 ms
Harmonic Distortion
≦ 2.5% THD at Linear Load
≦ 3% THD at Linear Load
Crest Factor
3 : 1
EPO Function
Option

 PROTECTION
Overload Line Mode
105% - 120% for 30 seconds
121% - 150% for 10 seconds
Battery Mode
101% - 109% for 10 seconds
110% - 120% for 3 seconds
Surge Protection
IEC 61000-4-5 Level 3
Bypass
Internal Bypass(Automatic and Manual)
Short Circuit Protection
UPS Output Cut Off Immediately

 BATTERY
Model
PSB-1000
PSB-1500
PSB
2000
PSB
3000
PSB
2000
(2U+2U)
PSB
3000
(2U+2U)
PSB-6000
PSB-10000
Type
12V 7Ah
12V 7Ah
12V 7Ah
12V 9Ah
12V 7Ah
12V 7Ah
12V 7Ah
12V 9Ah
Quantity
3
4
6
6
6
8
20
20
Sealed, Maintenance Free
YES
Typical Recharge Time
4 Hr to 90%
External Battery Module
Option
External Battery Connector
Option

 MANAGEMENT
Indicator
LCD Control Panel
Communication Port
RS232, USB(B-type)
SNMP Slot
Option
Audible Alarms
YES

 PHYSICAL
Power Module
Dimensions
(WxDxH) (In)
16.9 x 16.8 x 3.3
16.9 x 19.9 x 3.3
16.9 x 25 x 3.3
16.9 x 16.8 x 3.3
16.9 x 23.5 x 5.2 (3U)
16.9 x 25.9 x 5.2
Weights
(Lbs)
36
39.5
65.7
72
22.3
44.1
55.1
Shipping Dimensions
(WxDxH)(In)
21.5 x 21.7 x 8.1
21.7 x 24.5 x 8.7
21.7 x 29.5 x 8.7
21.5 x 21.7 x 8.1
22.1 x 29.2 x 10.8
22.3 x 31.7 x 8.2
Weights
(Kgs)
42.8
46.3
75
80.7
29.1
53
69
* While 208V output, capacity will derated to 90%
* Specifications are subject to change without further notice
* Specifications are for reference, actual information should be based on real product


Tower Specifications

 UPS
Model
PST-1000
PST-1500
PST-2000
PST-3000
PST-6000
PST-10000
Capacity (VA)
1000
1500
2000
3000
6000
10000
Capacity (Watts)
900
1350
1800
2700
5400
9000
Form
Tower
Phase
Single Phase
Energy Saving
Yes - ECO mode Efficiency > 94%

 INPUT
Voltage
100 / 110 / 115 / 120 / 127 or 208 / 220 / 230 / 240 Vac
208 / 220 / 230 / 240 Vac
Voltage Range 110 Vac
60 ~ 144 Vac < 25% Load
70 ~ 144 Vac < 50% Load
80 ~ 144 Vac < 75% Load
90 ~ 144 Vac < 100% Load
120 ~ 276 Vac < 25% Load
140 ~ 276 Vac < 50% Load
160 ~ 276 Vac < 75% Load
180 ~ 276 Vac < 100% Load
220 Vac
120 ~ 276 Vac < 25% Load
140 ~ 276 Vac < 50% Load
160 ~ 276 Vac < 75% Load
180 ~ 276 Vac < 100% Load
Frequency Range
50 / 60 Hz (Auto Sensing)
Power Factor
> 0.97
Cold Start
Yes

 OUTPUT
Rated Power Factor
0.9
Waveform
Pure Sine Wave
Voltage
100 / 110 / 115 / 120 / 127 or 208 / 220 / 230 / 240 Vac ± 2%
208 / 220 / 230 / 240 Vac ± 2%
Frequency
50 / 60 Hz ± 0.25 Hz
Transfer Time
0 ms
Harmonic Distortion
≦ 2.5% THD at Linear Load
≦ 3% THD at Linear Load
Crest Factor
3 : 1
EPO Function
Yes

 PROTECTION
Overload Line Mode
105% - 120% for 30 seconds
121% - 150% for 10 seconds
Battery Mode
101% - 109% for 10 seconds
110% - 120% for 3 seconds
Surge Protection
IEC 61000-4-5 Level 3
Bypass
Internal Bypass(Automatic and Manual)
Short Circuit Protection
UPS Output Cut Off Immediately

 BATTERY
Model
PSB-1000
PSB-1500
PSB-2000
PSB-3000
PSB-6000
PSB-10K
Type
12V 7Ah
12V 7Ah
12V 7Ah
12V 7Ah
12V 7Ah
12V 9Ah
Quantity
3
4
6
8
20
20
Sealed, Maintenance Free
YES
Typical Recharge Time
4 Hr to 90%
External Battery Module
Option
External Battery Connector
Option

 MANAGEMENT
Indicator
LCD Control Panel
Communication Port
RS232, USB(B-type)
SNMP Slot
Option
Audible Alarms
YES

 PHYSICAL
Power Module
Dimensions
(WxDxH) (In)
6 x 16.6 x 9.3
6 x 19.7 x 9.5
7.9 x 16.6 x 14.1
10.2 x 23.3 x 22.5
10.2 x 27.2 x 23.1
Weights
(Lbs)
33.5
43
64
66.4
190
213
Shipping Dimensions
(WxDxH)(In)
11.1 x 21.5 x 14
11.1 x 24.7 x 14
13.4 x 20.7 x 19.1
16.4 x 30 x 31.5
16.1 x 34 x 31.5
Weights
(Lbs)
38.4
47
70
72.5
206
247
* While 208V output, capacity will derated to 90%
* Specifications are subject to change without further notice
* Specifications are for reference, actual information should be based on real product
All UPSs, standard or custom, come with a full 2-year warranty on parts and labor.  Raptor Power will, at its discretion, repair or replace any product found to be defective.  Phone support is included during the 2-year warranty period.
Part Number: RPS-UPS-Custom

Need a Custom MIL SPEC or commercial UPS?  We have you covered!  Rugged, MIL certified UPSs for shipboard or land use in any power configuration from 1000VA to 100kVA.
All UPSs, standard or custom, come with a full 2-year warranty on parts and labor.  Raptor Power will, at its discretion, repair or replace any product found to be defective.  Phone support is included during the 2-year warranty period.
Part Number: RPS-UPS-Fortress

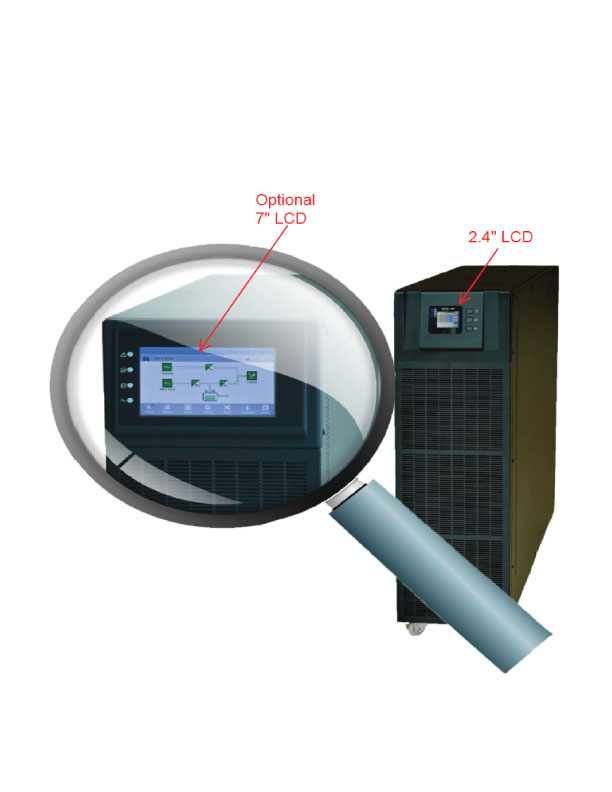

Fortress Series 10 - 20kVA Tower Uninterrupted Power Supply UPS

The Fortress Series Uninterrupted Power Supply is a true online, 3 phase tower UPS with double-conversion topology manufactured to handle server rooms, industrial equipment, telecommunications, banks, and various other mission-critical electronic devices. It boasts an excellent multifunction control panel that comes in 2.4” or 7” options with a clear LCD to monitor status and intercept alerts. The Fortress Series Ups also features full parallel redundancy to ensure high availability and lower maintenance costs. With one of the lowest Input Distortion and a leading power factor of 1.0, the system is perfect for sensitive devices. For backup and continuous runtime on shutdowns, the Fortress series comes with a fully programmable voltage and built-in battery pack that supports 3-level intelligent charging.

Main Benefits
  • Notable cost savings with leading power factor and efficiency.
  • Ensuring the proper function of sensitive devices due to low input distortion and power factor
  • Timely problem detection and status monitoring with the versatile & multifunctional LCD monitor.
  • Zero downtimes with a programmable built-in battery pack that supports 3-level intelligent charging.
  • Complete versatility with versions up to 20kVA plus a wide input voltage and frequency.
All UPSs, standard or custom, come with a full 2-year warranty on parts and labor.  Raptor Power will, at its discretion, repair or replace any product found to be defective.  Phone support is included during the 2-year warranty period.
Part Number: RPS-UPS-Raptor X Modules 10kVA - 50kVA

Raptor X Modules Scalable, 3 Phase, 10 - 50kVA, Rack, Uninterrupted Power Supply UPS

The Raptor X Modules 3 phase, 10kVA - 50kVA is truly modular and total reliability Uninterrupted Power Supply (UPs) system made for data centers, shipboard applications, and other business-critical environments. Its design is compatible with 19" standard rack cabinets, which use less valuable floor space and offer a lower cost of installation compared to other scalable systems. It also provides continuous runtime and easy maintenance with hot-swappable modules. The Raptor X Modules UPS is perfect for facilities with sensitive and mission-critical equipment with its online double-conversion topology and low Total Harmonics Distortion of less than 1%. When it comes to storage, the system comes with intelligent charging & discharging control, plus a self-aging mode to extend battery life. Additionally, the UPS boasts an enterprise-level management and monitoring system with a comprehensive 7" LCD touch screen.

Main benefits:
  • Adaptability to growing needs due to the scalable nature of the system up to 50kVA.
  • Lower installation costs and space use with a compact rack design, fully compatible with 9" standard rack cabinets.
  • Proper function and protection of mission-critical equipment with one of the lowest Total Harmonics Distortion and online double conversion topology.
  • Continuous runtime and easier maintenance with hot-swappable modules.
All UPSs, standard or custom, come with a full 2-year warranty on parts and labor.  Raptor Power will, at its discretion, repair or replace any product found to be defective.  Phone support is included during the 2-year warranty period.
Part Number: RPS-UPS-Raptor X Modules 60kVA - 900kVA

Raptor X Modules Scalable, 3 Phase, 60 - 900kVA, Rack, Uninterrupted Power Supply UPS

The Raptor X Modules 3 phase, 60 - 900kVA is a scalable and reliable Uninterrupted Power Supply (UPs) system manufactured to remove single points of failure and add redundancy. The rack design provides maximum power in a compact enclosure that saves up precious floor space and facilitates maintenance. The Raptor X Modules comes with hot-swappable modules and batteries to easily meet growing loads and increase runtime. With a low THD of 1.5% and true online double conversion topology, mission-critical devices will be protected and operate optimally. The Raptor X Modules UPS boasts enterprise-level system management software that comes with an 11" LCD touch screen and waveform recording to analyze UPS faults.

Main benefits:
  • Highly scalable and adaptable to answer any power needs.
  • Low installation costs and floor space use with a compact rack design.
  • Uninterrupted runtime and effortless maintenance with hot-swappable modules and batteries.
Maximum control, monitoring, and fault detection with versatile system management software and 11" touch LCD screen.
All UPSs, standard or custom, come with a full 2-year warranty on parts and labor.  Raptor Power will, at its discretion, repair or replace any product found to be defective.  Phone support is included during the 2-year warranty period.
Mission-critical
custom and standard
PDUs and UPS systems
© 2024, Raptor Power Systems

Contact

Toll Free: (800) 258-0129
info@raptorpowersystems.com

Sales / Engineering
3611 N Staley Road STE D
Champaign, IL 61853

Manufacturing
607 Industrial Way W
Eatontown, NJ 07724

Search
