Military PDUs

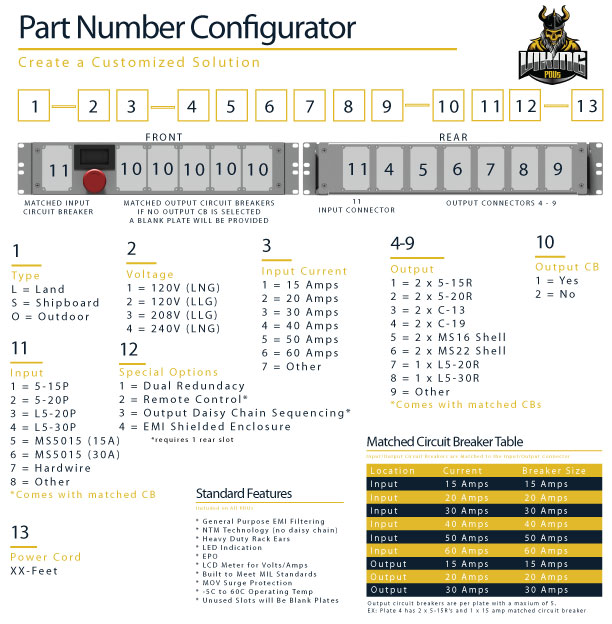

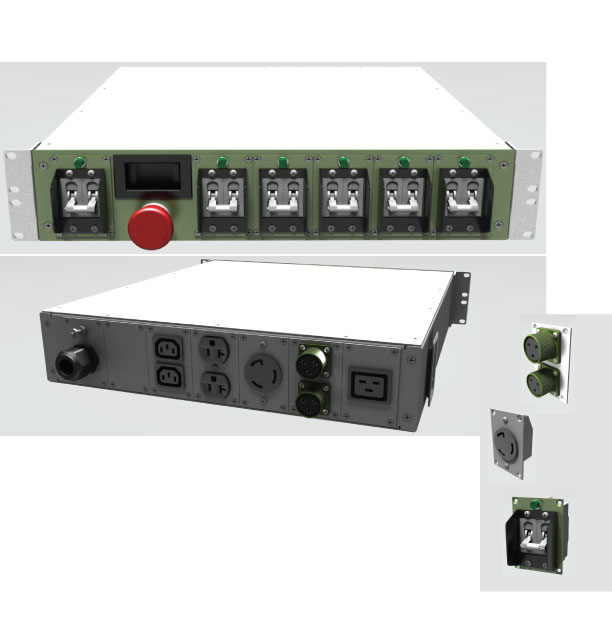

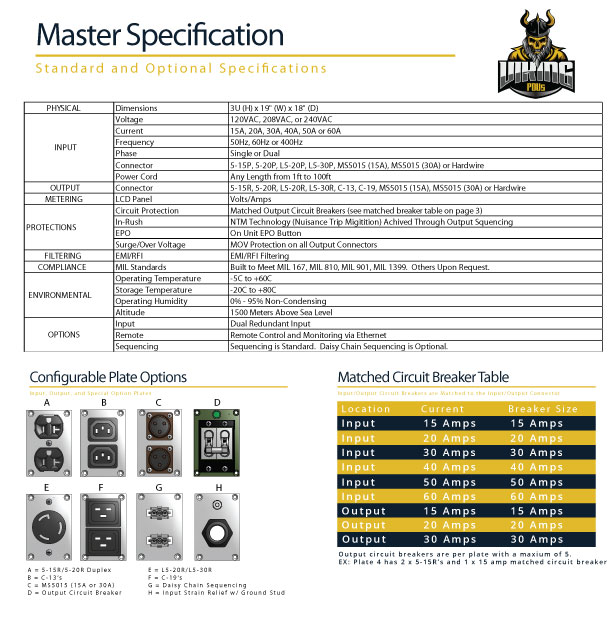

Configurable MIL SPEC Viking PDU
PDUs are built to order. Lead times are based on production volume. Typical lead times are below, expedited orders are available, contact us for details.
MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO
COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days
CRYPTO MINING PDUs - 20 Business Days
Have a question about the current lead time or expedited service for a unit? Use our live chat to speak with a production representative.
Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring. Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.
Raptor Connect can be optionally integrated into almost all of Raptor's products. If you do not see an option to select Raptor Connect for a PDU, contact us for details.
MIL COTS PDUs

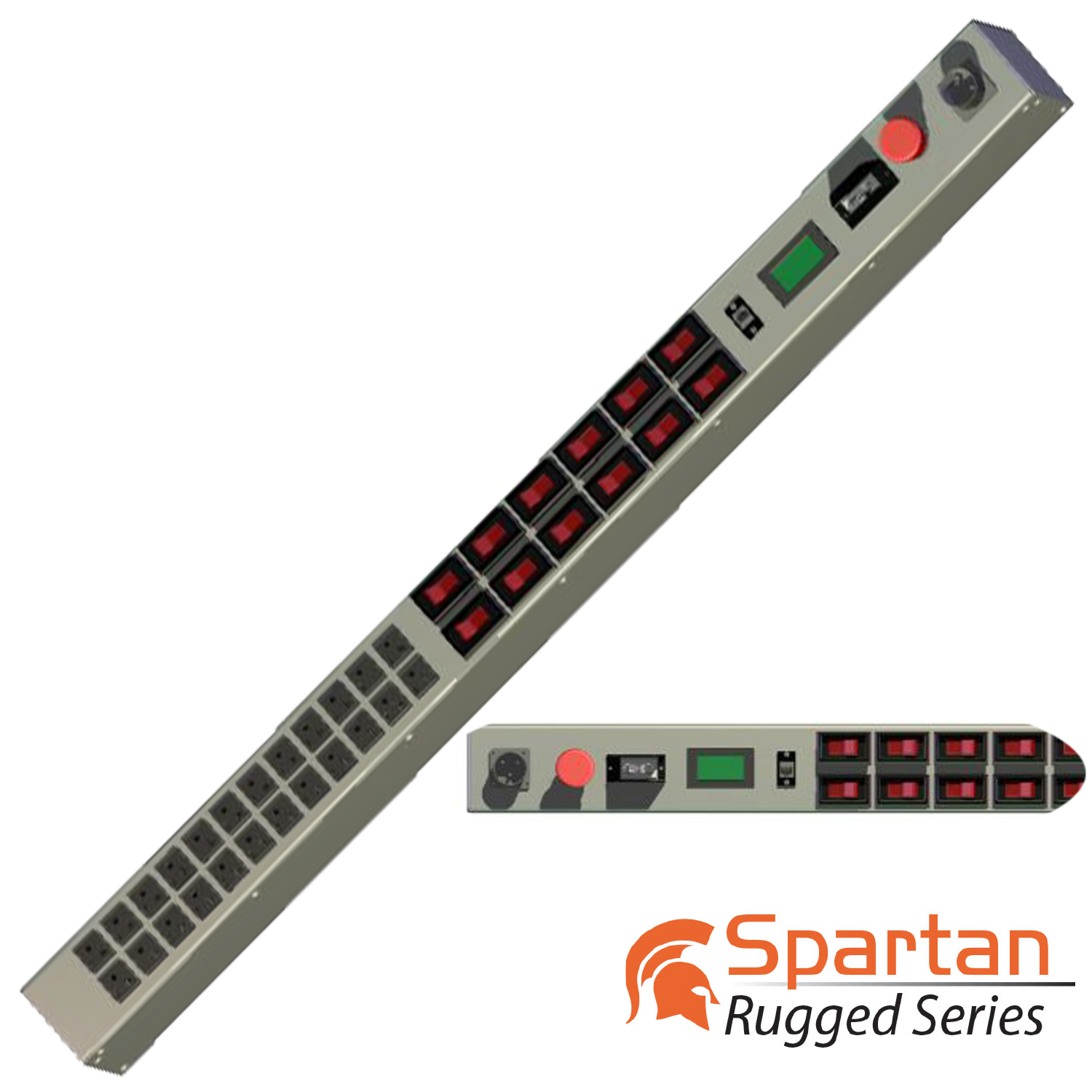

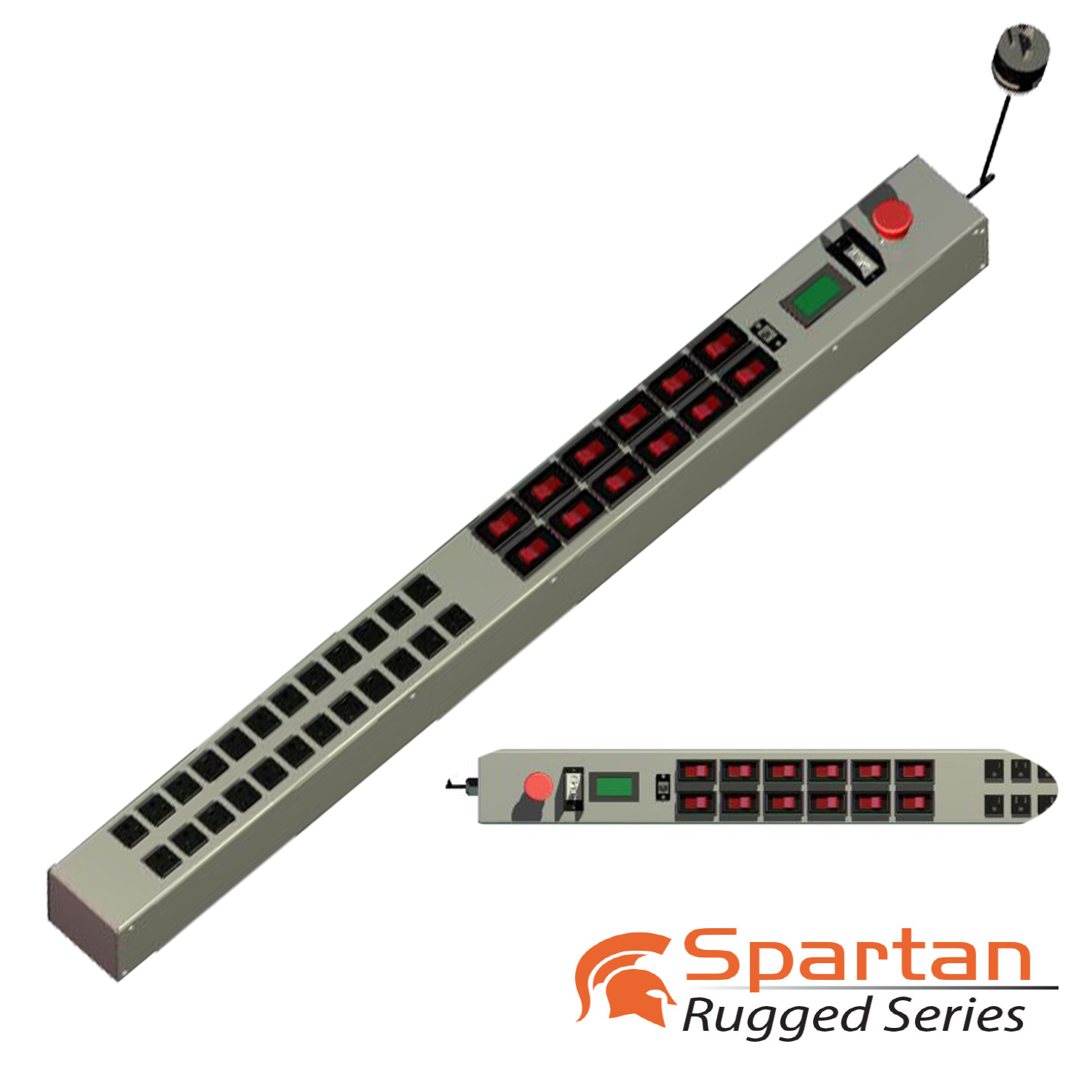

This rugged 30A, 0U, vertical mount, MIL SPEC PDU designed for land-based applications has 24 x 5-20R outlets, an L6-30P inlet with a 6ft power cord, switched breakered outputs, an EMI protected enclosure and a remote EPO port. Optional remote control & monitoring and MIL compliance testing are available.
The unit is built to meet MIL STD 810 (Grade B), MIL 1399, and MIL STD 901D (Grade B). Grade A or other MIL standards available upon request.
| ENCLOSURE SPECIFICATIONS | |
| EMI Rated Enclosure | Yes |
| Enclosure Material | Aluminium/Steel |
| Enclosure Size | 0U x 48" |
| Enclosure Style | 19in Rack Mount |
| INPUT SPECIFICATIONS | |
| Frequency | 50/60Hz |
| Input Breaker UL Compliance | UL 489 |
| Input Circuit Protection | Switched 30 Amp Circuit Breaker |
| Input Voltage | 120VAC Single Phase; 208VAC Single Phase; 240VAC Single Phase |
| Lightning Protection (MOV) | No |
| Phase | Dual Phase (line, line, ground) |
| Power Cord | 6ft SOOW |
| Total Current | 30 Amps |
| Input Connector | L6-30P |
| OUTPUT SPECIFICATIONS | |
| Output Banking Scheme | 2 Outlets per Circuit Breaker |
| Output Breaker UL Compliance | UL 1077 |
| Output Circuit Protection | 12 x 15 Amp Switched Circuit Breakers |
| Output Connectors | 24 x MS3102E16-10S |
| Output Phase | Dual Phase (line, line, ground) |
| Output Voltage | Synced to Input |
| PRODUCT DETAILS | |
| Compliance | ISO 9001:2016 Quality Controlled; Built to Meet MIL 810; Built to Meet MIL 1399; Built to Meet 901D Grade B |
| Operating Temperature | 0C - 60C |
| TAA Compliant | Yes |
PDUs are built to order. Lead times are based on production volume. Typical lead times are below, expedited orders are available, contact us for details.
MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO
COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days
CRYPTO MINING PDUs - 20 Business Days
Have a question about the current lead time or expedited service for a unit? Use our live chat to speak with a production representative.
Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring. Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.
Raptor Connect can be optionally integrated into almost all of Raptor's products. If you do not see an option to select Raptor Connect for a PDU, contact us for details.
This 100A, 0U PDU has 48 x C-19 outlets, a hardwire input, and switched outputs. Optional remote control & monitoring, and compliance testing are available.
| ENCLOSURE SPECIFICATIONS | |
| EMI Rated Enclosure | No |
| Enclosure Material | Aluminium/Steel |
| Enclosure Size | 0U x 72" |
| Enclosure Style | 0U Vertical Mount |
| INPUT SPECIFICATIONS | |
| Frequency | 60Hz |
| Input Breaker UL Compliance | - |
| Input Circuit Protection | None |
| Input Voltage | 120VAC/208VAC Three Phase; 240/415VCAC Three Phase |
| Lightning Protection (MOV) | No |
| Phase | Three Phase WYE (line, line, line, neutral, ground) |
| Power Cord | N/A |
| Total Current | 100 Amps (Three Phase, 300A of Single Phase Load) |
| Input Connector | Hardwire |
| OUTPUT SPECIFICATIONS | |
| Output Banking Scheme | 2 Outlets per Circuit Breaker |
| Output Breaker UL Compliance | UL 1077 |
| Output Circuit Protection | 24 x 30 Amp Switched Circuit Breakers |
| Output Connectors | 48 x C-19 |
| Output Phase | Single Phase (line, neutral, ground) |
| Output Voltage | Synced to Input |
| PRODUCT DETAILS | |
| Operating Temperature | 0C - 60C |
| TAA Compliant | - |
| Circuit Protection | ISO 9001:2016 Quality Controlled; Built to Meet UL 60950-1 |
PDUs are built to order. Lead times are based on production volume. Typical lead times are below, expedited orders are available, contact us for details.
MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO
COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days
CRYPTO MINING PDUs - 20 Business Days
Have a question about the current lead time or expedited service for a unit? Use our live chat to speak with a production representative.
Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring. Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.
Raptor Connect can be optionally integrated into almost all of Raptor's products. If you do not see an option to select Raptor Connect for a PDU, contact us for details.
| ENCLOSURE SPECIFICATIONS | |
| EMI Rated Enclosure | No |
| Enclosure Material | Aluminium/Steel |
| Enclosure Size | 0U x 72" |
| Enclosure Style | 0U Vertical Mount |
| INPUT SPECIFICATIONS | |
| Frequency | 60Hz |
| Input Breaker UL Compliance | - |
| Input Circuit Protection | None |
| Input Voltage | 120VAC/208VAC Three Phase; 240/415VCAC Three Phase |
| Lightning Protection (MOV) | No |
| Phase | Three Phase WYE (line, line, line, neutral, ground) |
| Power Cord | N/A |
| Total Current | 100 Amps (Three Phase, 300A of Single Phase Load) |
| Input Connector | Hardwire |
| OUTPUT SPECIFICATIONS | |
| Output Banking Scheme | 2 Outlets per Circuit Breaker |
| Output Breaker UL Compliance | UL 1077 |
| Output Circuit Protection | 24 x 30 Amp Switched Circuit Breakers |
| Output Connectors | 48 x C-19 |
| Output Phase | Single Phase (line, neutral, ground) |
| Output Voltage | Synced to Input |
| PRODUCT DETAILS | |
| Operating Temperature | 0C - 60C |
| TAA Compliant | - |
| Circuit Protection | ISO 9001:2016 Quality Controlled; Built to Meet UL 60950-1 |
PDUs are built to order. Lead times are based on production volume. Typical lead times are below, expedited orders are available, contact us for details.
MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO
COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days
CRYPTO MINING PDUs - 20 Business Days
Have a question about the current lead time or expedited service for a unit? Use our live chat to speak with a production representative.
Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring. Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.
Raptor Connect can be optionally integrated into almost all of Raptor's products. If you do not see an option to select Raptor Connect for a PDU, contact us for details.

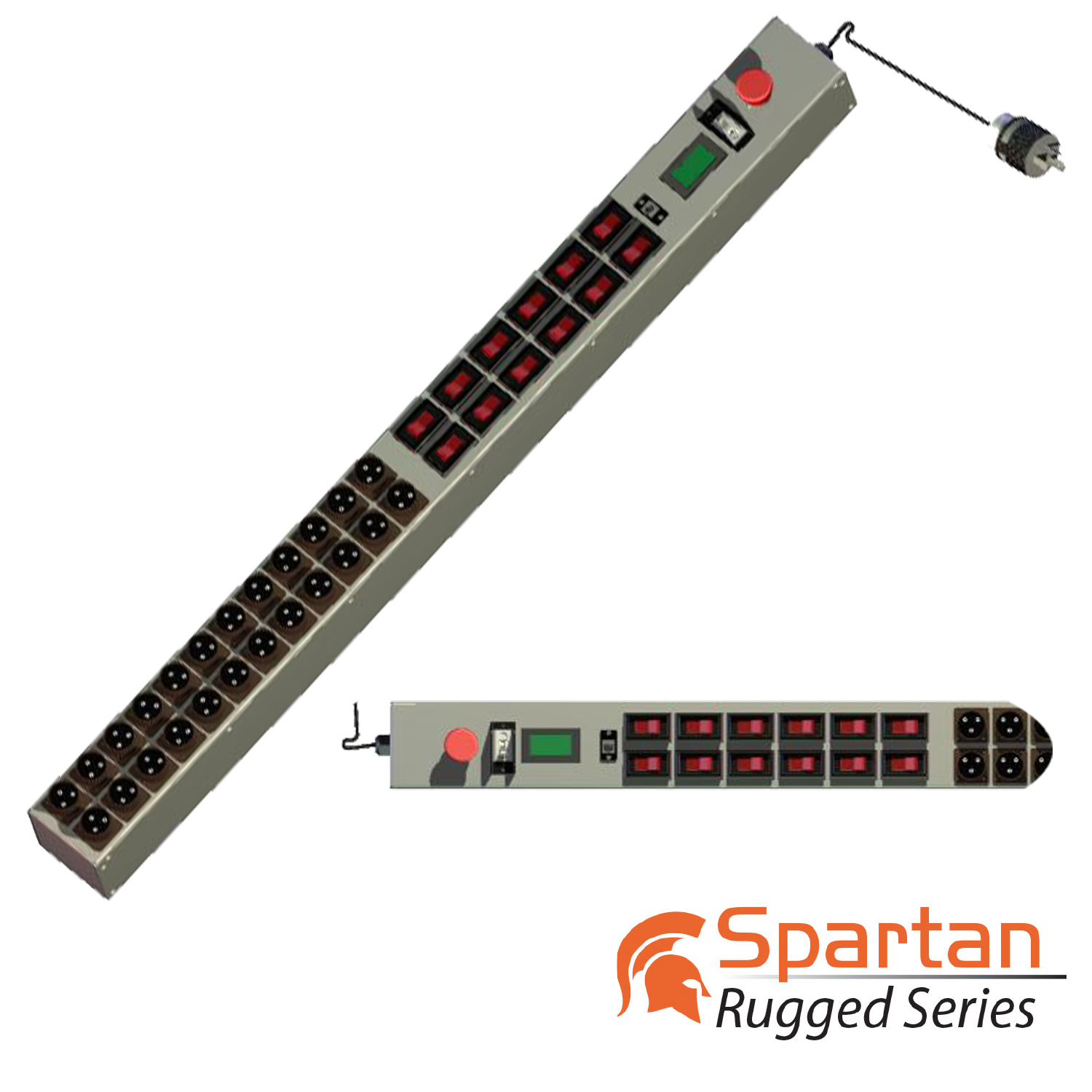

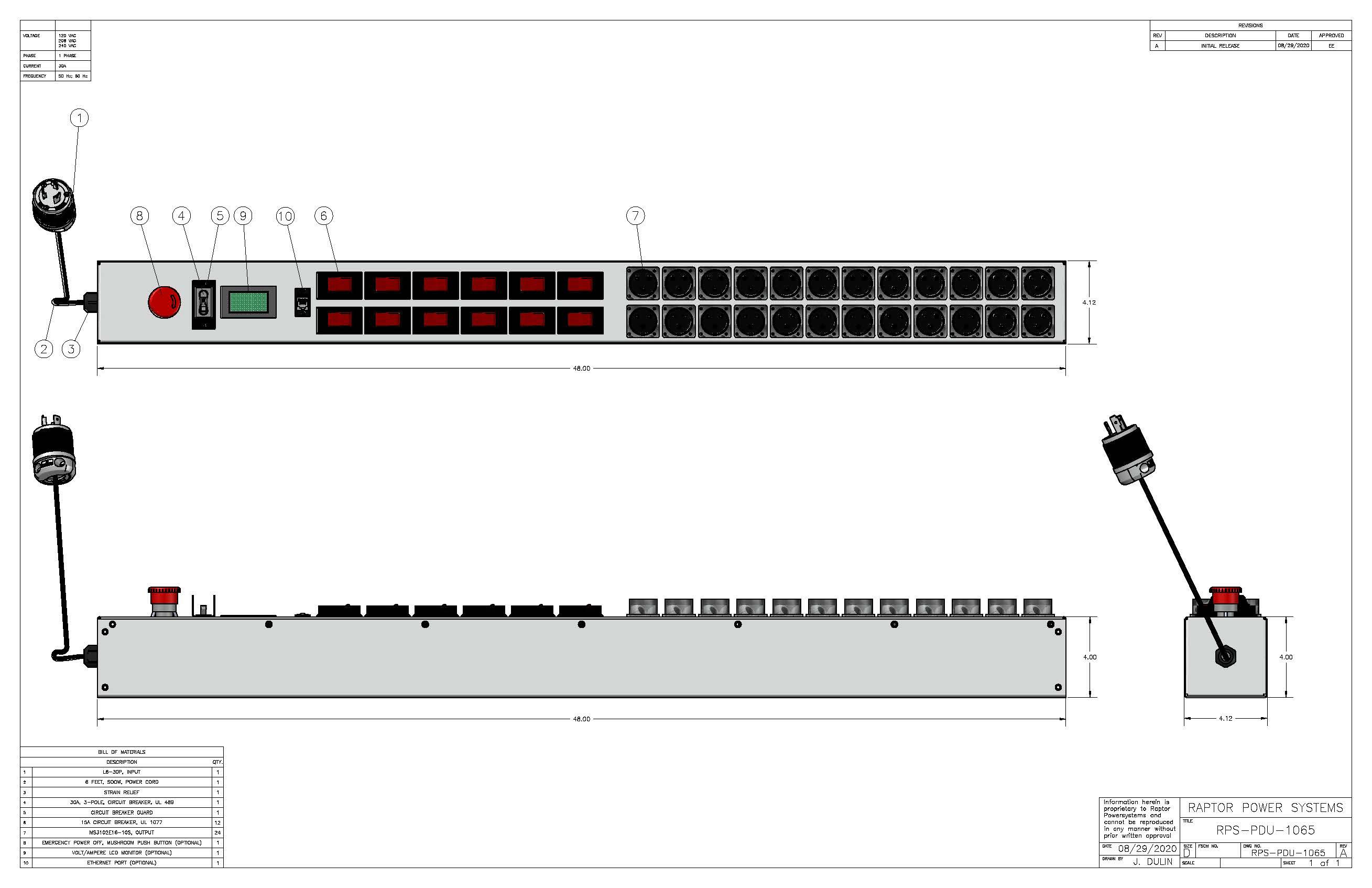

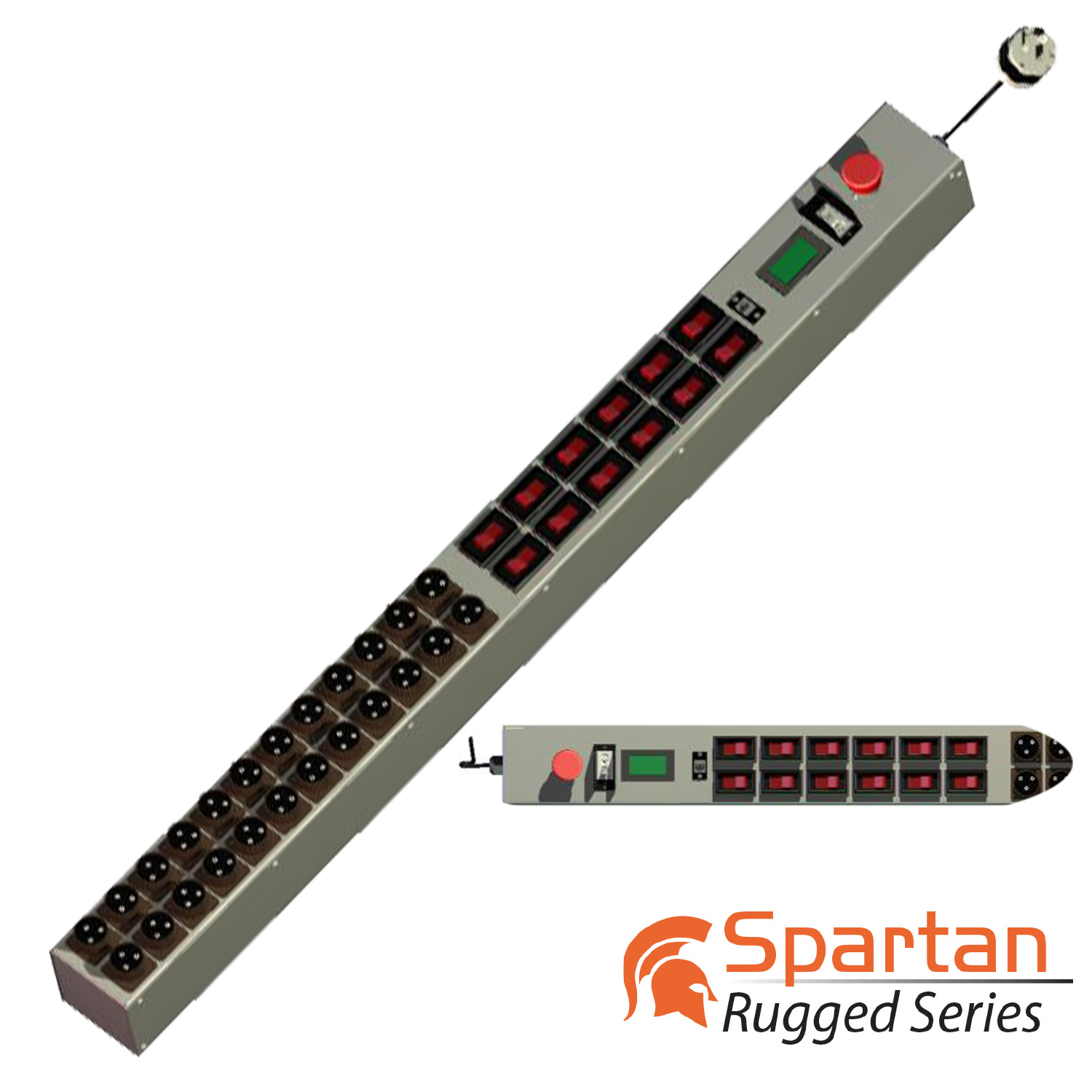

This rugged 30A, 0U, vertical mount, MIL SPEC PDU designed for land-based applications has 24 x MS3102E16-10S circular MIL connectors, an MS3012E22-2P inlet with a 6ft power cord, switched breakered outputs, an EMI protected enclosure and a remote EPO port. Optional remote control & monitoring and MIL compliance testing are available.
The unit is built to meet MIL STD 810 (Grade B), MIL 1399, and MIL STD 901D (Grade B). Grade A or other MIL standards available upon request.
| ENCLOSURE SPECIFICATIONS | |
| EMI Rated Enclosure | Yes |
| Enclosure Material | Aluminium/Steel |
| Enclosure Size | 0U x 48" |
| Enclosure Style | 19in Rack Mount |
| INPUT SPECIFICATIONS | |
| Frequency | 50/60Hz |
| Input Breaker UL Compliance | UL 489 |
| Input Circuit Protection | Switched 30 Amp Circuit Breaker |
| Input Voltage | 120VAC Single Phase; 208VAC Single Phase; 240VAC Single Phase |
| Lightning Protection (MOV) | No |
| Phase | Single Phase (line, neutral, ground) |
| Power Cord | 6ft SOOW |
| Total Current | 30 Amps |
| Input Connector | L5-30P |
| OUTPUT SPECIFICATIONS | |
| Output Banking Scheme | 2 Outlets per Circuit Breaker |
| Output Breaker UL Compliance | UL 1077 |
| Output Circuit Protection | 12 x 15 Amp Switched Circuit Breakers |
| Output Connectors | 24 x 5-15R |
| Output Phase | Single Phase (line, neutral, ground) |
| Output Voltage | Synced to Input |
| PRODUCT DETAILS | |
| Compliance | ISO 9001:2016 Quality Controlled; Built to Meet MIL 810; Built to Meet MIL 1399; Built to Meet 901D Grade B |
| Operating Temperature | 0C - 60C |
| TAA Compliant | Yes |
PDUs are built to order. Lead times are based on production volume. Typical lead times are below, expedited orders are available, contact us for details.
MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO
COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days
CRYPTO MINING PDUs - 20 Business Days
Have a question about the current lead time or expedited service for a unit? Use our live chat to speak with a production representative.
Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring. Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.
Raptor Connect can be optionally integrated into almost all of Raptor's products. If you do not see an option to select Raptor Connect for a PDU, contact us for details.

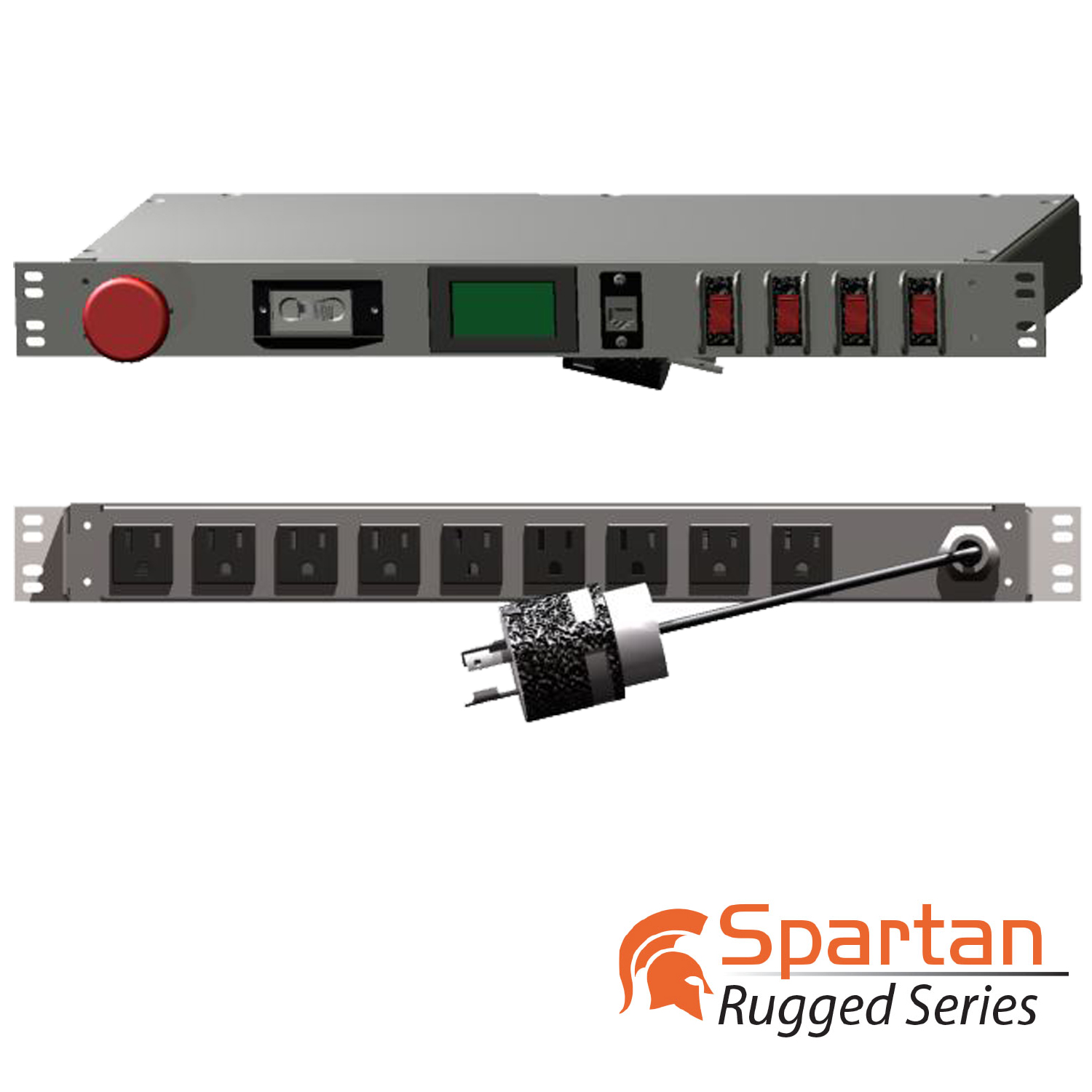

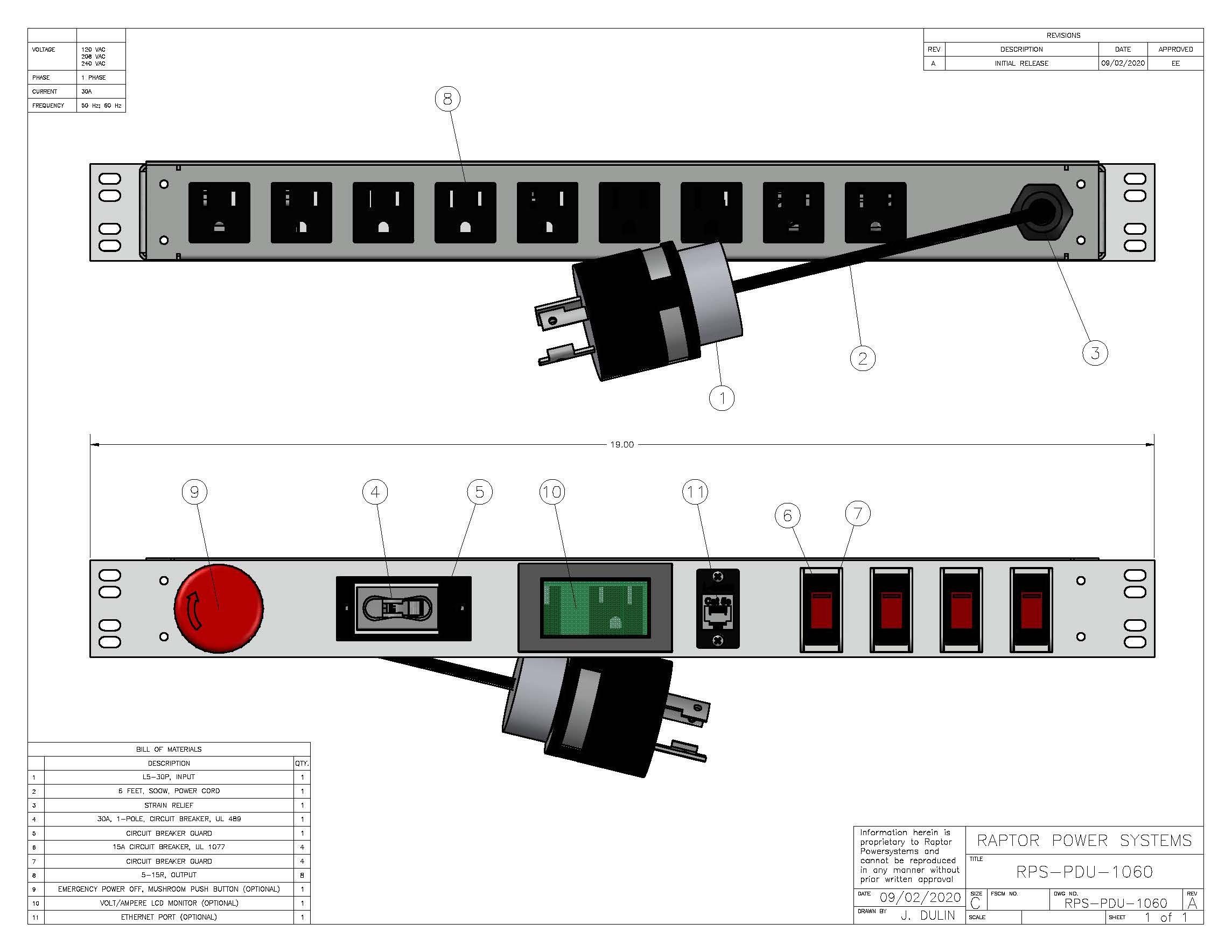

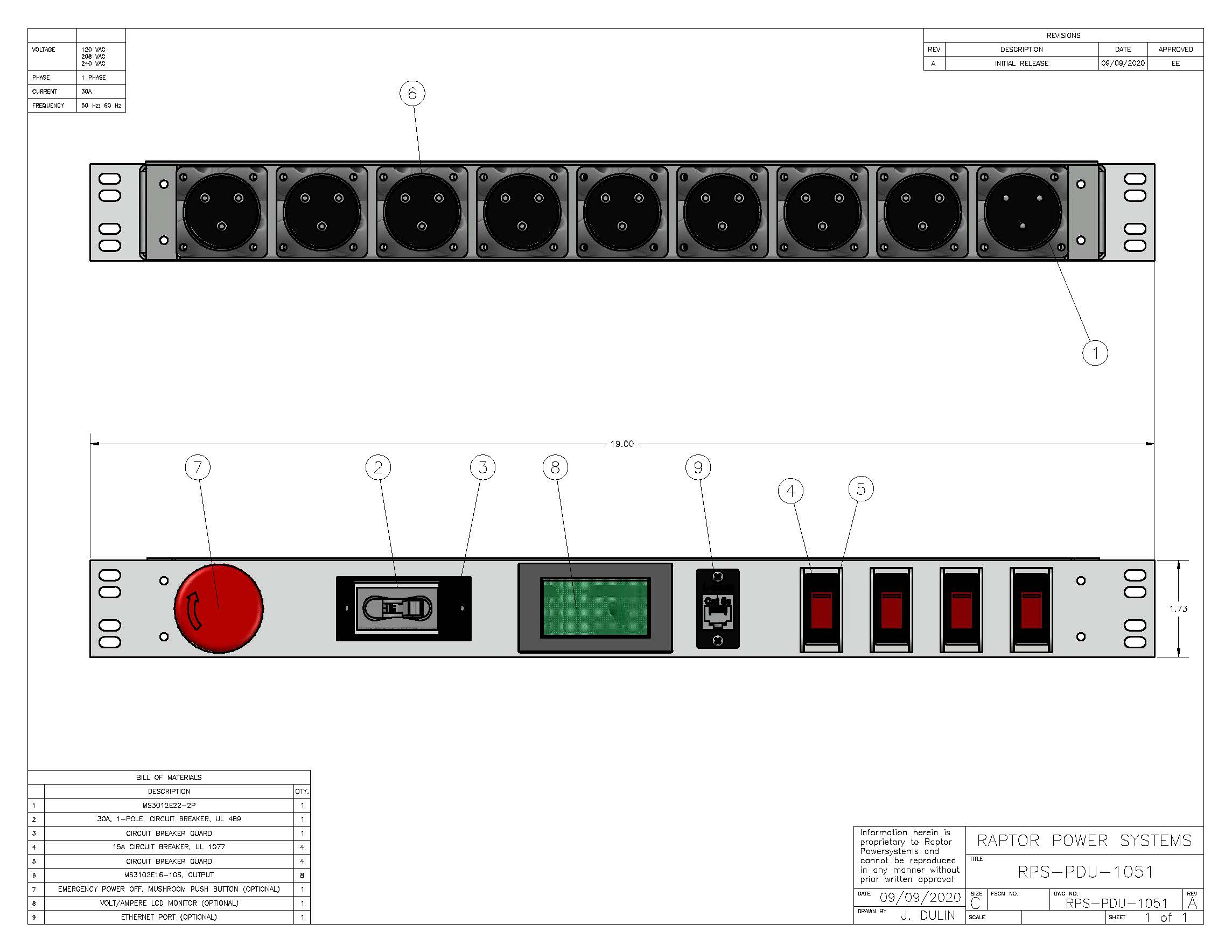

| ENCLOSURE SPECIFICATIONS | |
| EMI Rated Enclosure | Yes |
| Enclosure Material | Aluminium/Steel |
| Enclosure Size | 1U x 12" |
| Enclosure Style | 19in Rack Mount |
| INPUT SPECIFICATIONS | |
| Frequency | 50/60Hz |
| Input Breaker UL Compliance | UL 489 |
| Input Circuit Protection | Switched 30 Amp Circuit Breaker |
| Input Voltage | 120VAC Single Phase; 208VAC Single Phase; 240VAC Single Phase |
| Lightning Protection (MOV) | No |
| Phase | Single Phase (line, neutral, ground) |
| Power Cord | 6ft SOOW |
| Total Current | 30 Amps |
| Input Connector | MS3012E22-2P Circular MIL Connector |
| OUTPUT SPECIFICATIONS | |
| Output Banking Scheme | 1 Outlets per Circuit Breaker |
| Output Breaker UL Compliance | UL 1077 |
| Output Circuit Protection | 8 x 15 Amp Switched Circuit Breakers |
| Output Connectors | 8 x 5-20R |
| Output Phase | Single Phase (line, neutral, ground) |
| Output Voltage | Synced to Input |
| PRODUCT DETAILS | |
| Compliance | ISO 9001:2016 Quality Controlled; Built to Meet MIL 810; Built to Meet MIL 1399; Built to Meet 901D Grade B |
| Operating Temperature | 0C - 60C |
| TAA Compliant | Yes |
PDUs are built to order. Lead times are based on production volume. Typical lead times are below, expedited orders are available, contact us for details.
MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO
COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days
CRYPTO MINING PDUs - 20 Business Days
Have a question about the current lead time or expedited service for a unit? Use our live chat to speak with a production representative.
Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring. Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.
Raptor Connect can be optionally integrated into almost all of Raptor's products. If you do not see an option to select Raptor Connect for a PDU, contact us for details.
| ENCLOSURE SPECIFICATIONS | |
| EMI Rated Enclosure | Yes |
| Enclosure Material | Aluminium/Steel |
| Enclosure Size | 0U x 48" |
| Enclosure Style | 19in Rack Mount |
| INPUT SPECIFICATIONS | |
| Frequency | 50/60Hz |
| Input Breaker UL Compliance | UL 489 |
| Input Circuit Protection | Switched 30 Amp Circuit Breaker |
| Input Voltage | 120VAC Single Phase; 208VAC Single Phase; 240VAC Single Phase |
| Lightning Protection (MOV) | No |
| Phase | Single Phase (line, neutral, ground) |
| Power Cord | 6ft SOOW |
| Total Current | 30 Amps |
| Input Connector | L5-30P |
| OUTPUT SPECIFICATIONS | |
| Output Banking Scheme | 2 Outlets per Circuit Breaker |
| Output Breaker UL Compliance | UL 1077 |
| Output Circuit Protection | 12 x 15 Amp Switched Circuit Breakers |
| Output Connectors | 24 x MS3102E16-10S |
| Output Phase | Single Phase (line, neutral, ground) |
| Output Voltage | Synced to Input |
| PRODUCT DETAILS | |
| Compliance | ISO 9001:2016 Quality Controlled; Built to Meet MIL 810; Built to Meet MIL 1399; Built to Meet 901D Grade B |
| Operating Temperature | 0C - 60C |
| TAA Compliant | Yes |
PDUs are built to order. Lead times are based on production volume. Typical lead times are below, expedited orders are available, contact us for details.
MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO
COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days
CRYPTO MINING PDUs - 20 Business Days
Have a question about the current lead time or expedited service for a unit? Use our live chat to speak with a production representative.
Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring. Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.
Raptor Connect can be optionally integrated into almost all of Raptor's products. If you do not see an option to select Raptor Connect for a PDU, contact us for details.

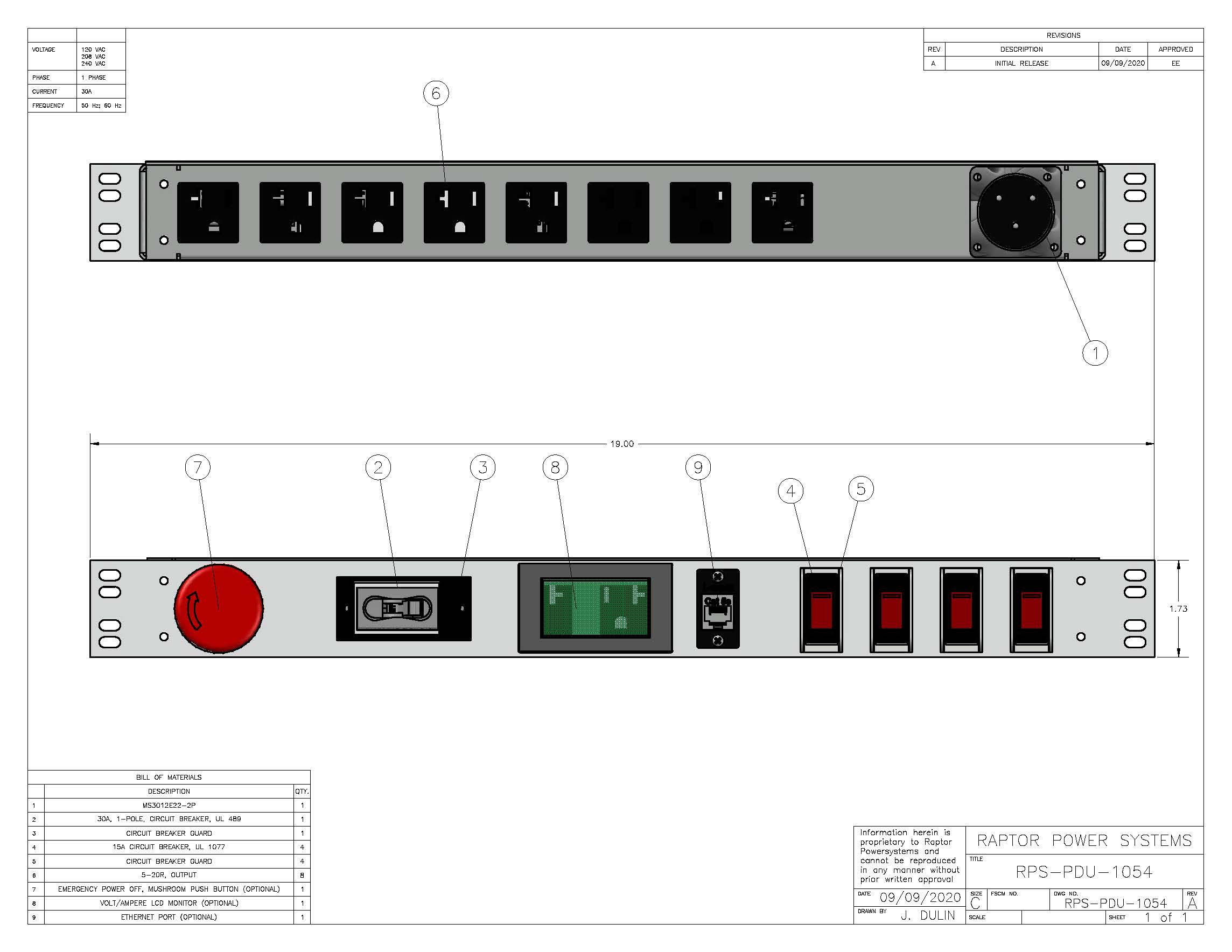

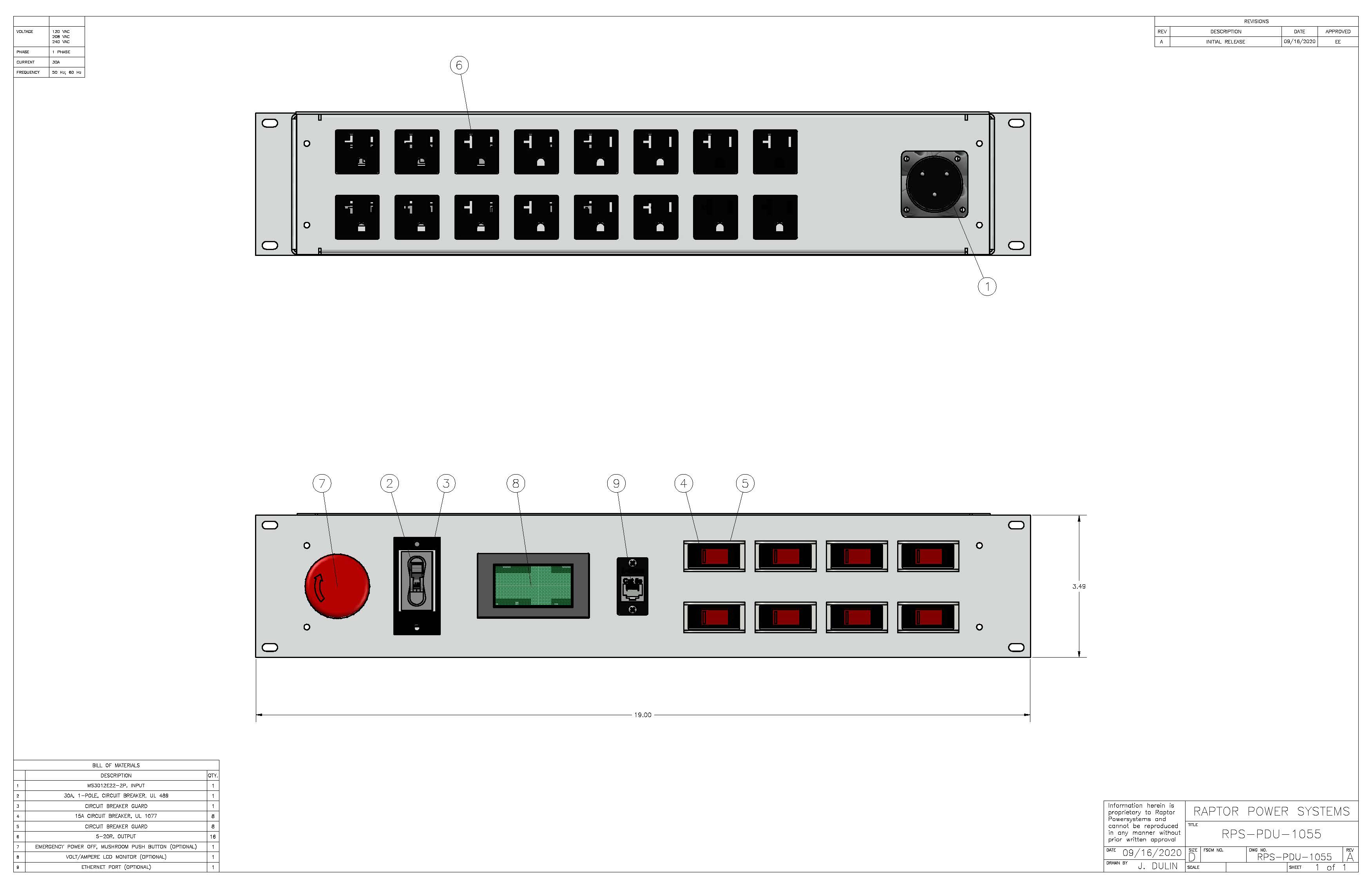

| ENCLOSURE SPECIFICATIONS | |
| EMI Rated Enclosure | Yes |
| Enclosure Material | Aluminium/Steel |
| Enclosure Size | 1U x 12" |
| Enclosure Style | 19in Rack Mount |
| INPUT SPECIFICATIONS | |
| Frequency | 50/60Hz |
| Input Breaker UL Compliance | UL 489 |
| Input Circuit Protection | Switched 30 Amp Circuit Breaker |
| Input Voltage | 120VAC Single Phase; 208VAC Single Phase; 240VAC Single Phase |
| Lightning Protection (MOV) | No |
| Phase | Single Phase (line, neutral, ground) |
| Power Cord | 6ft SOOW |
| Total Current | 30 Amps |
| Input Connector | MS3012E22-2P Circular MIL Connector |
| OUTPUT SPECIFICATIONS | |
| Output Banking Scheme | 1 Outlets per Circuit Breaker |
| Output Breaker UL Compliance | UL 1077 |
| Output Circuit Protection | 8 x 15 Amp Switched Circuit Breakers |
| Output Connectors | 8 x MS3102E16-10S |
| Output Phase | Single Phase (line, neutral, ground) |
| Output Voltage | Synced to Input |
| PRODUCT DETAILS | |
| Compliance | ISO 9001:2016 Quality Controlled; Built to Meet MIL 810; Built to Meet MIL 1399; Built to Meet 901D Grade B |
| Operating Temperature | 0C - 60C |
| TAA Compliant | Yes |
PDUs are built to order. Lead times are based on production volume. Typical lead times are below, expedited orders are available, contact us for details.
MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO
COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days
CRYPTO MINING PDUs - 20 Business Days
Have a question about the current lead time or expedited service for a unit? Use our live chat to speak with a production representative.
Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring. Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.
Raptor Connect can be optionally integrated into almost all of Raptor's products. If you do not see an option to select Raptor Connect for a PDU, contact us for details.
This rugged 30A, 1U MIL SPEC PDU designed for land-based applications has 8 x 5-15R, an L5-30P inlet with a 6ft power cord, switched breakered outputs, and EMI protected enclosure and a remote EPO port. Optional remote control & monitoring, and MIL compliance testing are available.
The unit is built to meet MIL STD 810 (Grade B), MIL 1399, and MIL STD 901D (Grade B). Grade A or other MIL standards available upon request
| ENCLOSURE SPECIFICATIONS | |
| EMI Rated Enclosure | Yes |
| Enclosure Material | Aluminium/Steel |
| Enclosure Size | 1U x 12" |
| Enclosure Style | 19in Rack Mount |
| INPUT SPECIFICATIONS | |
| Frequency | 50/60Hz |
| Input Breaker UL Compliance | UL 489 |
| Input Circuit Protection | Switched 30 Amp Circuit Breaker |
| Input Voltage | 120VAC Single Phase; 208VAC Single Phase; 240VAC Single Phase |
| Lightning Protection (MOV) | No |
| Phase | Single Phase (line, neutral, ground) |
| Power Cord | 6ft SOOW |
| Total Current | 30 Amps |
| Input Connector | L5-30P |
| OUTPUT SPECIFICATIONS | |
| Output Banking Scheme | 1 Outlets per Circuit Breaker |
| Output Breaker UL Compliance | UL 1077 |
| Output Circuit Protection | 8 x 15 Amp Switched Circuit Breakers |
| Output Connectors | 8 x 5-15R |
| Output Phase | Single Phase (line, neutral, ground) |
| Output Voltage | Synced to Input |
| PRODUCT DETAILS | |
| Compliance | ISO 9001:2016 Quality Controlled; Built to Meet MIL 810; Built to Meet MIL 1399; Built to Meet 901D Grade B |
| Operating Temperature | 0C - 60C |
| TAA Compliant | Yes |
PDUs are built to order. Lead times are based on production volume. Typical lead times are below, expedited orders are available, contact us for details.
MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO
COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days
CRYPTO MINING PDUs - 20 Business Days
Have a question about the current lead time or expedited service for a unit? Use our live chat to speak with a production representative.
Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring. Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.
Raptor Connect can be optionally integrated into almost all of Raptor's products. If you do not see an option to select Raptor Connect for a PDU, contact us for details.
This rugged 30A, 1U MIL SPEC PDU designed for land-based applications has 8 x MS3102E16-10S circular MIL connectors, an L6-30P inlet with a 6ft power cord, switched breakered outputs, and EMI protected enclosure and a remote EPO port. Optional remote control & monitoring, and MIL compliance testing are available.
The unit is built to meet MIL STD 810 (Grade B), MIL 1399, and MIL STD 901D (Grade B). Grade A or other MIL standards available upon request.
| ENCLOSURE SPECIFICATIONS | |
| EMI Rated Enclosure | Yes |
| Enclosure Material | Aluminium/Steel |
| Enclosure Size | 1U x 12" |
| Enclosure Style | 19in Rack Mount |
| INPUT SPECIFICATIONS | |
| Frequency | 50/60Hz |
| Input Breaker UL Compliance | UL 489 |
| Input Circuit Protection | Switched 30 Amp Circuit Breaker |
| Input Voltage | 120VAC Single Phase; 208VAC Single Phase; 240VAC Single Phase |
| Lightning Protection (MOV) | No |
| Phase | Dual Phase (line, line, ground) |
| Power Cord | 6ft SOOW |
| Total Current | 30 Amps |
| Input Connector | L5-30P |
| OUTPUT SPECIFICATIONS | |
| Output Banking Scheme | 1 Outlets per Circuit Breaker |
| Output Breaker UL Compliance | UL 1077 |
| Output Circuit Protection | 8 x 15 Amp Switched Circuit Breakers |
| Output Connectors | 8 x MS3102E16-10S |
| Output Phase | Dual Phase (line, line, ground) |
| Output Voltage | Synced to Input |
| PRODUCT DETAILS | |
| Compliance | ISO 9001:2016 Quality Controlled; Built to Meet MIL 810; Built to Meet MIL 1399; Built to Meet 901D Grade B |
| Operating Temperature | 0C - 60C |
| TAA Compliant | Yes |
PDUs are built to order. Lead times are based on production volume. Typical lead times are below, expedited orders are available, contact us for details.
MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO
COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days
CRYPTO MINING PDUs - 20 Business Days
Have a question about the current lead time or expedited service for a unit? Use our live chat to speak with a production representative.
Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring. Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.
Raptor Connect can be optionally integrated into almost all of Raptor's products. If you do not see an option to select Raptor Connect for a PDU, contact us for details.
| ENCLOSURE SPECIFICATIONS | |
| EMI Rated Enclosure | Yes |
| Enclosure Material | Aluminium/Steel |
| Enclosure Size | 1U x 12" |
| Enclosure Style | 19in Rack Mount |
| INPUT SPECIFICATIONS | |
| Frequency | 50/60Hz |
| Input Breaker UL Compliance | UL 489 |
| Input Circuit Protection | Switched 30 Amp Circuit Breaker |
| Input Voltage | 120VAC Single Phase; 208VAC Single Phase; 240VAC Single Phase |
| Lightning Protection (MOV) | No |
| Phase | Single Phase (line, neutral, ground) |
| Power Cord | 6ft SOOW |
| Total Current | 30 Amps |
| Input Connector | MS3012E22-2P Circular MIL Connector |
| OUTPUT SPECIFICATIONS | |
| Output Banking Scheme | 2 Outlets per Circuit Breaker |
| Output Breaker UL Compliance | UL 1077 |
| Output Circuit Protection | 8 x 15 Amp Switched Circuit Breakers |
| Output Connectors | 16 x 5-20R |
| Output Phase | Single Phase (line, neutral, ground) |
| Output Voltage | Synced to Input |
| PRODUCT DETAILS | |
| Compliance | ISO 9001:2016 Quality Controlled; Built to Meet MIL 810; Built to Meet MIL 1399; Built to Meet 901D Grade B |
| Operating Temperature | 0C - 60C |
| TAA Compliant | Yes |
PDUs are built to order. Lead times are based on production volume. Typical lead times are below, expedited orders are available, contact us for details.
MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO
COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days
CRYPTO MINING PDUs - 20 Business Days
Have a question about the current lead time or expedited service for a unit? Use our live chat to speak with a production representative.
Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring. Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.
Raptor Connect can be optionally integrated into almost all of Raptor's products. If you do not see an option to select Raptor Connect for a PDU, contact us for details.

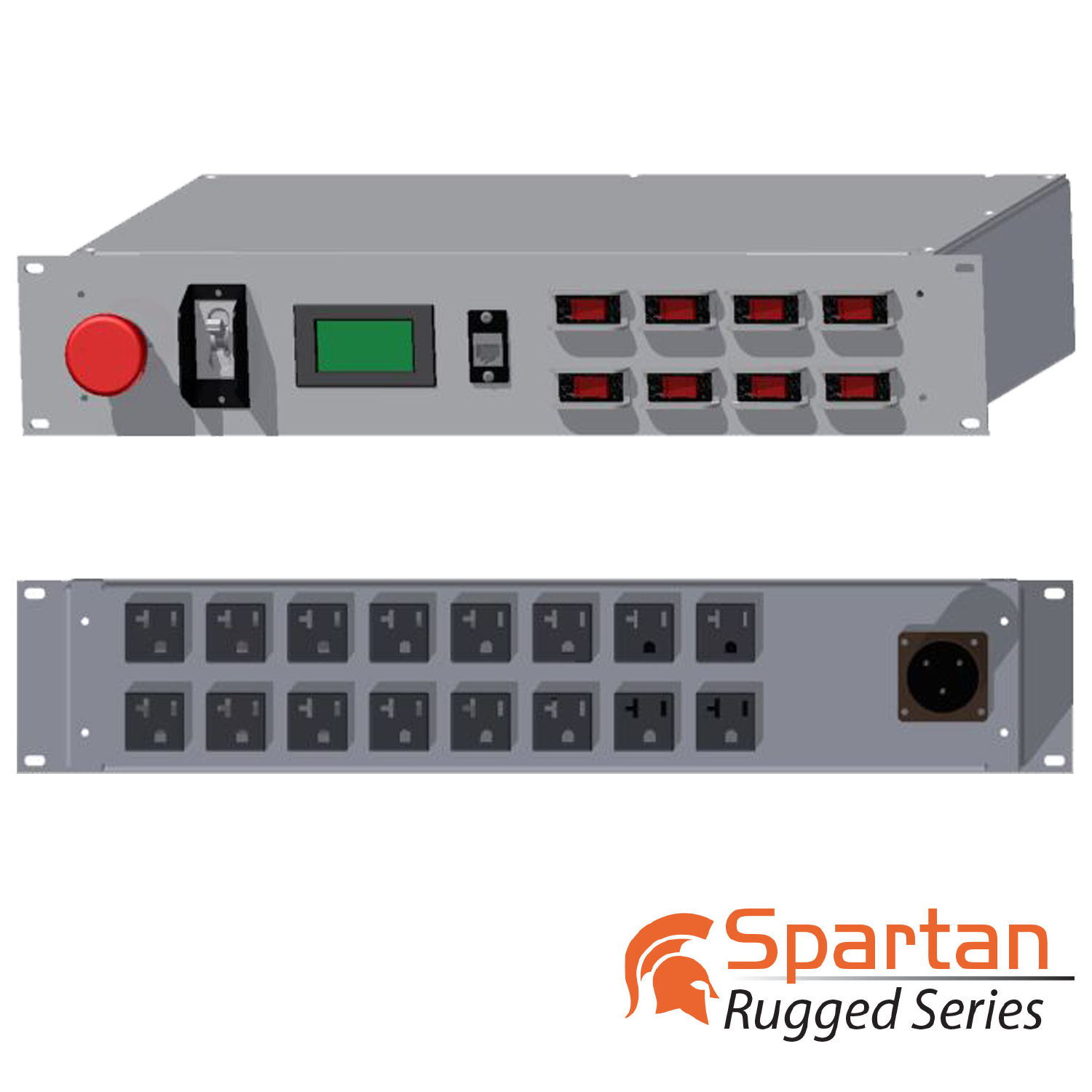

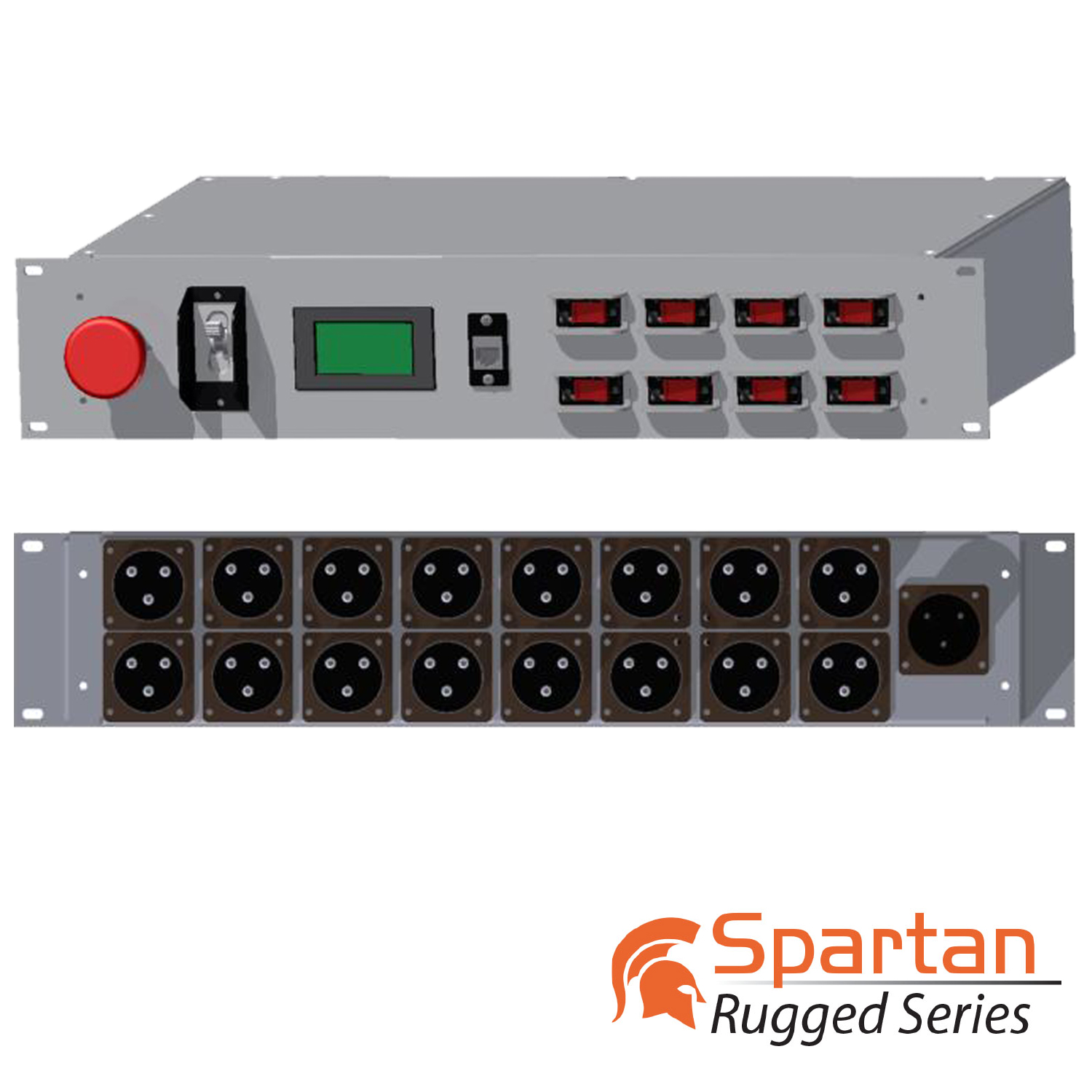

| ENCLOSURE SPECIFICATIONS | |
| EMI Rated Enclosure | Yes |
| Enclosure Material | Aluminium/Steel |
| Enclosure Size | 1U x 12" |
| Enclosure Style | 19in Rack Mount |
| INPUT SPECIFICATIONS | |
| Frequency | 50/60Hz |
| Input Breaker UL Compliance | UL 489 |
| Input Circuit Protection | Switched 30 Amp Circuit Breaker |
| Input Voltage | 120VAC Single Phase; 208VAC Single Phase; 240VAC Single Phase |
| Lightning Protection (MOV) | No |
| Phase | Single Phase (line, neutral, ground) |
| Power Cord | 6ft SOOW |
| Total Current | 30 Amps |
| Input Connector | MS3012E22-2P Circular MIL Connector |
| OUTPUT SPECIFICATIONS | |
| Output Banking Scheme | 2 Outlets per Circuit Breaker |
| Output Breaker UL Compliance | UL 1077 |
| Output Circuit Protection | 8 x 15 Amp Switched Circuit Breakers |
| Output Connectors | 16 x MS3102E16-10S |
| Output Phase | Single Phase (line, neutral, ground) |
| Output Voltage | Synced to Input |
| PRODUCT DETAILS | |
| Compliance | ISO 9001:2016 Quality Controlled; Built to Meet MIL 810; Built to Meet MIL 1399; Built to Meet 901D Grade B |
| Operating Temperature | 0C - 60C |
| TAA Compliant | Yes |
PDUs are built to order. Lead times are based on production volume. Typical lead times are below, expedited orders are available, contact us for details.
MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO
COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days
CRYPTO MINING PDUs - 20 Business Days
Have a question about the current lead time or expedited service for a unit? Use our live chat to speak with a production representative.
Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring. Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.
Raptor Connect can be optionally integrated into almost all of Raptor's products. If you do not see an option to select Raptor Connect for a PDU, contact us for details.

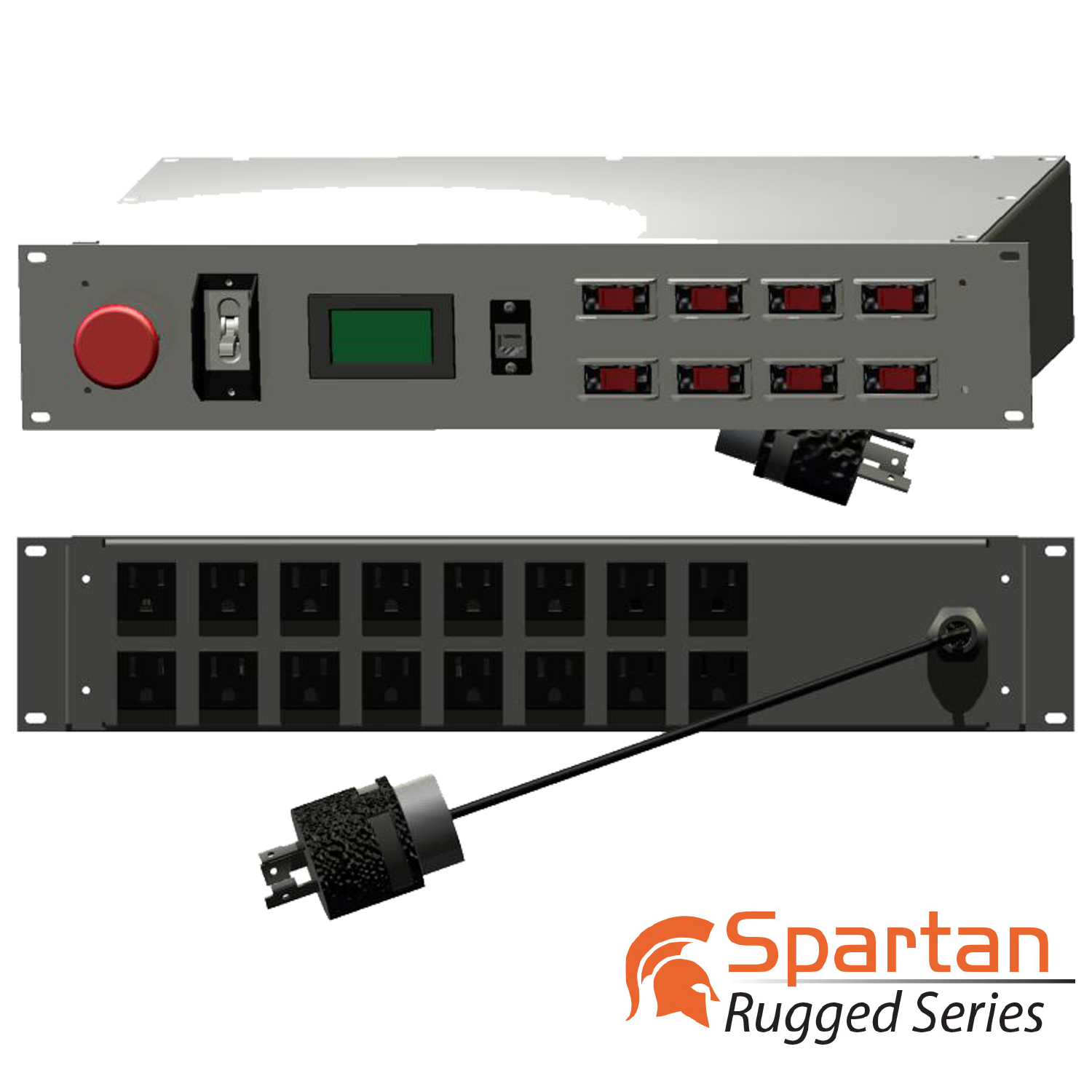

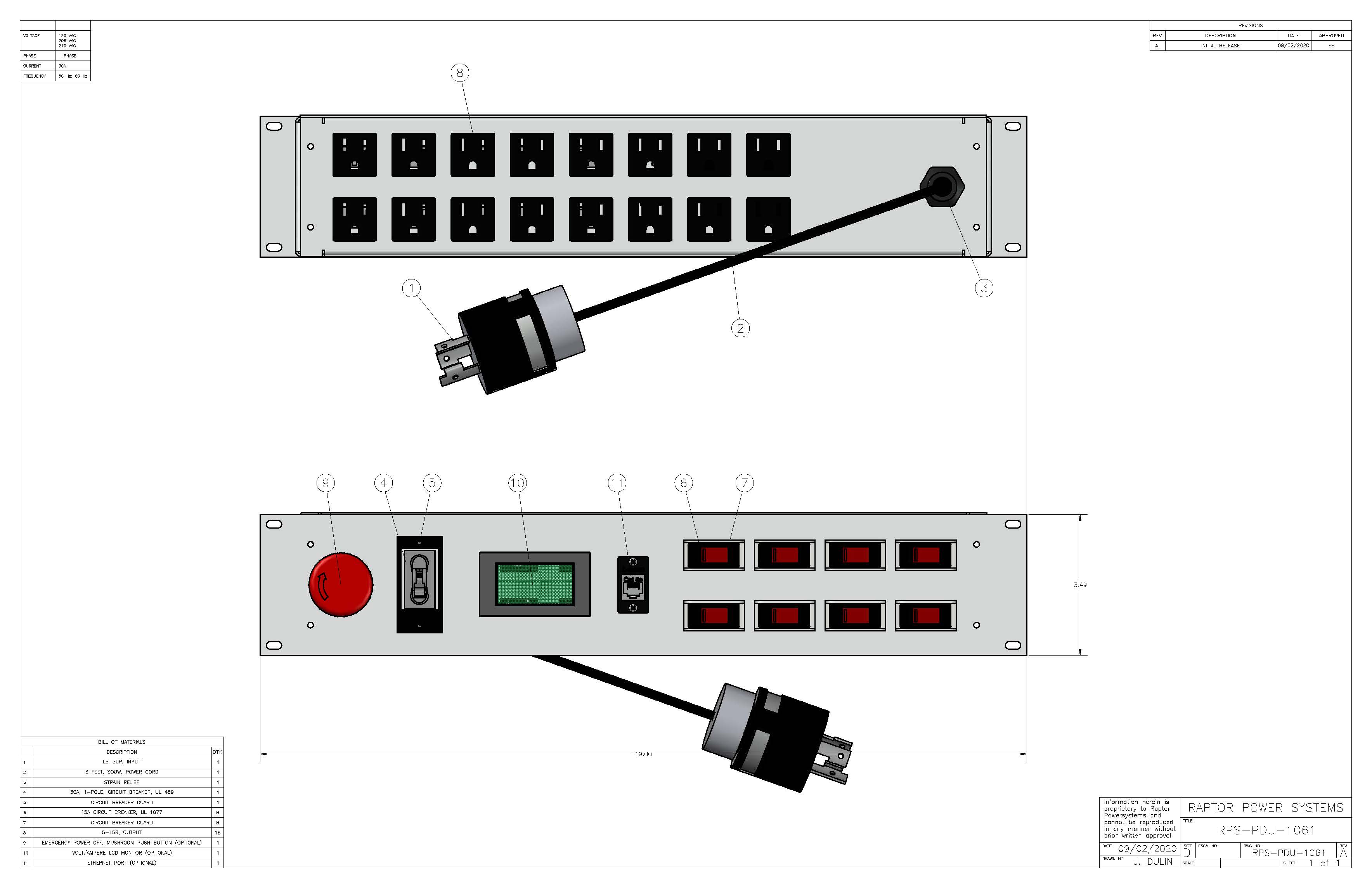

This rugged 30A, 2U MIL SPEC PDU designed for land-based applications has 16 x 5-15R, an L5-30P inlet with a 6ft power cord, switched breakered outputs, and EMI protected enclosure and a remote EPO port. Optional remote control & monitoring, and MIL compliance testing are available.
The unit is built to meet MIL STD 810 (Grade B), MIL 1399, and MIL STD 901D (Grade B). Grade A or other MIL standards available upon request.
| ENCLOSURE SPECIFICATIONS | |
| EMI Rated Enclosure | Yes |
| Enclosure Material | Aluminium/Steel |
| Enclosure Size | 1U x 12" |
| Enclosure Style | 19in Rack Mount |
| INPUT SPECIFICATIONS | |
| Frequency | 50/60Hz |
| Input Breaker UL Compliance | UL 489 |
| Input Circuit Protection | Switched 30 Amp Circuit Breaker |
| Input Voltage | 120VAC Single Phase; 208VAC Single Phase; 240VAC Single Phase |
| Lightning Protection (MOV) | No |
| Phase | Single Phase (line, neutral, ground) |
| Power Cord | 6ft SOOW |
| Total Current | 30 Amps |
| Input Connector | L5-30P |
| OUTPUT SPECIFICATIONS | |
| Output Banking Scheme | 2 Outlets per Circuit Breaker |
| Output Breaker UL Compliance | UL 1077 |
| Output Circuit Protection | 8 x 15 Amp Switched Circuit Breakers |
| Output Connectors | 16 x 5-15R |
| Output Phase | Single Phase (line, neutral, ground) |
| Output Voltage | Synced to Input |
| PRODUCT DETAILS | |
| Compliance | ISO 9001:2016 Quality Controlled; Built to Meet MIL 810; Built to Meet MIL 1399; Built to Meet 901D Grade B |
| Operating Temperature | 0C - 60C |
| TAA Compliant | Yes |
PDUs are built to order. Lead times are based on production volume. Typical lead times are below, expedited orders are available, contact us for details.
MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO
COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days
CRYPTO MINING PDUs - 20 Business Days
Have a question about the current lead time or expedited service for a unit? Use our live chat to speak with a production representative.
Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring. Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.
Raptor Connect can be optionally integrated into almost all of Raptor's products. If you do not see an option to select Raptor Connect for a PDU, contact us for details.
| ENCLOSURE SPECIFICATIONS | |
| EMI Rated Enclosure | Yes |
| Enclosure Material | Aluminium/Steel |
| Enclosure Size | 1U x 12" |
| Enclosure Style | 19in Rack Mount |
| INPUT SPECIFICATIONS | |
| Frequency | 50/60Hz |
| Input Breaker UL Compliance | UL 489 |
| Input Circuit Protection | Switched 30 Amp Circuit Breaker |
| Input Voltage | 120VAC Single Phase; 208VAC Single Phase; 240VAC Single Phase |
| Lightning Protection (MOV) | No |
| Phase | Single Phase (line, neutral, ground) |
| Power Cord | 6ft SOOW |
| Total Current | 30 Amps |
| Input Connector | L5-30P |
| OUTPUT SPECIFICATIONS | |
| Output Banking Scheme | 2 Outlets per Circuit Breaker |
| Output Breaker UL Compliance | UL 1077 |
| Output Circuit Protection | 8 x 15 Amp Switched Circuit Breakers |
| Output Connectors | 16 x MS3102E16-10S |
| Output Phase | Single Phase (line, neutral, ground) |
| Output Voltage | Synced to Input |
| PRODUCT DETAILS | |
| Compliance | SO 9001:2016 Quality Controlled; Built to Meet MIL 810; Built to Meet MIL 1399; Built to Meet 901D Grade B |
| Operating Temperature | 0C - 60C |
| TAA Compliant | Yes |
PDUs are built to order. Lead times are based on production volume. Typical lead times are below, expedited orders are available, contact us for details.
MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO
COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days
CRYPTO MINING PDUs - 20 Business Days
Have a question about the current lead time or expedited service for a unit? Use our live chat to speak with a production representative.
Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring. Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.
Raptor Connect can be optionally integrated into almost all of Raptor's products. If you do not see an option to select Raptor Connect for a PDU, contact us for details.

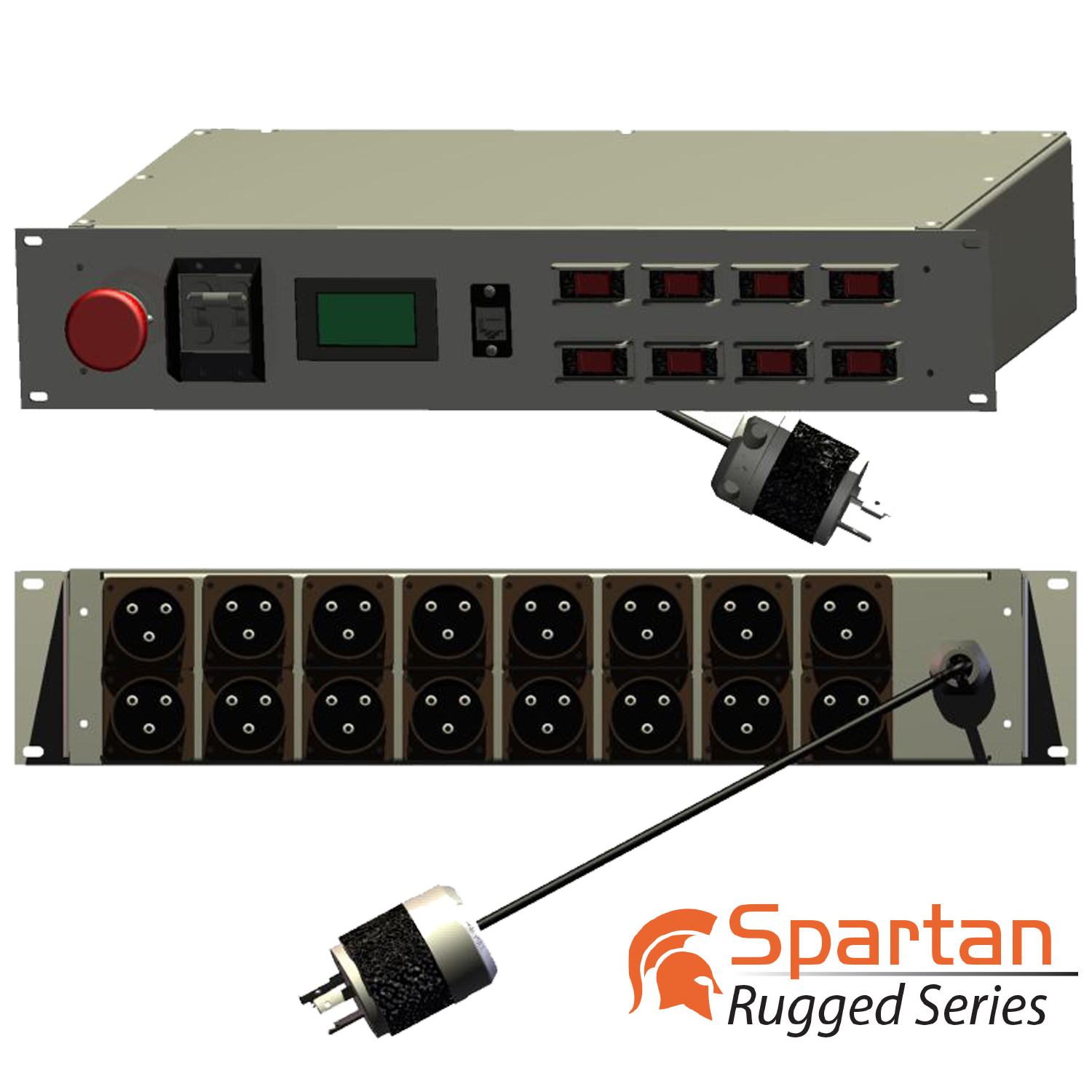

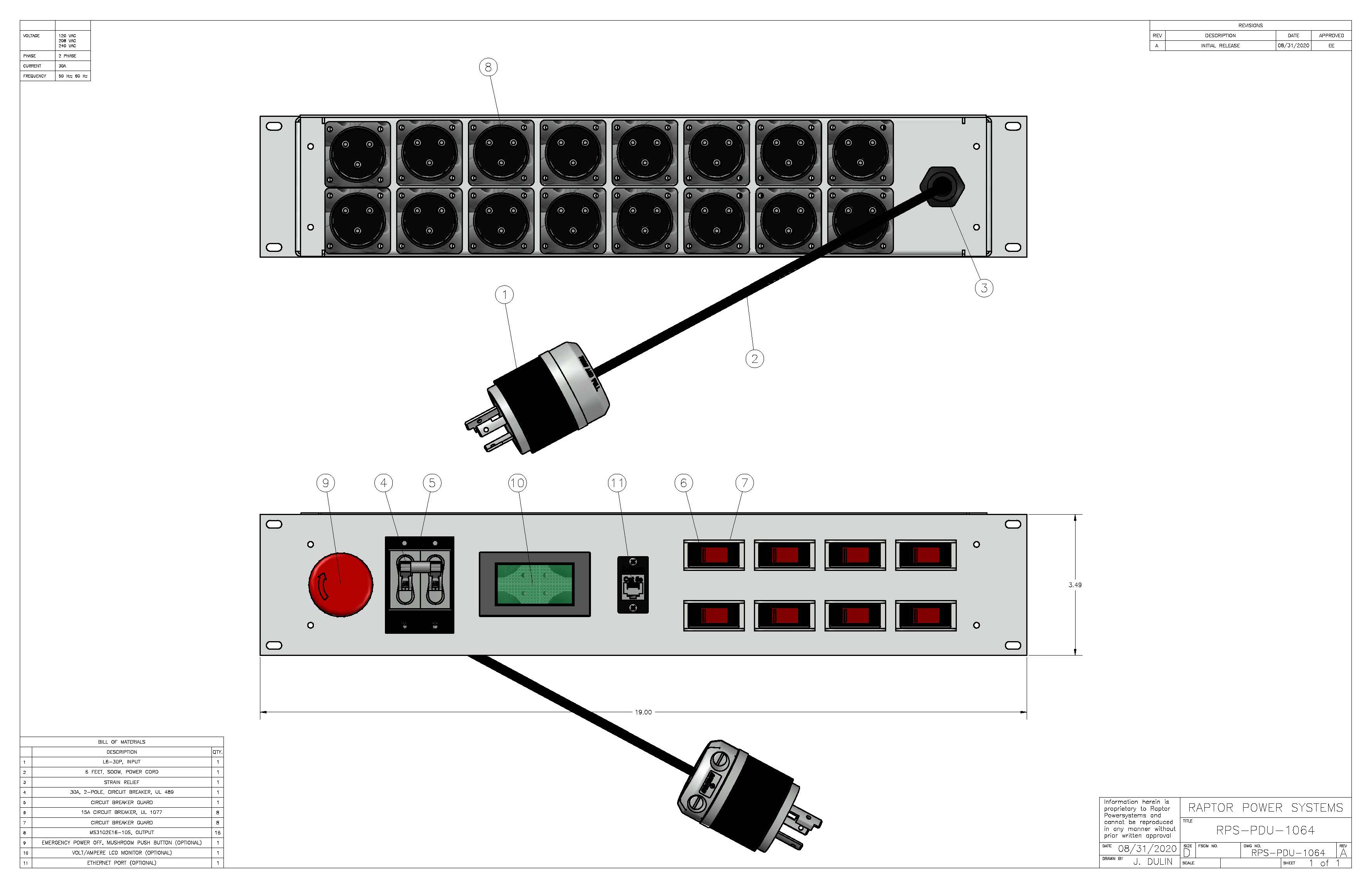

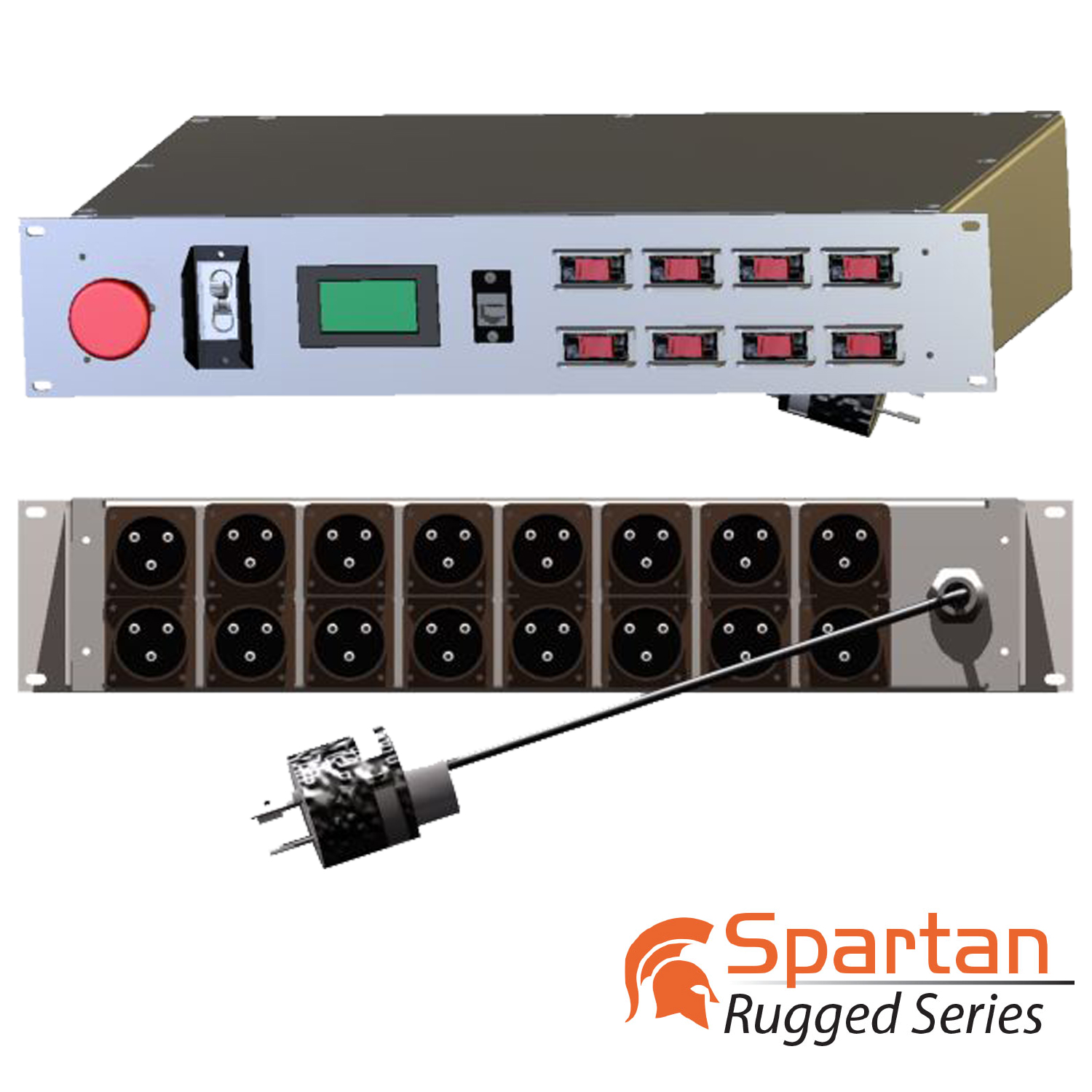

This rugged 30A, 2U MIL SPEC PDU designed for land-based applications has 16 x MS3102E16-10S, an L6-20P inlet with a 6ft power cord, switched breakered outputs, and EMI protected enclosure and a remote EPO port. Optional remote control & monitoring, and MIL compliance testing are available.
The unit is built to meet MIL STD 810 (Grade B), MIL 1399, and MIL STD 901D (Grade B). Grade A or other MIL standards available upon request.
| ENCLOSURE SPECIFICATIONS | |
| EMI Rated Enclosure | Yes |
| Enclosure Material | Aluminium/Steel |
| Enclosure Size | 2U x 12" |
| Enclosure Style | 19in Rack Mount |
| INPUT SPECIFICATIONS | |
| Frequency | 50/60Hz |
| Input Breaker UL Compliance | UL 489 |
| Input Circuit Protection | Switched 30 Amp Circuit Breaker |
| Input Voltage | 120VAC Single Phase; 208VAC Single Phase; 240VAC Single Phase |
| Lightning Protection (MOV) | No |
| Phase | Dual Phase (line, line, ground) |
| Power Cord | 6ft SOOW |
| Total Current | 30 Amps |
| Input Connector | L6-30P |
| OUTPUT SPECIFICATIONS | |
| Output Banking Scheme | 2 Outlets per Circuit Breaker |
| Output Breaker UL Compliance | UL 1077 |
| Output Circuit Protection | 8 x 15 Amp Switched Circuit Breakers |
| Output Connectors | 16 x MS3102E16-10S |
| Output Phase | Dual Phase (line, line, ground) |
| Output Voltage | Synced to Input |
| PRODUCT DETAILS | |
| Compliance | ISO 9001:2016 Quality Controlled; Built to Meet MIL 810; Built to Meet MIL 1399; Built to Meet 901D Grade B |
| Operating Temperature | 0C - 60C |
| TAA Compliant | Yes |
PDUs are built to order. Lead times are based on production volume. Typical lead times are below, expedited orders are available, contact us for details.
MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO
COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days
CRYPTO MINING PDUs - 20 Business Days
Have a question about the current lead time or expedited service for a unit? Use our live chat to speak with a production representative.
Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring. Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.
Raptor Connect can be optionally integrated into almost all of Raptor's products. If you do not see an option to select Raptor Connect for a PDU, contact us for details.
