Shipboard PDUs

MIL SPEC Shipboard Rack PDUs for Mission Critical Applications

Configurable Shipboard Viking PDU


PDUs are built to order.  Lead times are based on production volume.  Typical lead times are below, expedited orders are available, contact us for details.

MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO

COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days

CRYPTO MINING PDUs - 20 Business Days

Have a question about the current lead time or expedited service for a unit?  Use our live chat to speak with a production representative.

Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring.  Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.

Raptor Connect can be optionally integrated into almost all of Raptor's products.  If you do not see an option to select Raptor Connect for a PDU, contact us for details.

All PDUs, standard or custom, come with a full 2-year warranty on parts and labor.  Raptor Power will, at its discretion, repair or replace any product found to be defective.  Phone support is included during the 2-year warranty period.
Don't see what you need?  Go custom!  Every unit can be customized to meet your needs or we can design from the ground up.  Contact us for details.

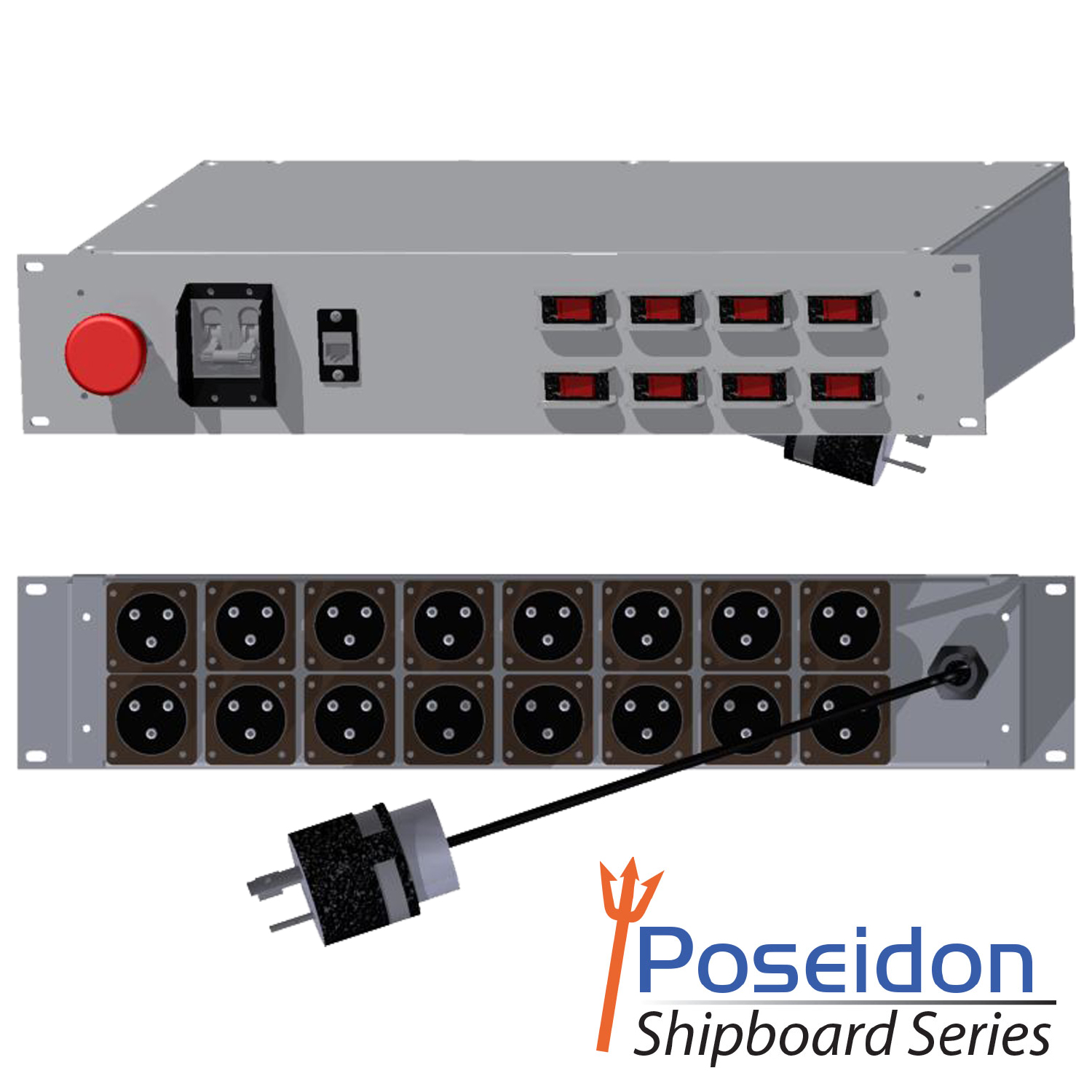

Part Number: RPS-PDU-1067

This rugged 30A, 2U MIL SPEC PDU designed for shipboard applications has 16 x MS3102E16-10S, an L5-30P inlet with a 6ft power cord, switched breakered outputs, and EMI protected enclosure and a remote EPO port.  Optional remote control & monitoring, and MIL compliance testing are available.

The unit is built to meet MIL STD 810 (Grade B), MIL 1399, and MIL STD 901D (Grade B).  Grade A or other MIL standards available upon request.

ENCLOSURE SPECIFICATIONS
EMI Rated Enclosure Yes
Enclosure Material Aluminium/Steel
Enclosure Size 2U x 12"
Enclosure Style 19in Rack Mount
INPUT SPECIFICATIONS
Frequency 50/60Hz
Input Breaker UL Compliance UL 489
Input Circuit Protection Switched 30 Amp Circuit Breaker
Input Voltage 120VAC Single Phase; 208VAC Single Phase; 240VAC Single Phase
Lightning Protection (MOV) No
Phase Dual Phase (line, line, ground)
Power Cord 6ft SOOW
Total Current 30 Amps
Input Connector L5-30P
OUTPUT SPECIFICATIONS
Output Banking Scheme 2 Outlets per Circuit Breaker
Output Breaker UL Compliance UL 1077
Output Circuit Protection 8 x 15 Amp Switched Circuit Breakers
Output Connectors 16 x MS3102E16-10S
Output Phase Dual Phase (line, line, ground)
Output Voltage Synced to Input
PRODUCT DETAILS
Compliance ISO 9001:2016 Quality Controlled; Built to Meet MIL 810; Built to Meet MIL 1399; Built to Meet 901D Grade B
Operating Temperature 0C - 60C
TAA Compliant Yes

PDUs are built to order.  Lead times are based on production volume.  Typical lead times are below, expedited orders are available, contact us for details.

MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO

COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days

CRYPTO MINING PDUs - 20 Business Days

Have a question about the current lead time or expedited service for a unit?  Use our live chat to speak with a production representative.

Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring.  Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.

Raptor Connect can be optionally integrated into almost all of Raptor's products.  If you do not see an option to select Raptor Connect for a PDU, contact us for details.

All PDUs, standard or custom, come with a full 2-year warranty on parts and labor.  Raptor Power will, at its discretion, repair or replace any product found to be defective.  Phone support is included during the 2-year warranty period.
Don't see what you need?  Go custom!  Every unit can be customized to meet your needs or we can design from the ground up.  Contact us for details.

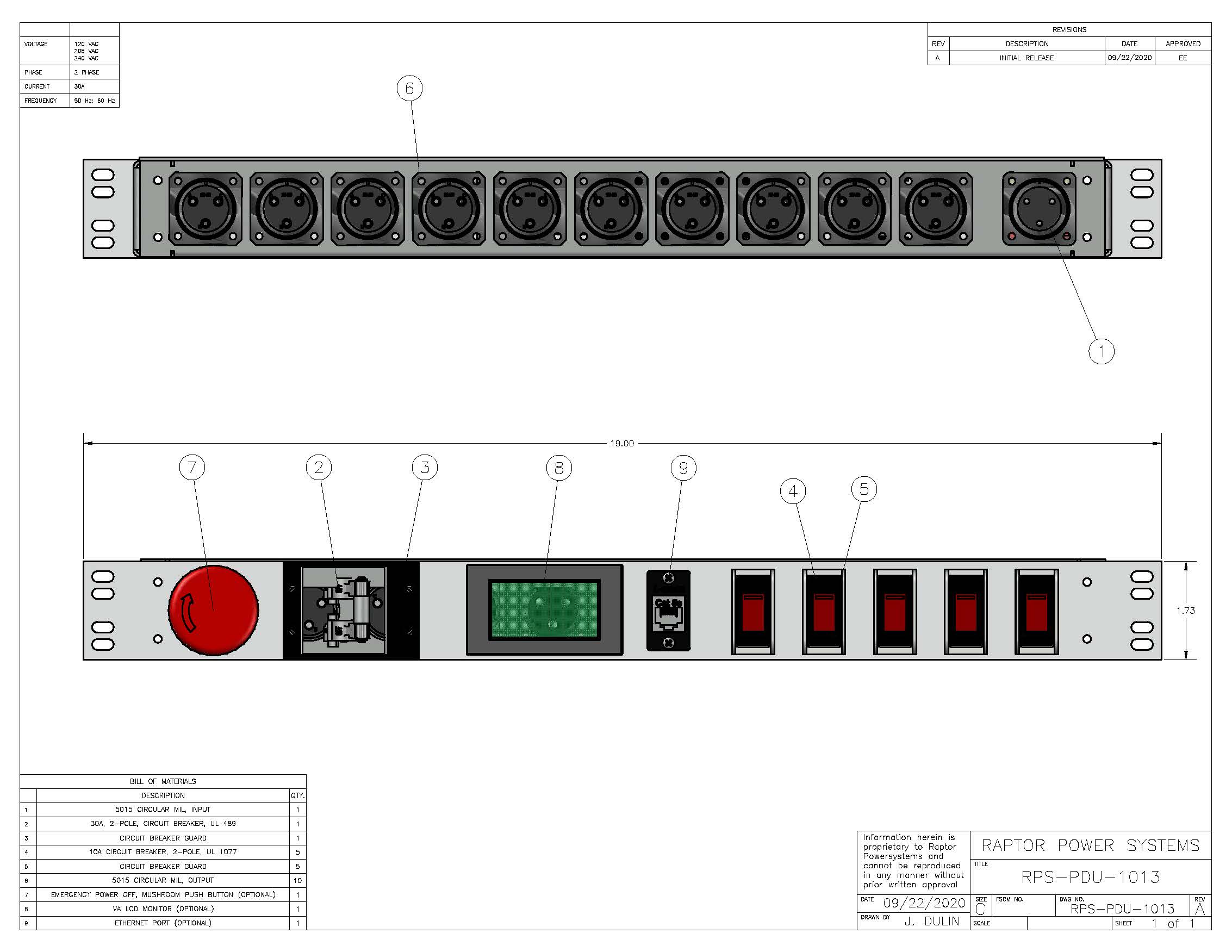

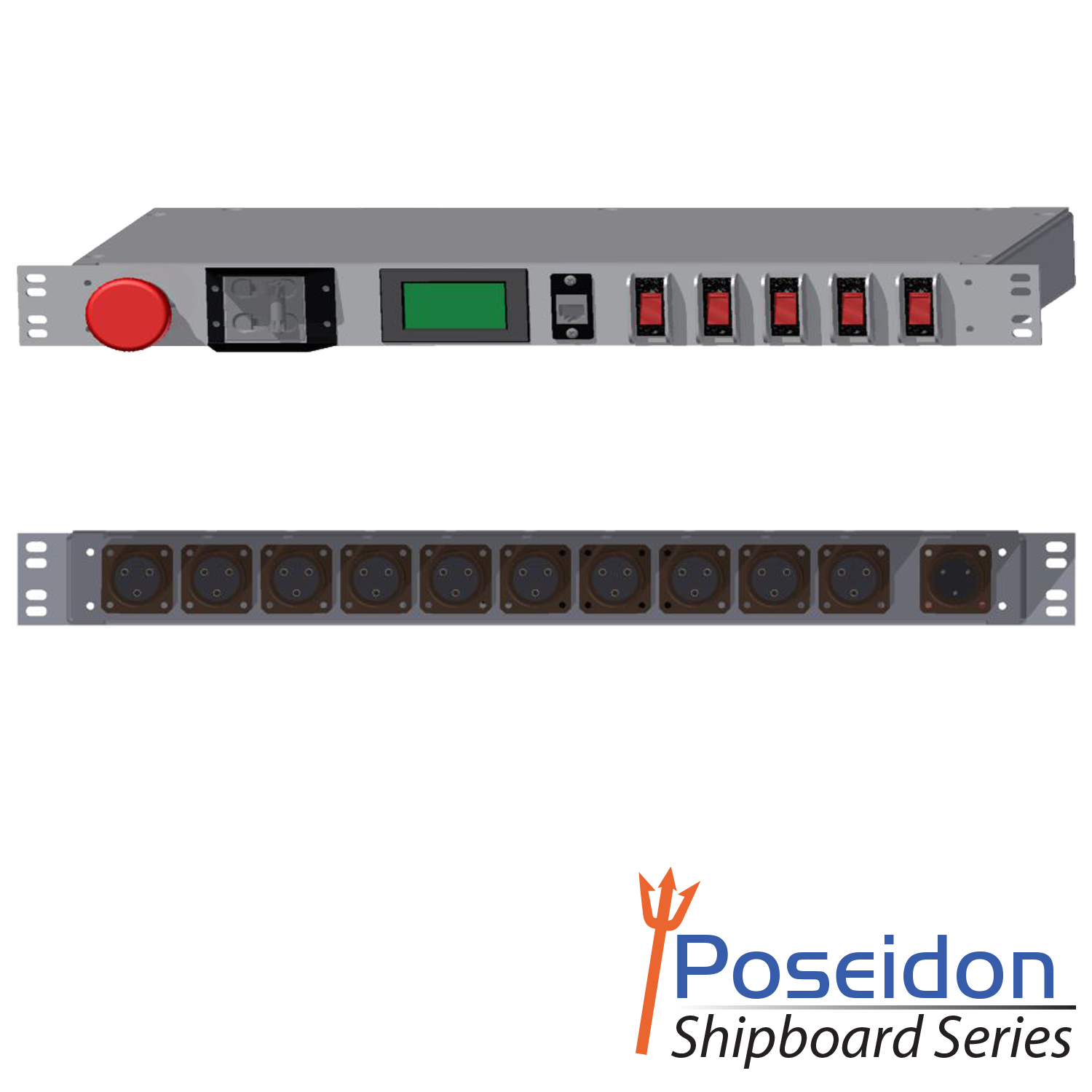

Part Number: RPS-PDU-1013

This rugged 15A, 1U MIL SPEC PDU designed for shipboard applications has 10 x 5015 circular MIL connectors, a 5015 inlet with a 6ft power cord, an LCD meter to show volts and amps, and switched outputs.  Optional EMI filtering, EPO, remote control & monitoring, and MIL compliance testing are available.

The unit is built to meet MIL STD 810 (Grade B), MIL 1399, and MIL STD 901D (Grade B).  Grade A available upon request.
ENCLOSURE SPECIFICATIONS
EMI Rated Enclosure No
Enclosure Material Aluminium/Steel
Enclosure Size 1U x 12"
Enclosure Style 19in Rack Mount
INPUT SPECIFICATIONS
Frequency 60Hz
Input Breaker UL Compliance UL 489
Input Circuit Protection Switched 15 Amp Circuit Breaker
Input Voltage 120VAC Single Phase; 208VAC Single Phase; 240VAC Single Phase
Lightning Protection (MOV) No
Phase Dual Phase (line, line, ground)
Power Cord 6ft SOOW
Total Current 15 Amps
Input Connector 5015 Circular MIL Connector
OUTPUT SPECIFICATIONS
Output Banking Scheme 2 Outlets per Circuit Breaker
Output Breaker UL Compliance UL 1077
Output Circuit Protection 5 x 10 Amp Switched Circuit Breakers
Output Connectors 10 x 5015
Output Phase Dual Phase (line, line, ground)
Output Voltage Synced to Input
PRODUCT DETAILS
Compliance ISO 9001:2016 Quality Controlled; Built to Meet MIL 810; Built to Meet MIL 1399; Built to Meet 901D Grade B
Operating Temperature 0C - 60C
TAA Compliant Yes

PDUs are built to order.  Lead times are based on production volume.  Typical lead times are below, expedited orders are available, contact us for details.

MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO

COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days

CRYPTO MINING PDUs - 20 Business Days

Have a question about the current lead time or expedited service for a unit?  Use our live chat to speak with a production representative.

Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring.  Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.

Raptor Connect can be optionally integrated into almost all of Raptor's products.  If you do not see an option to select Raptor Connect for a PDU, contact us for details.

All PDUs, standard or custom, come with a full 2-year warranty on parts and labor.  Raptor Power will, at its discretion, repair or replace any product found to be defective.  Phone support is included during the 2-year warranty period.
Don't see what you need?  Go custom!  Every unit can be customized to meet your needs or we can design from the ground up.  Contact us for details.

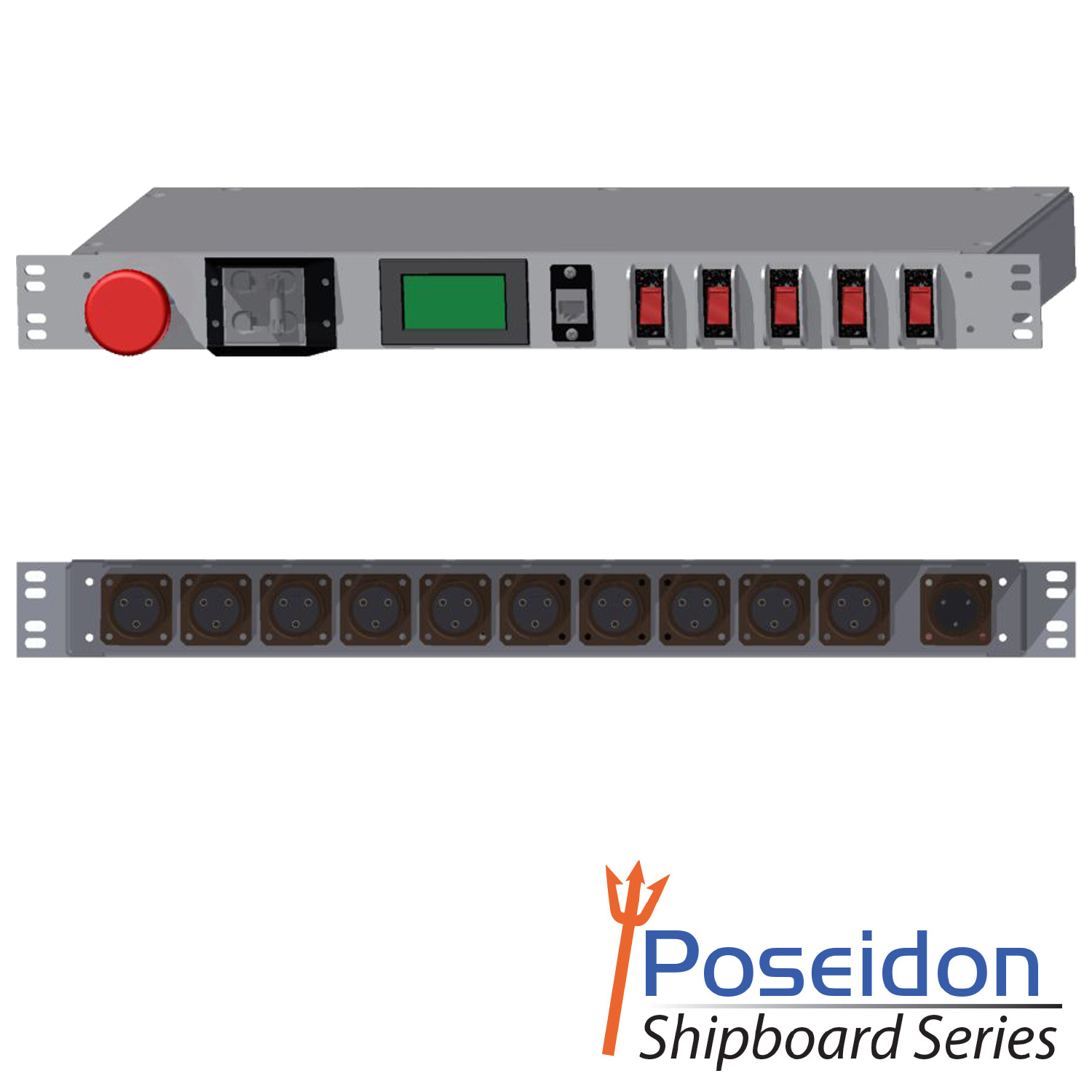

Part Number: RPS-PDU-1014

This rugged 20A, 1U MIL SPEC PDU designed for shipboard applications has 10 x 5015 circular MIL connectors, a 5015 inlet with a 6ft power cord, an LCD meter to show volts and amps, and switched outputs.  Optional EMI filtering, EPO, remote control & monitoring, and MIL compliance testing are available.

The unit is built to meet MIL STD 810 (Grade B), MIL 1399, and MIL STD 901D (Grade B).  Grade A available upon request.
ENCLOSURE SPECIFICATIONS
EMI Rated Enclosure Yes
Enclosure Material Aluminium/Steel
Enclosure Size 1U x 12"
Enclosure Style 19in Rack Mount
INPUT SPECIFICATIONS
Frequency 60Hz
Input Breaker UL Compliance UL 489
Input Circuit Protection Switched 20 Amp Circuit Breaker
Input Voltage 120VAC Single Phase; 208VAC Single Phase; 240VAC Single Phase
Lightning Protection (MOV) No
Phase Dual Phase (line, line, ground)
Power Cord 6ft SOOW
Total Current 20 Amps
Input Connector 5015 Circular MIL Connector
OUTPUT SPECIFICATIONS
Output Banking Scheme 2 Outlets per Circuit Breaker
Output Breaker UL Compliance UL 1077
Output Circuit Protection 5 x 15 Amp Switched Circuit Breakers
Output Connectors 10 x 5015
Output Phase Dual Phase (line, line, ground)
Output Voltage Synced to Input
PRODUCT DETAILS
Compliance ISO 9001:2016 Quality Controlled; Built to Meet MIL 810; Built to Meet MIL 1399; Built to Meet 901D Grade B
Operating Temperature 0C - 60C
TAA Compliant Yes

PDUs are built to order.  Lead times are based on production volume.  Typical lead times are below, expedited orders are available, contact us for details.

MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO

COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days

CRYPTO MINING PDUs - 20 Business Days

Have a question about the current lead time or expedited service for a unit?  Use our live chat to speak with a production representative.

Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring.  Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.

Raptor Connect can be optionally integrated into almost all of Raptor's products.  If you do not see an option to select Raptor Connect for a PDU, contact us for details.

All PDUs, standard or custom, come with a full 2-year warranty on parts and labor.  Raptor Power will, at its discretion, repair or replace any product found to be defective.  Phone support is included during the 2-year warranty period.
Don't see what you need?  Go custom!  Every unit can be customized to meet your needs or we can design from the ground up.  Contact us for details.

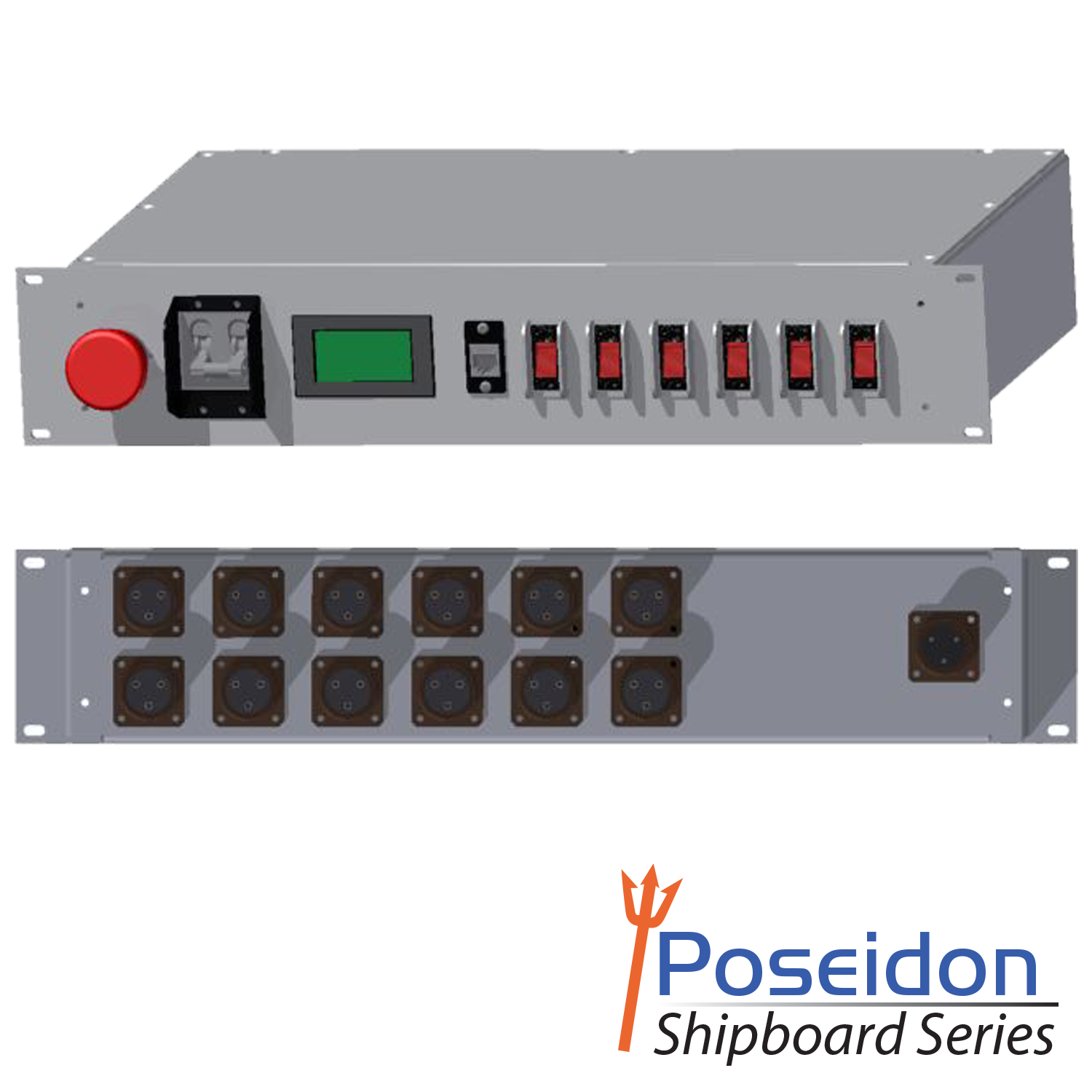

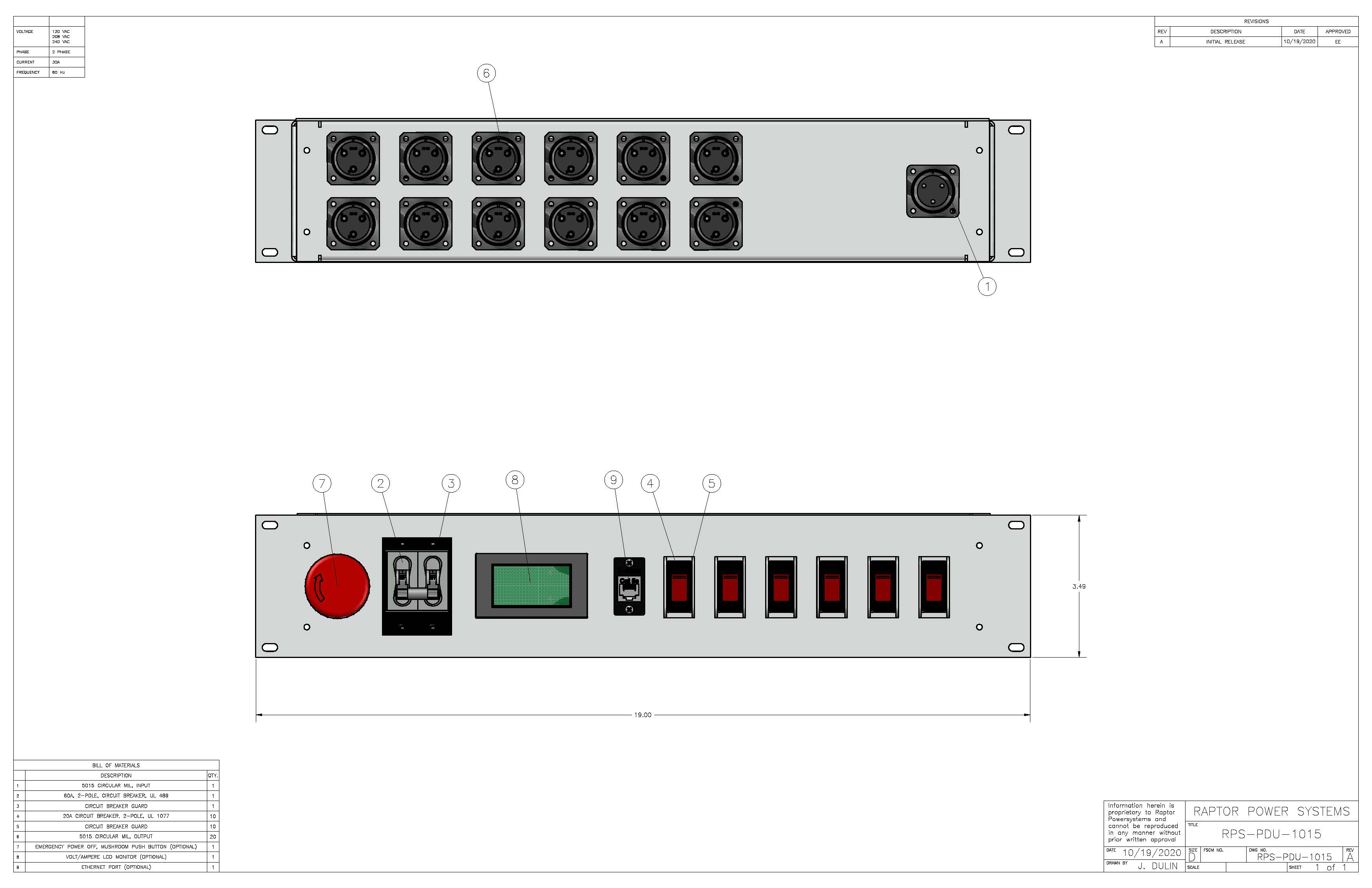

Part Number: RPS-PDU-1015

This rugged 30A, 2U MIL SPEC PDU designed for shipboard applications has 12 x 5015 circular MIL connectors, a 5015 inlet with a 6ft power cord, an LCD meter to show volts and amps, and switched outputs.  Optional EMI filtering, EPO, remote control & monitoring, and MIL compliance testing are available.

The unit is built to meet MIL STD 810 (Grade B), MIL 1399, and MIL STD 901D (Grade B).  Grade A available upon request.
ENCLOSURE SPECIFICATIONS
EMI Rated Enclosure Yes
Enclosure Material Aluminium/Steel
Enclosure Size 1U x 12"
Enclosure Style 19in Rack Mount
INPUT SPECIFICATIONS
Frequency 60Hz
Input Breaker UL Compliance UL 489
Input Circuit Protection Switched 30 Amp Circuit Breaker
Input Voltage 120VAC Single Phase; 208VAC Single Phase; 240VAC Single Phase
Lightning Protection (MOV) No
Phase Dual Phase (line, line, ground)
Power Cord 6ft SOOW
Total Current 30 Amps
Input Connector 5015 Circular MIL Connector
OUTPUT SPECIFICATIONS
Output Banking Scheme 2 Outlets per Circuit Breaker
Output Breaker UL Compliance UL 1077
Output Circuit Protection 6 x 20 Amp Switched Circuit Breakers
Output Connectors 12 x 5015
Output Phase Dual Phase (line, line, ground)
Output Voltage Synced to Input
PRODUCT DETAILS
Compliance ISO 9001:2016 Quality Controlled; Built to Meet MIL 810; Built to Meet MIL 1399; Built to Meet 901D Grade B
Operating Temperature 0C - 60C
TAA Compliant Yes

PDUs are built to order.  Lead times are based on production volume.  Typical lead times are below, expedited orders are available, contact us for details.

MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO

COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days

CRYPTO MINING PDUs - 20 Business Days

Have a question about the current lead time or expedited service for a unit?  Use our live chat to speak with a production representative.

Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring.  Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.

Raptor Connect can be optionally integrated into almost all of Raptor's products.  If you do not see an option to select Raptor Connect for a PDU, contact us for details.

All PDUs, standard or custom, come with a full 2-year warranty on parts and labor.  Raptor Power will, at its discretion, repair or replace any product found to be defective.  Phone support is included during the 2-year warranty period.
Don't see what you need?  Go custom!  Every unit can be customized to meet your needs or we can design from the ground up.  Contact us for details.

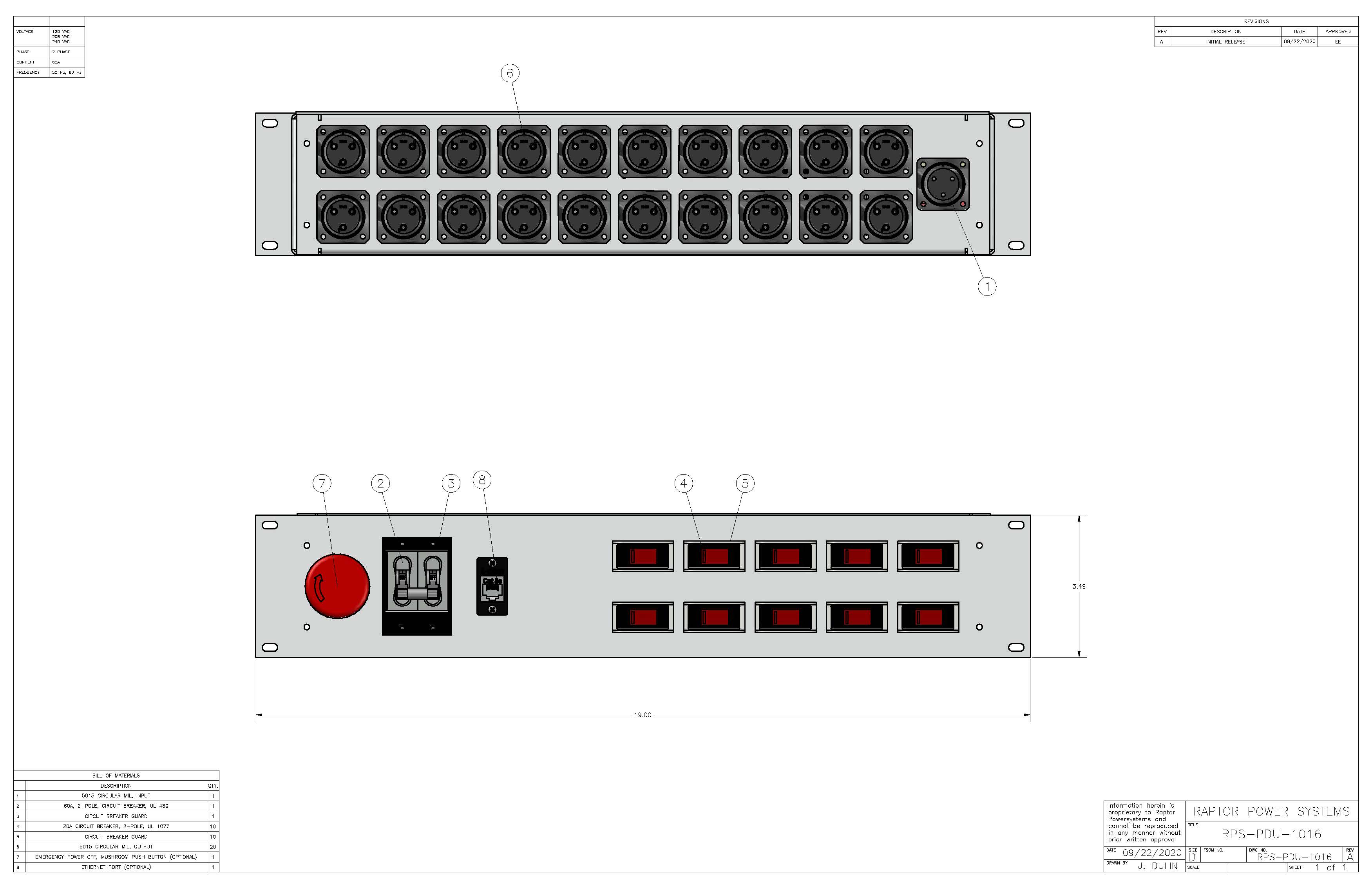

Part Number: RPS-PDU-1016

This rugged 30A, 3U MIL SPEC PDU designed for shipboard applications has 24 x 5015 circular MIL connectors, a 5015 inlet with a 6ft power cord, an LCD meter to show volts and amps, and switched outputs.  Optional EMI filtering, EPO, remote control & monitoring, and MIL compliance testing are available.

The unit is built to meet MIL STD 810 (Grade B), MIL 1399, and MIL STD 901D (Grade B).  Grade A available upon request.
ENCLOSURE SPECIFICATIONS
EMI Rated Enclosure Yes
Enclosure Material Aluminium/Steel
Enclosure Size 1U x 16"
Enclosure Style 19in Rack Mount
INPUT SPECIFICATIONS
Frequency 60Hz
Input Breaker UL Compliance UL 489
Input Circuit Protection Switched 60 Amp Circuit Breaker
Input Voltage 120VAC Single Phase; 208VAC Single Phase; 240VAC Single Phase
Lightning Protection (MOV) No
Phase Dual Phase (line, line, ground)
Power Cord 6ft SOOW
Total Current 60 Amps
Input Connector 5015 Circular MIL Connector
OUTPUT SPECIFICATIONS
Output Banking Scheme 2 Outlets per Circuit Breaker
Output Breaker UL Compliance UL 1077
Output Circuit Protection 6 x 20 Amp Switched Circuit Breakers
Output Connectors 24 x 5015
Output Phase Dual Phase (line, line, ground)
Output Voltage Synced to Input
PRODUCT DETAILS
Compliance SO 9001:2016 Quality Controlled; Built to Meet MIL 810; Built to Meet MIL 1399; Built to Meet 901D Grade B
Operating Temperature 0C - 70C
TAA Compliant Yes

PDUs are built to order.  Lead times are based on production volume.  Typical lead times are below, expedited orders are available, contact us for details.

MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO

COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days

CRYPTO MINING PDUs - 20 Business Days

Have a question about the current lead time or expedited service for a unit?  Use our live chat to speak with a production representative.

Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring.  Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.

Raptor Connect can be optionally integrated into almost all of Raptor's products.  If you do not see an option to select Raptor Connect for a PDU, contact us for details.

All PDUs, standard or custom, come with a full 2-year warranty on parts and labor.  Raptor Power will, at its discretion, repair or replace any product found to be defective.  Phone support is included during the 2-year warranty period.
Don't see what you need?  Go custom!  Every unit can be customized to meet your needs or we can design from the ground up.  Contact us for details.

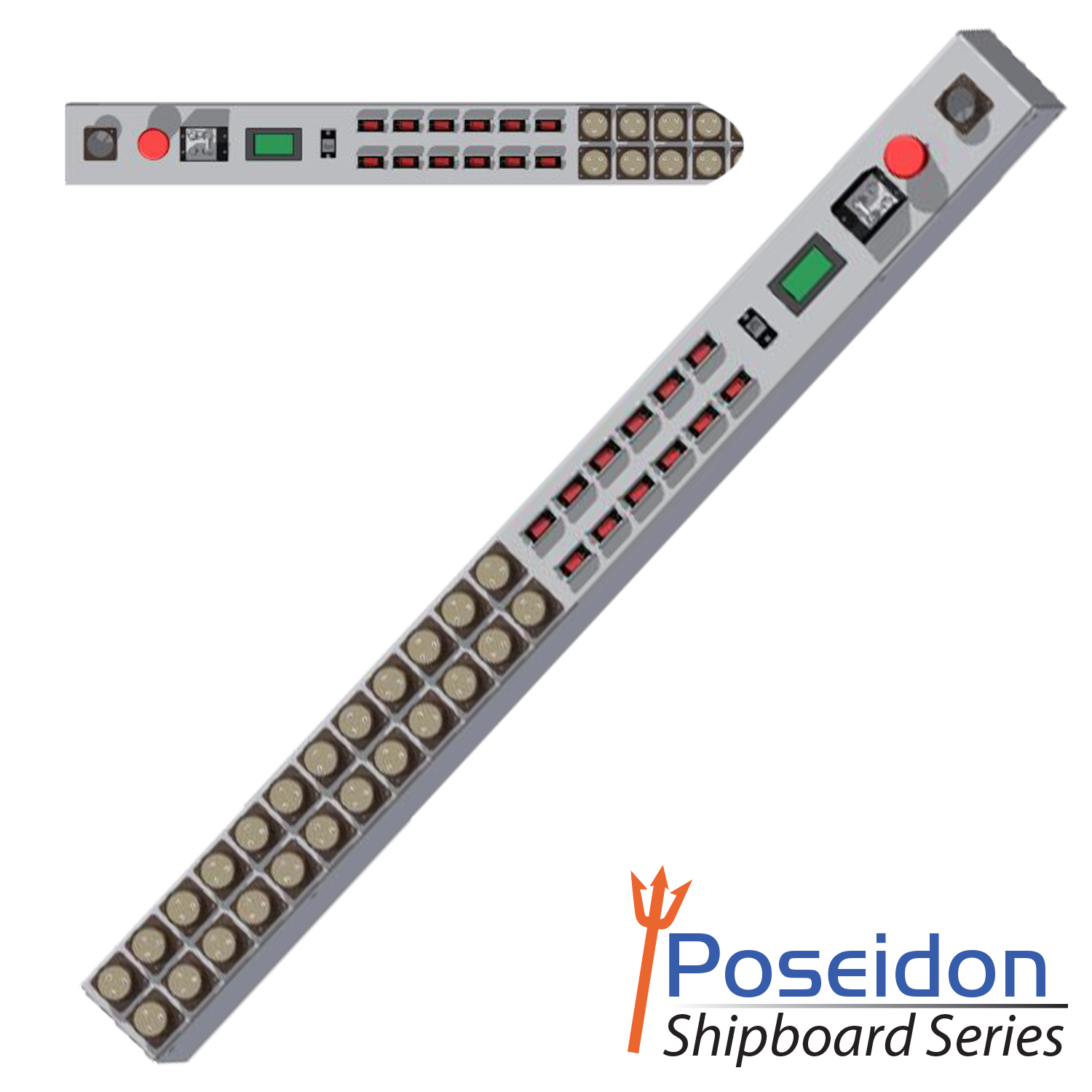

Part Number: RPS-PDU-1072

This rugged 30A, 0U, vertical mount, MIL SPEC PDU designed for shipboard applications has 24 x MS3102E16-10S circular MIL connectors, an MS3012E22-2P inlet with a 6ft power cord, switched breakered outputs, an EMI protected enclosure and a remote EPO port.  Optional remote control & monitoring and MIL compliance testing are available.

The unit is built to meet MIL STD 810 (Grade B), MIL 1399, and MIL STD 901D (Grade B).  Grade A or other MIL standards available upon request.

ENCLOSURE SPECIFICATIONS
EMI Rated Enclosure Yes
Enclosure Material Aluminium/Steel
Enclosure Size 0U x 48"
Enclosure Style 19in Rack Mount
INPUT SPECIFICATIONS
Frequency 50/60Hz
Input Breaker UL Compliance UL 489
Input Circuit Protection Switched 30 Amp Circuit Breaker
Input Voltage 0VAC Single Phase; 208VAC Single Phase; 240VAC Single Phase
Lightning Protection (MOV) No
Phase Dual Phase (line, line, ground)
Power Cord 6ft SOOW
Total Current 30 Amps
Input Connector MS3012E22-2P Circular MIL Connector
OUTPUT SPECIFICATIONS
Output Banking Scheme 2 Outlets per Circuit Breaker
Output Breaker UL Compliance UL 1077
Output Circuit Protection 12 x 15 Amp Switched Circuit Breakers
Output Connectors 24 x MS3102E16-10S
Output Phase Dual Phase (line, line, ground)
Output Voltage Synced to Input
PRODUCT DETAILS
Compliance ISO 9001:2016 Quality Controlled; Built to Meet MIL 810; Built to Meet MIL 1399; Built to Meet 901D Grade B
Operating Temperature 0C - 60C
TAA Compliant Yes

PDUs are built to order.  Lead times are based on production volume.  Typical lead times are below, expedited orders are available, contact us for details.

MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO

COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days

CRYPTO MINING PDUs - 20 Business Days

Have a question about the current lead time or expedited service for a unit?  Use our live chat to speak with a production representative.

Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring.  Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.

Raptor Connect can be optionally integrated into almost all of Raptor's products.  If you do not see an option to select Raptor Connect for a PDU, contact us for details.

All PDUs, standard or custom, come with a full 2-year warranty on parts and labor.  Raptor Power will, at its discretion, repair or replace any product found to be defective.  Phone support is included during the 2-year warranty period.
Don't see what you need?  Go custom!  Every unit can be customized to meet your needs or we can design from the ground up.  Contact us for details.

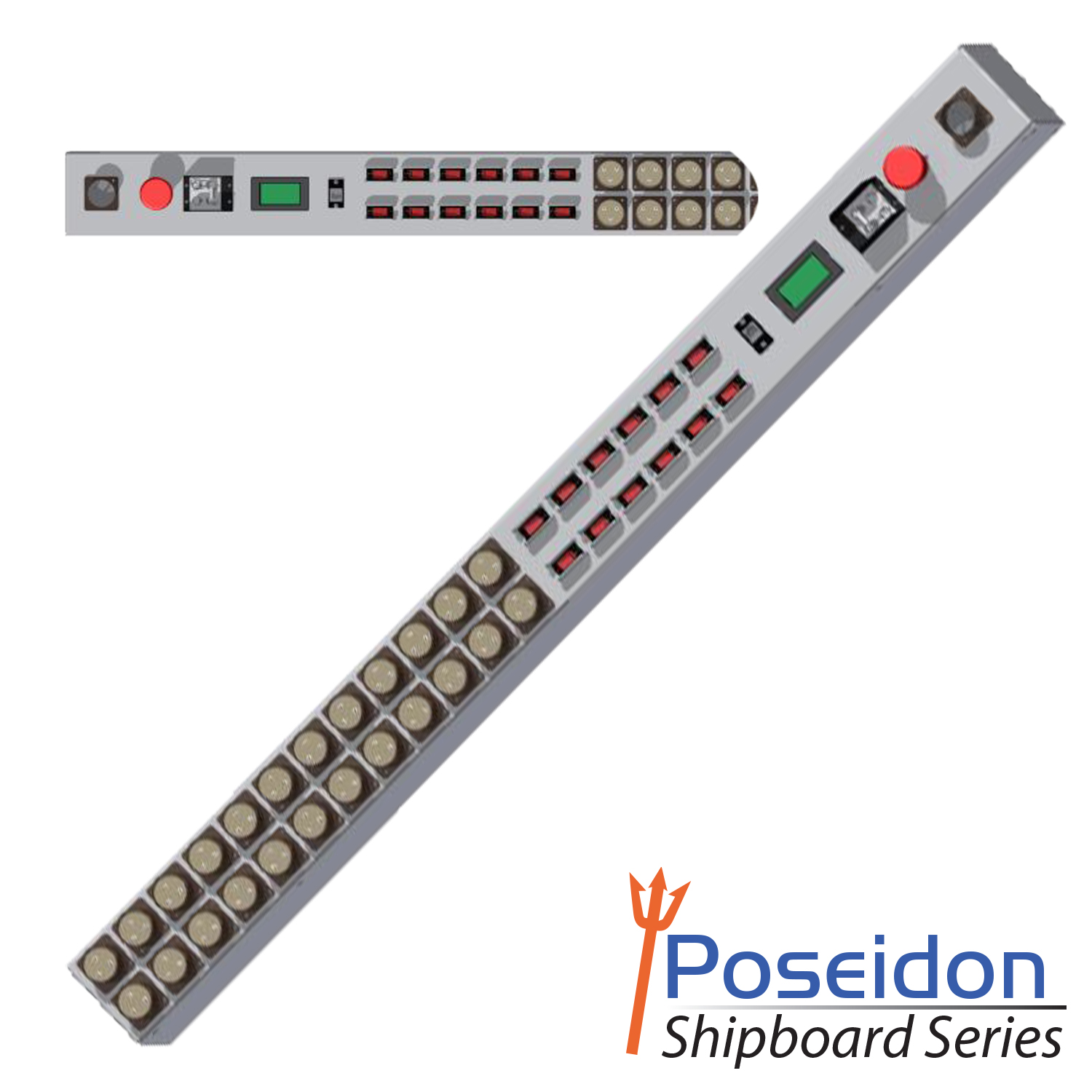

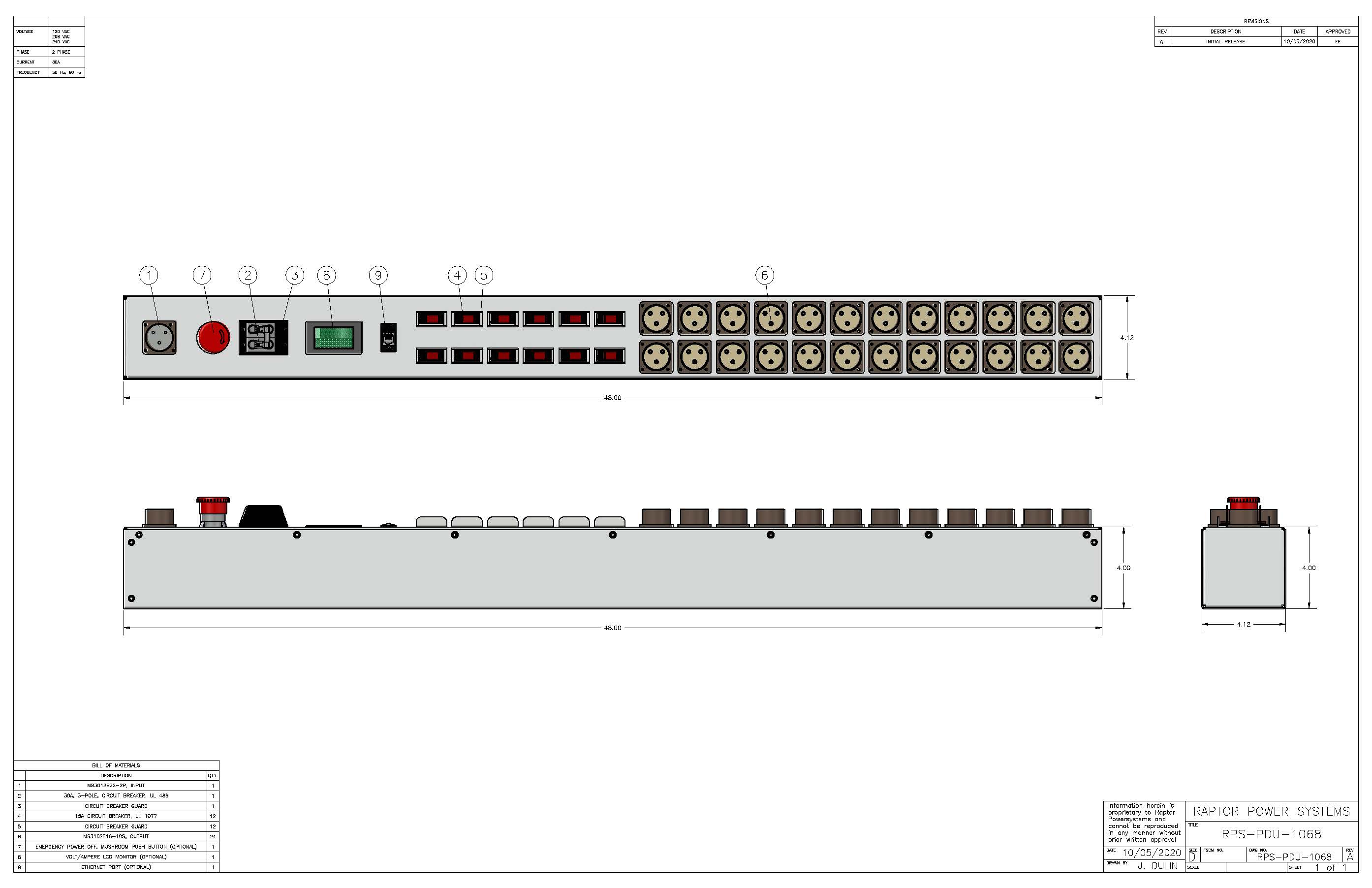

Part Number: RPS-PDU-1068

This rugged 30A, 0U, vertical mount, MIL SPEC PDU designed for shipboard applications has 24 x MS3102E16-10S circular MIL connectors, an MS3012E22-2P inlet with a 6ft power cord, switched breakered outputs, an EMI protected enclosure and a remote EPO port.  Optional remote control & monitoring and MIL compliance testing are available.

The unit is built to meet MIL STD 810 (Grade B), MIL 1399, and MIL STD 901D (Grade B).  Grade A or other MIL standards available upon request.

ENCLOSURE SPECIFICATIONS
EMI Rated Enclosure Yes
Enclosure Material Aluminium/Steel
Enclosure Size 0U x 48"
Enclosure Style 19in Rack Mount
INPUT SPECIFICATIONS
Frequency 50/60Hz
Input Breaker UL Compliance UL 489
Input Circuit Protection Switched 30 Amp Circuit Breaker
Input Voltage 120VAC Single Phase; 208VAC Single Phase; 240VAC Single Phase
Lightning Protection (MOV) No
Phase Dual Phase (line, line, ground)
Power Cord 6ft SOOW
Total Current 30 Amps
Input Connector MS3012E22-2P Circular MIL Connector
OUTPUT SPECIFICATIONS
Output Banking Scheme 2 Outlets per Circuit Breaker
Output Breaker UL Compliance UL 1077
Output Circuit Protection 12 x 15 Amp Switched Circuit Breakers
Output Connectors 24 x MS3102E16-10S
Output Phase Dual Phase (line, line, ground)
Output Voltage Synced to Input
PRODUCT DETAILS
Compliance ISO 9001:2016 Quality Controlled; Built to Meet MIL 810; Built to Meet MIL 1399; Built to Meet 901D Grade B
Operating Temperature 0C - 60C
TAA Compliant Yes

PDUs are built to order.  Lead times are based on production volume.  Typical lead times are below, expedited orders are available, contact us for details.

MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO

COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days

CRYPTO MINING PDUs - 20 Business Days

Have a question about the current lead time or expedited service for a unit?  Use our live chat to speak with a production representative.

Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring.  Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.

Raptor Connect can be optionally integrated into almost all of Raptor's products.  If you do not see an option to select Raptor Connect for a PDU, contact us for details.

All PDUs, standard or custom, come with a full 2-year warranty on parts and labor.  Raptor Power will, at its discretion, repair or replace any product found to be defective.  Phone support is included during the 2-year warranty period.
Don't see what you need?  Go custom!  Every unit can be customized to meet your needs or we can design from the ground up.  Contact us for details.

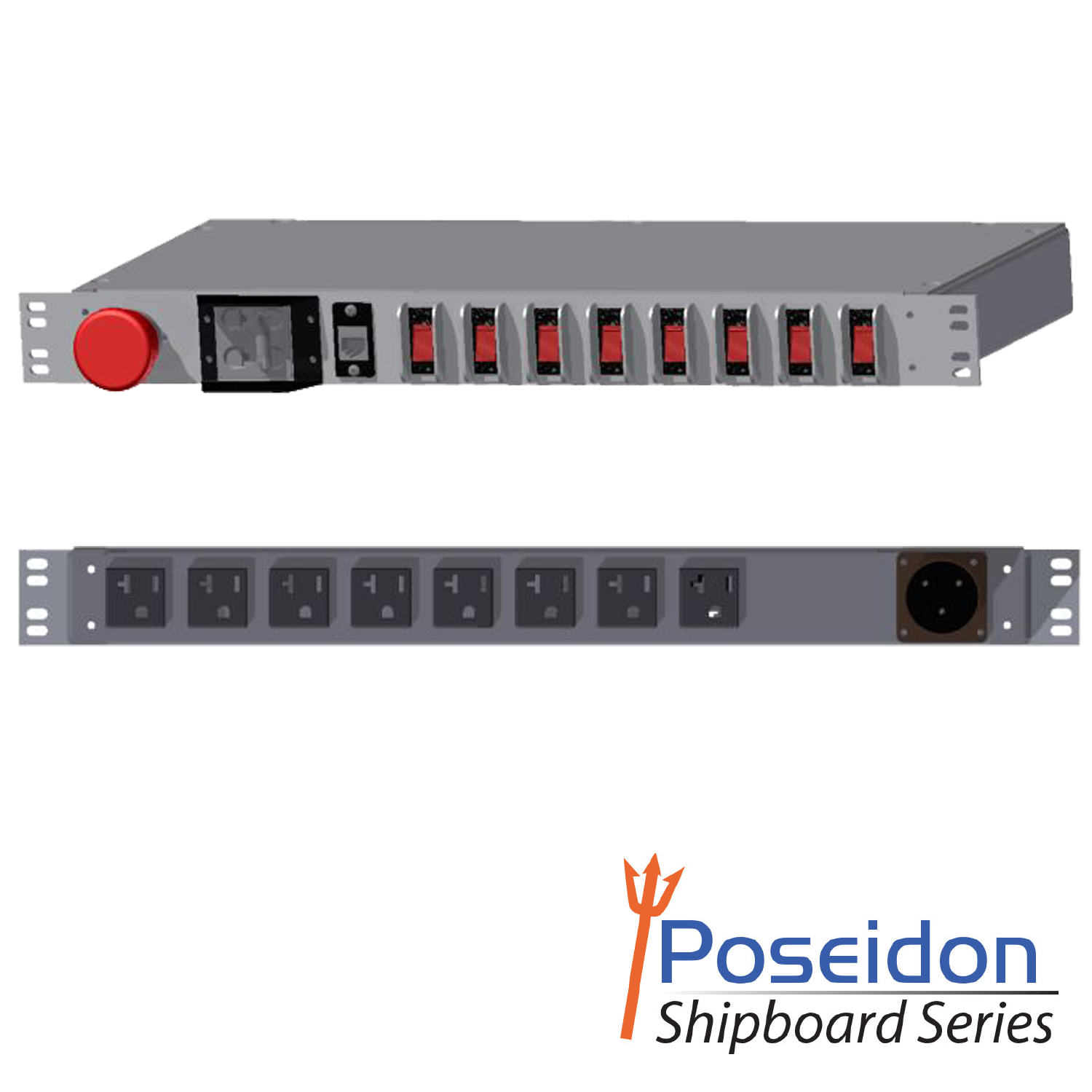

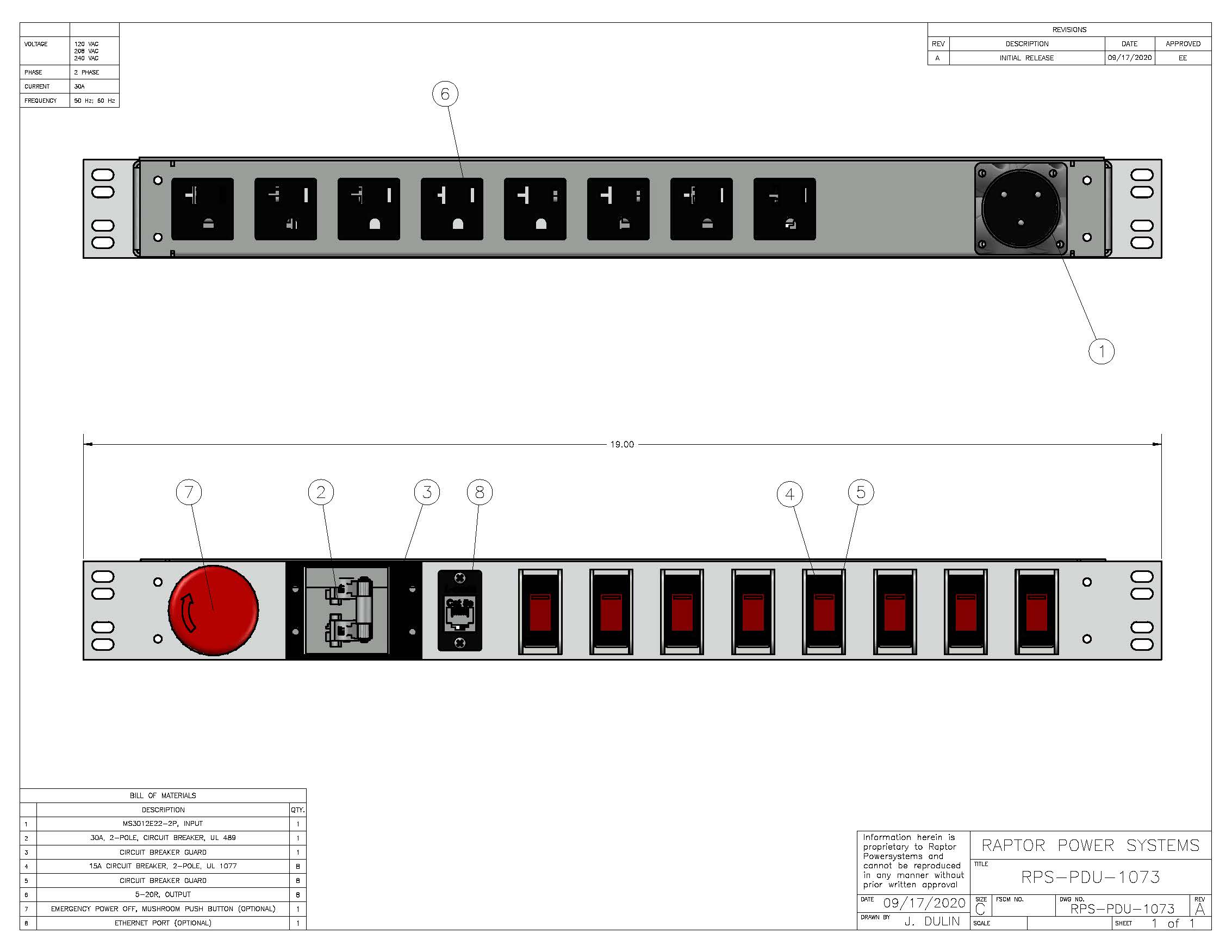

Part Number: RPS-PDU-1073

This rugged 30A, 1U MIL SPEC PDU designed for shipboard applications has 8 x 5-15R outlets, an MS3012E22-2P inlet with a 6ft power cord, switched breakered outputs, an EMI protected enclosure and a remote EPO port.  Optional remote control & monitoring, and MIL compliance testing are available.

The unit is built to meet MIL STD 810 (Grade B), MIL 1399, and MIL STD 901D (Grade B).  Grade A or other MIL standards available upon request.

ENCLOSURE SPECIFICATIONS
EMI Rated Enclosure Yes
Enclosure Material Aluminium/Steel
Enclosure Size 1U x 12"
Enclosure Style 19in Rack Mount
INPUT SPECIFICATIONS
Frequency 50/60Hz
Input Breaker UL Compliance UL 489
Input Circuit Protection Switched 30 Amp Circuit Breaker
Input Voltage 120VAC Single Phase; 208VAC Single Phase; 240VAC Single Phase
Lightning Protection (MOV) No
Phase Dual Phase (line, line, ground)
Power Cord 6ft SOOW
Total Current 30 Amps
Input Connector MS3012E22-2P Circular MIL Connector
OUTPUT SPECIFICATIONS
Output Banking Scheme 1 Outlets per Circuit Breaker
Output Breaker UL Compliance UL 1077
Output Circuit Protection 8 x 15 Amp Switched Circuit Breakers
Output Connectors 8 x 5-20R
Output Phase Dual Phase (line, line, ground)
Output Voltage Synced to Input
PRODUCT DETAILS
Compliance ISO 9001:2016 Quality Controlled; Built to Meet MIL 810; Built to Meet MIL 1399; Built to Meet 901D Grade B
Operating Temperature 0C - 60C
TAA Compliant Yes

PDUs are built to order.  Lead times are based on production volume.  Typical lead times are below, expedited orders are available, contact us for details.

MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO

COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days

CRYPTO MINING PDUs - 20 Business Days

Have a question about the current lead time or expedited service for a unit?  Use our live chat to speak with a production representative.

Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring.  Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.

Raptor Connect can be optionally integrated into almost all of Raptor's products.  If you do not see an option to select Raptor Connect for a PDU, contact us for details.

All PDUs, standard or custom, come with a full 2-year warranty on parts and labor.  Raptor Power will, at its discretion, repair or replace any product found to be defective.  Phone support is included during the 2-year warranty period.
Don't see what you need?  Go custom!  Every unit can be customized to meet your needs or we can design from the ground up.  Contact us for details.

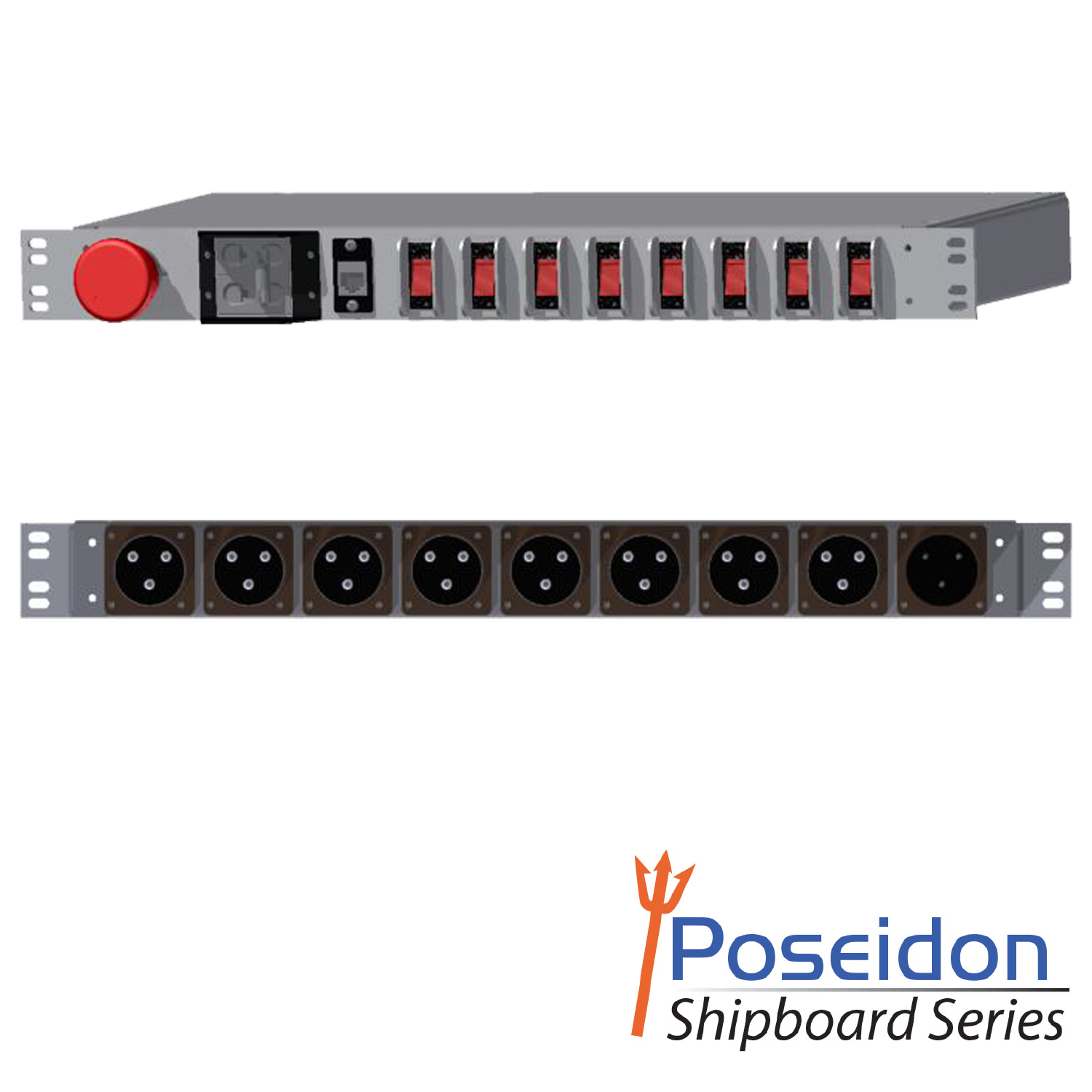

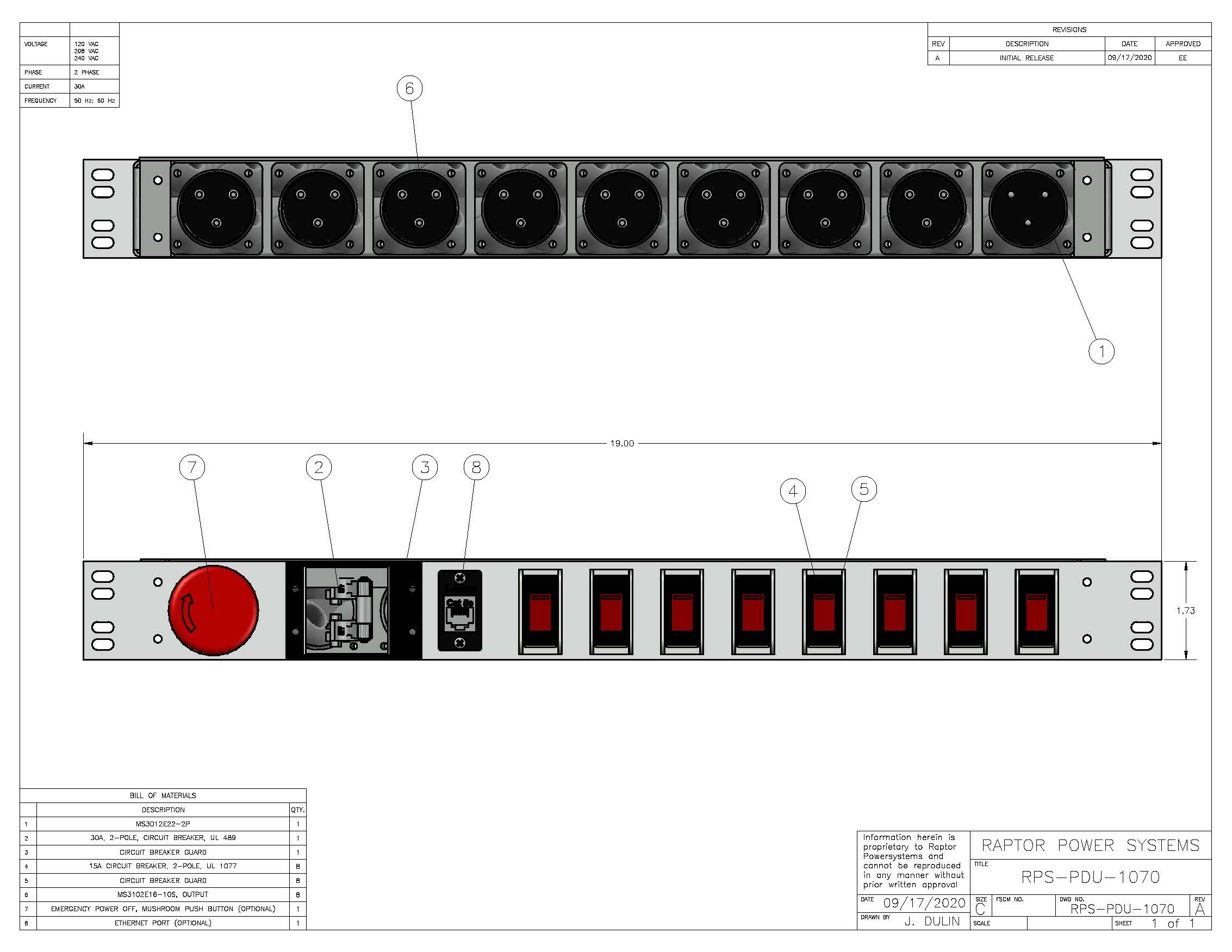

Part Number: RPS-PDU-1070

This rugged 30A, 1U MIL SPEC PDU designed for shipboard applications has 8 x MS3102E16-10S circular MIL connectors, an MS3012E22-2P inlet with a 6ft power cord, switched breakered outputs, and EMI protected enclosure and a remote EPO port.  Optional remote control & monitoring, and MIL compliance testing are available.

The unit is built to meet MIL STD 810 (Grade B), MIL 1399, and MIL STD 901D (Grade B).  Grade A or other MIL standards available upon request.

ENCLOSURE SPECIFICATIONS
EMI Rated Enclosure Yes
Enclosure Material Aluminium/Steel
Enclosure Size 1U x 12"
Enclosure Style 19in Rack Mount
INPUT SPECIFICATIONS
Frequency 50/60Hz
Input Breaker UL Compliance UL 489
Input Circuit Protection Switched 30 Amp Circuit Breaker
Input Voltage 120VAC Single Phase; 208VAC Single Phase; 240VAC Single Phase
Lightning Protection (MOV) No
Phase Dual Phase (line, line, ground)
Power Cord 6ft SOOW
Total Current 30 Amps
Input Connector MS3012E22-2P Circular MIL Connector
OUTPUT SPECIFICATIONS
Output Banking Scheme 1 Outlets per Circuit Breaker
Output Breaker UL Compliance UL 1077
Output Circuit Protection 8 x 15 Amp Switched Circuit Breakers
Output Connectors 8 x MS3102E16-10S
Output Phase Dual Phase (line, line, ground)
Output Voltage Synced to Input
PRODUCT DETAILS
Compliance ISO 9001:2016 Quality Controlled; Built to Meet MIL 810; Built to Meet MIL 1399; Built to Meet 901D Grade B
Operating Temperature 0C - 60C
TAA Compliant Yes

PDUs are built to order.  Lead times are based on production volume.  Typical lead times are below, expedited orders are available, contact us for details.

MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO

COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days

CRYPTO MINING PDUs - 20 Business Days

Have a question about the current lead time or expedited service for a unit?  Use our live chat to speak with a production representative.

Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring.  Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.

Raptor Connect can be optionally integrated into almost all of Raptor's products.  If you do not see an option to select Raptor Connect for a PDU, contact us for details.

All PDUs, standard or custom, come with a full 2-year warranty on parts and labor.  Raptor Power will, at its discretion, repair or replace any product found to be defective.  Phone support is included during the 2-year warranty period.
Don't see what you need?  Go custom!  Every unit can be customized to meet your needs or we can design from the ground up.  Contact us for details.

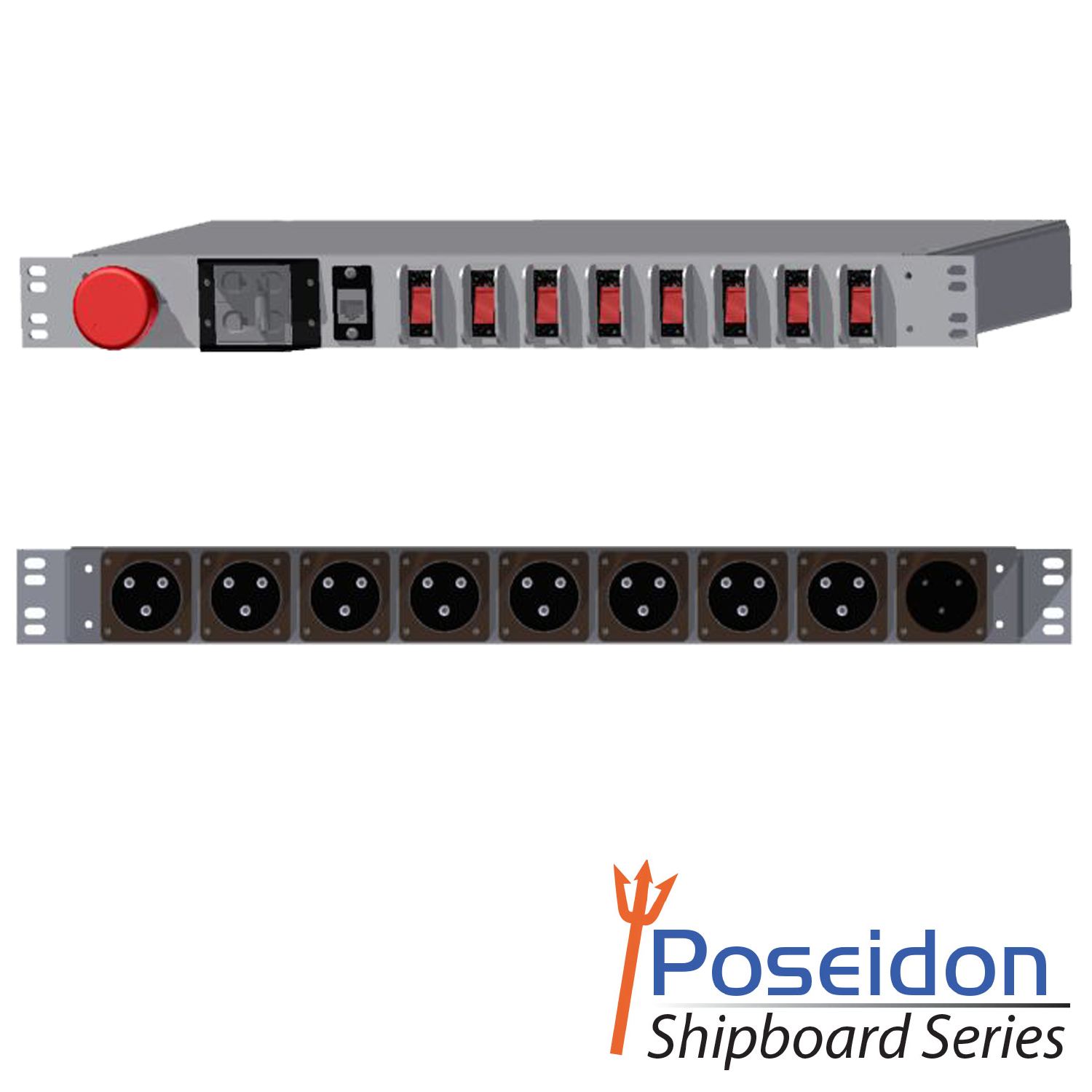

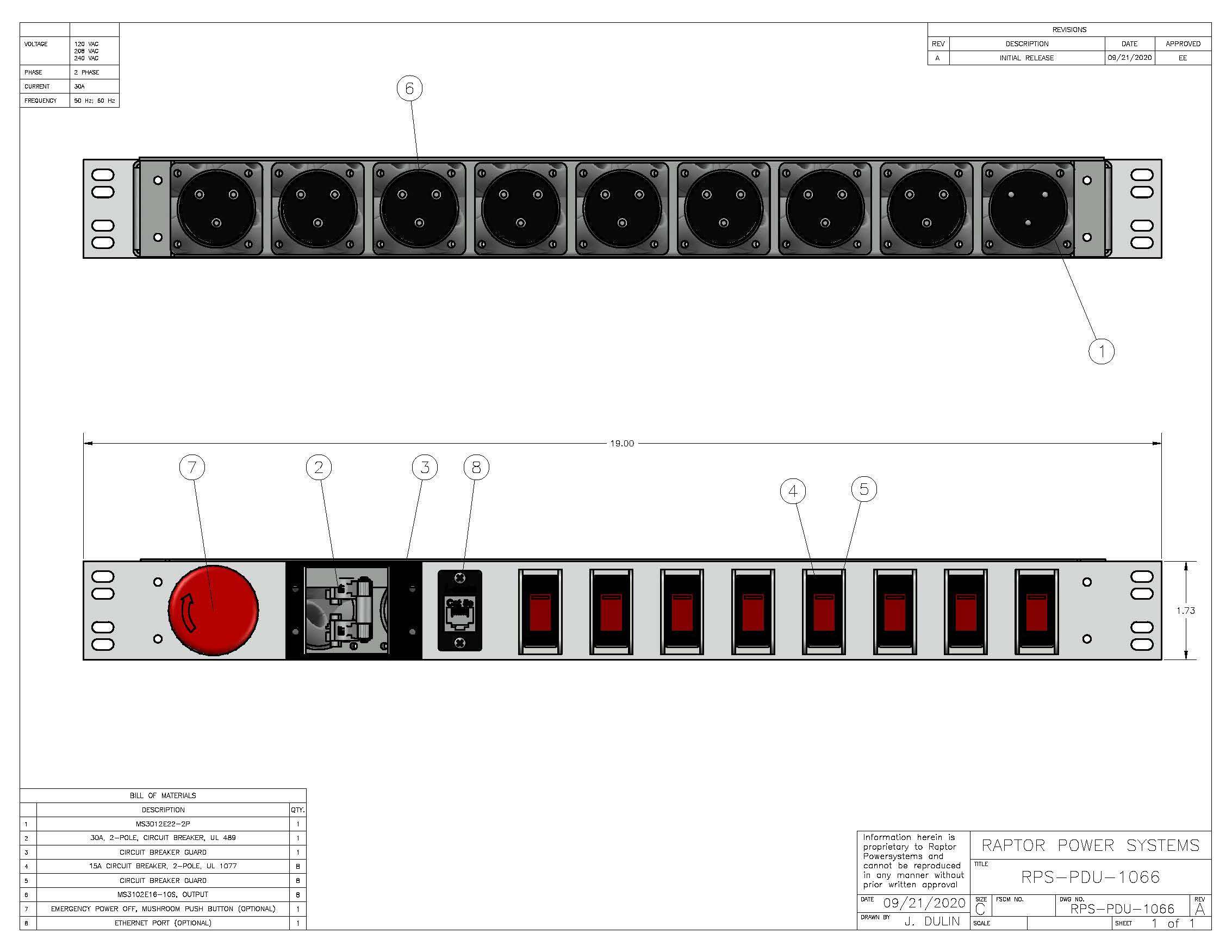

Part Number: RPS-PDU-1066

This rugged 30A, 1U MIL SPEC PDU designed for shipboard applications has 8 x MS3102E16-10S circular MIL connectors, an MS3012E22-2P inlet with a 6ft power cord, switched breakered outputs, and EMI protected enclosure and a remote EPO port.  Optional remote control & monitoring, and MIL compliance testing are available.

The unit is built to meet MIL STD 810 (Grade B), MIL 1399, and MIL STD 901D (Grade B).  Grade A or other MIL standards available upon request.

ENCLOSURE SPECIFICATIONS
EMI Rated Enclosure Yes
Enclosure Material Aluminium/Steel
Enclosure Size 1U x 12"
Enclosure Style 19in Rack Mount
INPUT SPECIFICATIONS
Frequency 50/60Hz
Input Breaker UL Compliance UL 489
Input Circuit Protection Switched 30 Amp Circuit Breaker
Input Voltage 120VAC Single Phase; 208VAC Single Phase; 240VAC Single Phase
Lightning Protection (MOV) No
Phase Dual Phase (line, line, ground)
Power Cord 6ft SOOW
Total Current 30 Amps
Input Connector MS3012E22-2P Circular MIL Connector
OUTPUT SPECIFICATIONS
Output Banking Scheme 1 Outlet per Circuit Breaker
Output Breaker UL Compliance UL 1077
Output Circuit Protection 8 x 15 Amp Switched Circuit Breakers
Output Connectors 8 x MS3102E16-10S
Output Phase Dual Phase (line, line, ground)
Output Voltage Synced to Input
PRODUCT DETAILS
Compliance ISO 9001:2016 Quality Controlled; Built to Meet MIL 810; Built to Meet MIL 1399; Built to Meet 901D Grade B
Operating Temperature 0C - 60C
TAA Compliant Yes

PDUs are built to order.  Lead times are based on production volume.  Typical lead times are below, expedited orders are available, contact us for details.

MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO

COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days

CRYPTO MINING PDUs - 20 Business Days

Have a question about the current lead time or expedited service for a unit?  Use our live chat to speak with a production representative.

Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring.  Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.

Raptor Connect can be optionally integrated into almost all of Raptor's products.  If you do not see an option to select Raptor Connect for a PDU, contact us for details.

All PDUs, standard or custom, come with a full 2-year warranty on parts and labor.  Raptor Power will, at its discretion, repair or replace any product found to be defective.  Phone support is included during the 2-year warranty period.
Don't see what you need?  Go custom!  Every unit can be customized to meet your needs or we can design from the ground up.  Contact us for details.

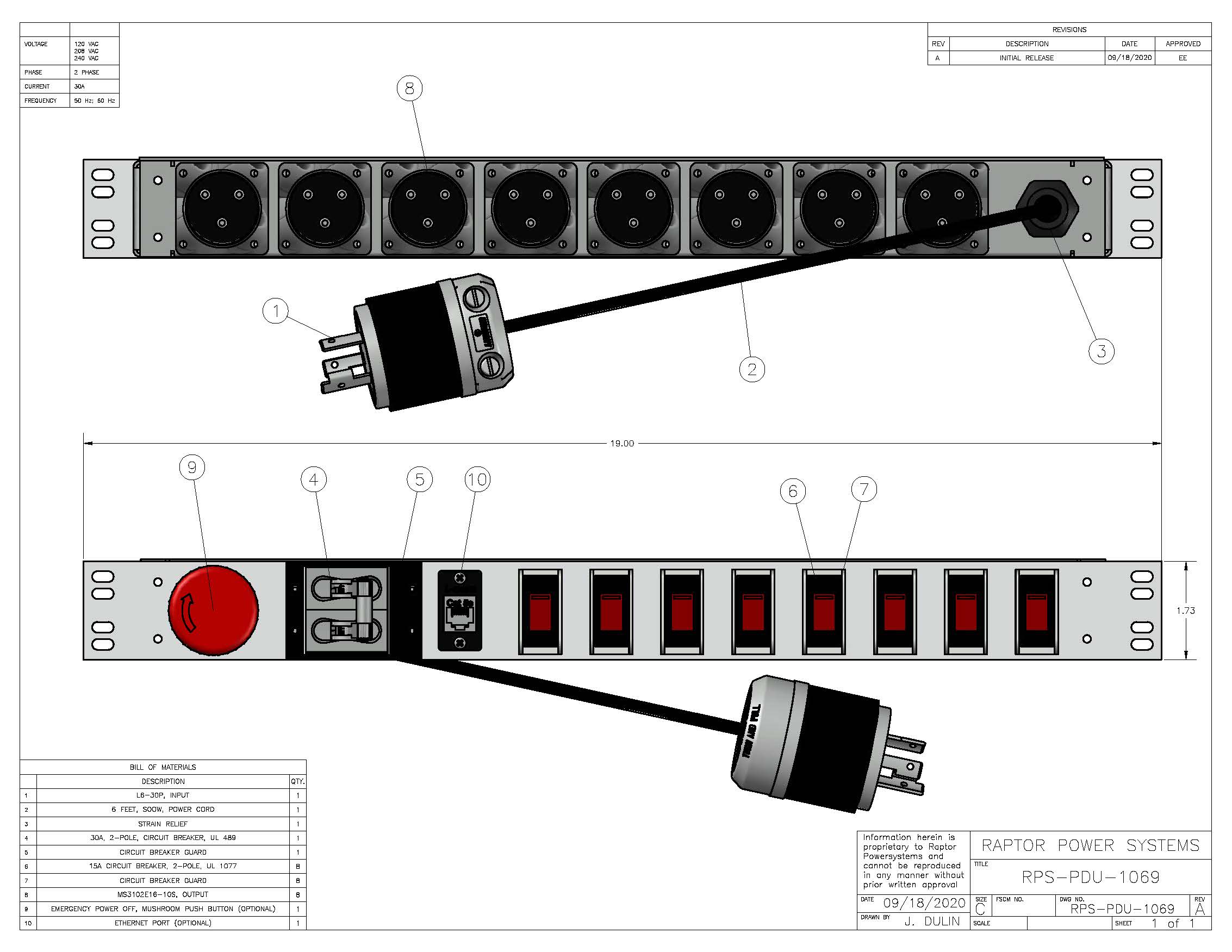

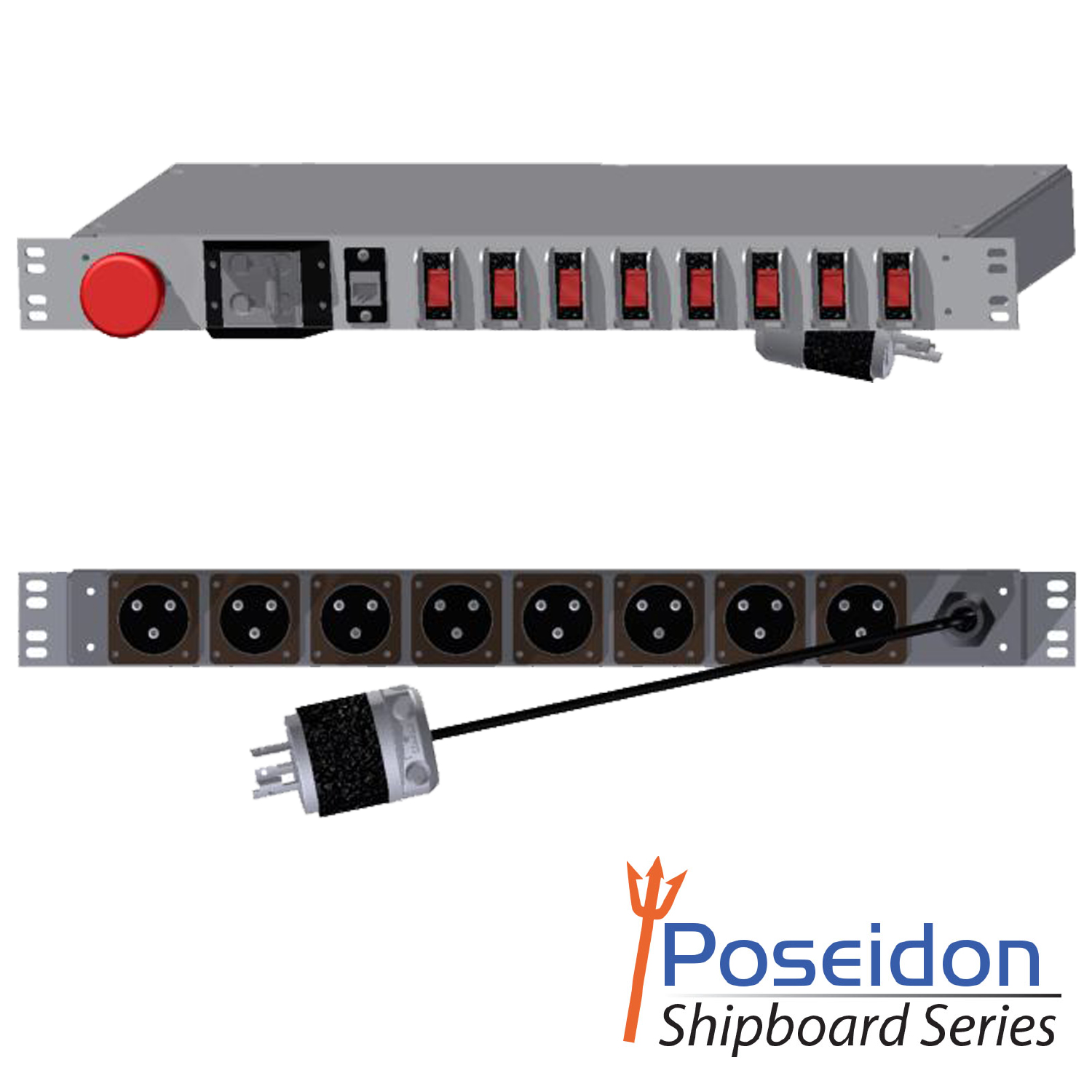

Part Number: RPS-PDU-1069

This rugged 30A, 1U MIL SPEC PDU designed for shipboard  applications has 8 x MS3102E16-10S circular MIL connectors, an L6-30P inlet with a 6ft power cord, switched breakered outputs, and EMI protected enclosure and a remote EPO port.  Optional remote control & monitoring, and MIL compliance testing are available.

The unit is built to meet MIL STD 810 (Grade B), MIL 1399, and MIL STD 901D (Grade B).  Grade A or other MIL standards available upon request.

ENCLOSURE SPECIFICATIONS
EMI Rated Enclosure Yes
Enclosure Material Aluminium/Steel
Enclosure Size 1U x 12"
Enclosure Style 19in Rack Mount
INPUT SPECIFICATIONS
Frequency 50/60Hz
Input Breaker UL Compliance UL 489
Input Circuit Protection Switched 30 Amp Circuit Breaker
Input Voltage 120VAC Single Phase; 208VAC Single Phase; 240VAC Single Phase
Lightning Protection (MOV) No
Phase Dual Phase (line, line, ground)
Power Cord 6ft SOOW
Total Current 30 Amps
Input Connector MS3012E22-2P Circular MIL Connector
OUTPUT SPECIFICATIONS
Output Banking Scheme 1 Outlet per Circuit Breaker
Output Breaker UL Compliance UL 1077
Output Circuit Protection 8 x 15 Amp Switched Circuit Breakers
Output Connectors 8 x MS3102E16-10S
Output Phase Dual Phase (line, line, ground)
Output Voltage Synced to Input
PRODUCT DETAILS
Compliance ISO 9001:2016 Quality Controlled; Built to Meet MIL 810; Built to Meet MIL 1399; Built to Meet 901D Grade B
Operating Temperature 0C - 60C
TAA Compliant Yes

PDUs are built to order.  Lead times are based on production volume.  Typical lead times are below, expedited orders are available, contact us for details.

MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO

COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days

CRYPTO MINING PDUs - 20 Business Days

Have a question about the current lead time or expedited service for a unit?  Use our live chat to speak with a production representative.

Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring.  Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.

Raptor Connect can be optionally integrated into almost all of Raptor's products.  If you do not see an option to select Raptor Connect for a PDU, contact us for details.

All PDUs, standard or custom, come with a full 2-year warranty on parts and labor.  Raptor Power will, at its discretion, repair or replace any product found to be defective.  Phone support is included during the 2-year warranty period.
Don't see what you need?  Go custom!  Every unit can be customized to meet your needs or we can design from the ground up.  Contact us for details.

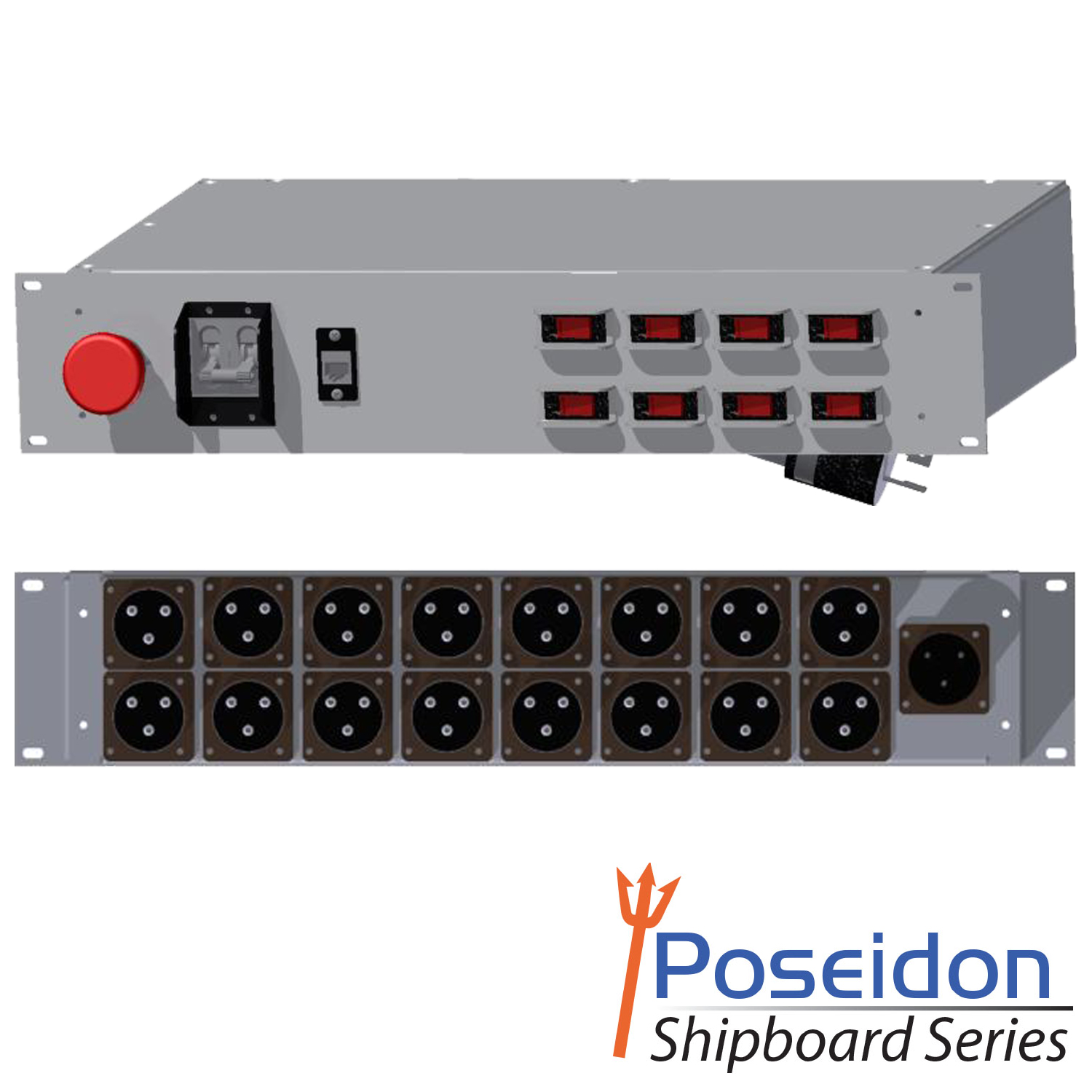

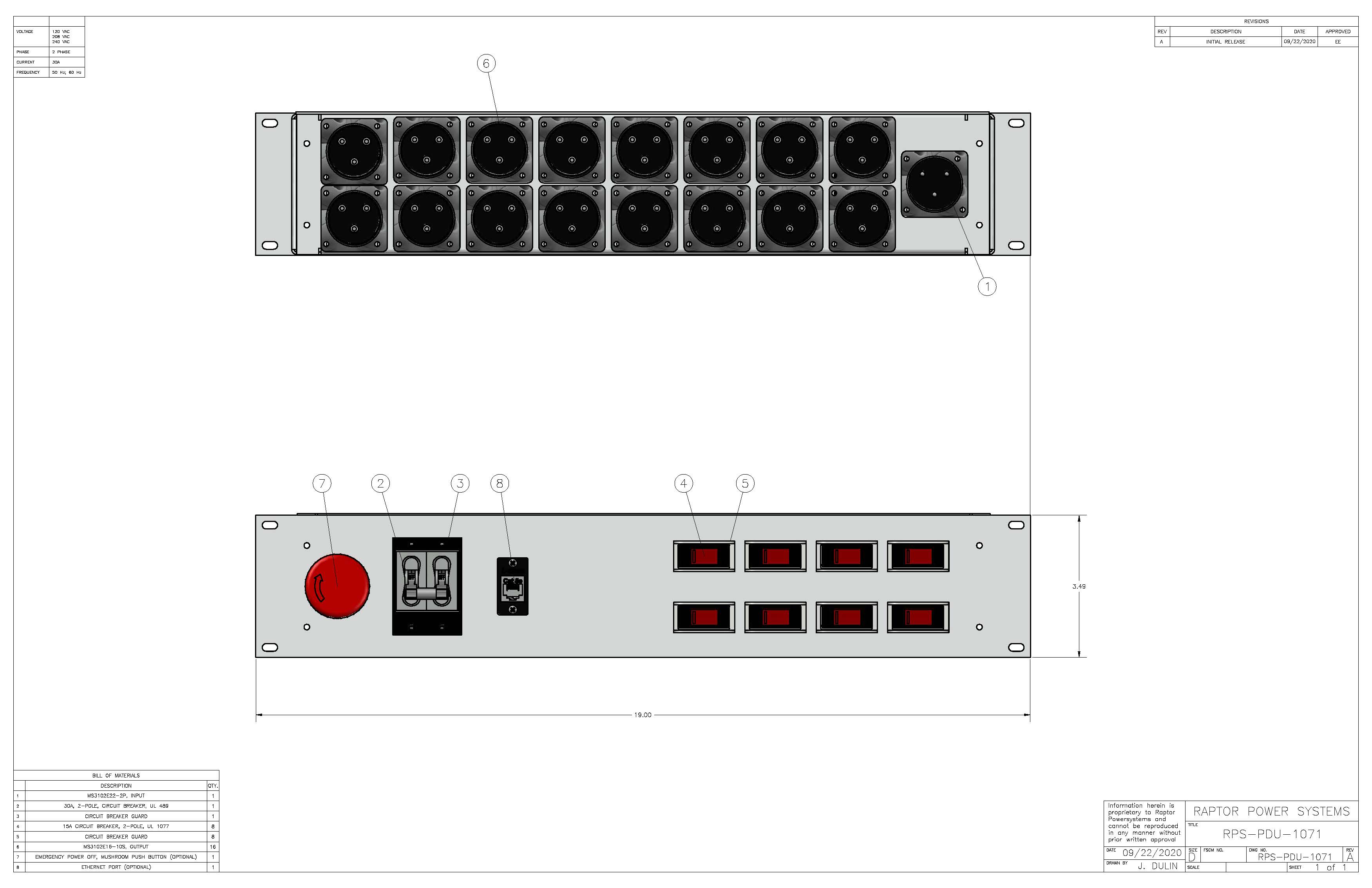

Part Number: RPS-PDU-1071

This rugged 30A, 2U MIL SPEC PDU designed for shipboard  applications has 16 x MS3102E16-10S circular MIL connectors, an MS3012E22-2P inlet with a 6ft power cord, switched breakered outputs, and EMI protected enclosure and a remote EPO port.  Optional remote control & monitoring, and MIL compliance testing are available.

The unit is built to meet MIL STD 810 (Grade B), MIL 1399, and MIL STD 901D (Grade B).  Grade A or other MIL standards available upon request.

ENCLOSURE SPECIFICATIONS
EMI Rated Enclosure Yes
Enclosure Material Aluminium/Steel
Enclosure Size 2U x 12"
Enclosure Style 19in Rack Mount
INPUT SPECIFICATIONS
Frequency 50/60Hz
Input Breaker UL Compliance UL 489
Input Circuit Protection Switched 30 Amp Circuit Breaker
Input Voltage 120VAC Single Phase; 208VAC Single Phase; 240VAC Single Phase
Lightning Protection (MOV) No
Phase Dual Phase (line, line, ground)
Power Cord 6ft SOOW
Total Current 30 Amps
Input Connector MS3012E22-2P Circular MIL Connector
OUTPUT SPECIFICATIONS
Output Banking Scheme 2 Outlets per Circuit Breaker
Output Breaker UL Compliance UL 1077
Output Circuit Protection 8 x 15 Amp Switched Circuit Breakers
Output Connectors 16 x MS3102E16-10S
Output Phase Dual Phase (line, line, ground)
Output Voltage Synced to Input
PRODUCT DETAILS
Compliance ISO 9001:2016 Quality Controlled; Built to Meet MIL 810; Built to Meet MIL 1399; Built to Meet 901D Grade B
Operating Temperature 0C - 60C
TAA Compliant Yes

PDUs are built to order.  Lead times are based on production volume.  Typical lead times are below, expedited orders are available, contact us for details.

MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO

COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days

CRYPTO MINING PDUs - 20 Business Days

Have a question about the current lead time or expedited service for a unit?  Use our live chat to speak with a production representative.

Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring.  Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.

Raptor Connect can be optionally integrated into almost all of Raptor's products.  If you do not see an option to select Raptor Connect for a PDU, contact us for details.

All PDUs, standard or custom, come with a full 2-year warranty on parts and labor.  Raptor Power will, at its discretion, repair or replace any product found to be defective.  Phone support is included during the 2-year warranty period.
Don't see what you need?  Go custom!  Every unit can be customized to meet your needs or we can design from the ground up.  Contact us for details.
Mission-critical
custom and standard
PDUs and UPS systems
© 2024, Raptor Power Systems

Contact

Toll Free: (800) 258-0129
info@raptorpowersystems.com

Sales / Engineering
3611 N Staley Road STE D
Champaign, IL 61853

Manufacturing
607 Industrial Way W
Eatontown, NJ 07724

Search
