Complete Power Infrastructure for Crypto Mining
Power Systems from 100kVA to 800kVA
What is a Crypto Hub Mini?
Choosing the right sized power equipment can be a challenge. The CryptoHub Mini takes the confusion out of this process. Choose from the pre-engineered power configurations below to ensure your package is sized perfectly for your mining operation and you get the maximum usage from your power source.

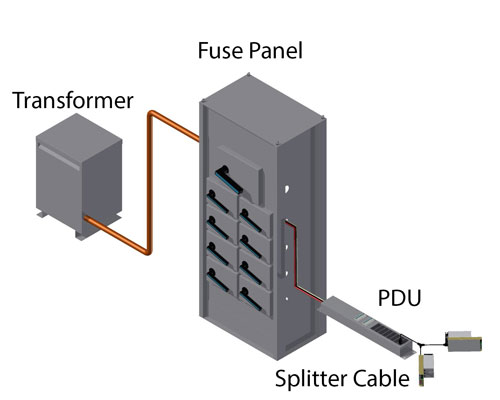

The CryptoHub is broken down into four parts, the transformer, fuse panel, PDU (Crypto Minotaur), and splitter cables (Medusa Cables). Below is a breakdown of each part of the system. It is important to note that each component of the system can be purchased individually, for example, you could only buy PDUs or splitter cables. Check out our other pages to buy components separately.
Four Parts of A Crypto Hub Mini System
Transformer
Transformers for the CryptoHub come in 100kVA, 200kVA, 300kVA, 400kVA, 500kVA, 600kVA, 700kVA, and 800kVA, and can accept 208V, 480V, or a 600V 3 phase input, always outputting 415V/240V.
Fuse Panel
Fuse panels are manufactured to match the transformer size of the package. They come with a main input fuse and feeder fuses which are perfectly sized for a Crypto Minotaur PDU.
Minotaur PDU
The Crypto Minotaur is a versatile 0U, 384 amp (128A per phase), PDU designed specifically for crypto mining applications and is built to perfectly match the included fuse panels.
Splitter Cables
Specially made splitter cables double the Minotaur’s outlet capacity and streamline the installation of S-19 and other dual input miners. Cables are not needed for single-input miners.
| Input Voltage | Output Voltage | Total kVA | # of 3500W Miners | Part Number | Spec Sheet | Link to Purchase |
|---|---|---|---|---|---|---|
| 480V 3 Phase | 240V/415V | 100kVA | 1 to 24 | RPS-CHM-480-100-84 | View Spec Sheet | Buy Online |
| 480V 3 Phase | 240V/415V | 200kVA | 25 to 48 | RPS-CHM-480-200-84 | View Spec Sheet | Buy Online |
| 480V 3 Phase | 240V/415V | 300kVA | 49 to 72 | RPS-CHM-480-300-84 | View Spec Sheet | Buy Online |
| 480V 3 Phase | 240V/415V | 400kVA | 73 to 96 | RPS-CHM-480-400-84 | View Spec Sheet | Buy Online |
| 480V 3 Phase | 240V/415V | 500kVA | 97 to 120 | RPS-CHM-480-500-84 | View Spec Sheet | Buy Online |
| 480V 3 Phase | 240V/415V | 600kVA | 121 to 144 | RPS-CHM-480-600-84 | View Spec Sheet | Buy Online |
| 480V 3 Phase | 240V/415V | 700kVA | 145 to 168 | RPS-CHM-480-700-84 | View Spec Sheet | Buy Online |
| 480V 3 Phase | 240V/415V | 800kVA | 169 to 192 | RPS-CHM-480-800-84 | View Spec Sheet | Buy Online |
| 208V 3 Phase | 240V/415V | 100kVA | 1 to 24 | RPS-CHM-208-100-84 | View Spec Sheet | Buy Online |
| 208V 3 Phase | 240V/415V | 200kVA | 25 to 48 | RPS-CHM-208-200-84 | View Spec Sheet | Buy Online |
| 208V 3 Phase | 240V/415V | 300kVA | 49 to 72 | RPS-CHM-208-300-84 | View Spec Sheet | Buy Online |
| 208V 3 Phase | 240V/415V | 400kVA | 73 to 96 | RPS-CHM-208-400-84 | View Spec Sheet | Buy Online |
| 208V 3 Phase | 240V/415V | 500kVA | 97 to 120 | RPS-CHM-208-500-84 | View Spec Sheet | Buy Online |
| 208V 3 Phase | 240V/415V | 600kVA | 121 to 144 | RPS-CHM-208-600-84 | View Spec Sheet | Buy Online |
| 208V 3 Phase | 240V/415V | 700kVA | 145 to 168 | RPS-CHM-208-700-84 | View Spec Sheet | Buy Online |
| 208V 3 Phase | 240V/415V | 800kVA | 169 to 192 | RPS-CHM-208-800-84 | View Spec Sheet | Buy Online |
| 600V 3 Phase | 240V/415V | 100kVA | 1 to 24 | RPS-CHM-600-100-84 | View Spec Sheet | Buy Online |
| 600V 3 Phase | 240V/415V | 200kVA | 25 to 48 | RPS-CHM-600-200-84 | View Spec Sheet | Buy Online |
| 600V 3 Phase | 240V/415V | 300kVA | 49 to 72 | RPS-CHM-600-300-84 | View Spec Sheet | Buy Online |
| 600V 3 Phase | 240V/415V | 400kVA | 73 to 96 | RPS-CHM-600-400-84 | View Spec Sheet | Buy Online |
| 600V 3 Phase | 240V/415V | 500kVA | 97 to 120 | RPS-CHM-600-500-84 | View Spec Sheet | Buy Online |
| 600V 3 Phase | 240V/415V | 600kVA | 121 to 144 | RPS-CHM-600-600-84 | View Spec Sheet | Buy Online |
| 600V 3 Phase | 240V/415V | 700kVA | 145 to 168 | RPS-CHM-600-700-84 | View Spec Sheet | Buy Online |
| 600V 3 Phase | 240V/415V | 800kVA | 169 to 192 | RPS-CHM-600-800-84 | View Spec Sheet | Buy Online |
